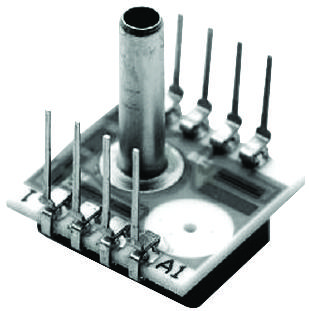

AMPHENOL ADVANCED SENSORS NPC1220005G3S Pressure Sensor
The NPC-1220 Series is a cost-effective, solid-state pressure sensor employing silicon micromachining techniques with piezoresistive strain gauges integrated into a Wheatstone bridge. Designed for wide temperature performance, it features a PCB mountable dual-in-line package, optional pressure ports, and interchangeable units suitable for gauge, absolute, and differential pressure applications from 5 psi to 100 psi. With high accuracy, stable output, and environmental robustness, it is ideal for industrial automation, process control, medical devices, and leak detection systems, providing reliable and precise pressure measurements in demanding environments.
AMPHENOL ADVANCED SENSORS NPC1220005G3S Pressure Sensor Specifications:
- Pressure Ranges: 5, 15, 30, 50, 100 psi (0.34 to 6.89 bar)
- Operating Temperature: -40°F to 257°F (-40°C to 125°C)
- Storage Temperature: -67°F to 302°F (-55°C to 150°C)
- Output Voltage: 50 mV full scale, zero output -2 to -2 mV
- Linearity: ±0.1% FS
- Temperature Compensation Range: 32°F to 140°F (0°C to 60°C)
- Fill Material: Silicone micromachined sensors with piezoresistive strain gauges
- Electrical Impedance: Input 2500Ω, Output 4000Ω to 6000Ω
- Dimensions: Diameter 0.167 in (4.2mm), Length options for pressure ports
- Package: Dual-in-line PCB mount with optional pressure ports, lead configurations Up or Down, and pressure ranges in gauge, absolute, and differential types
Buy the Buy Amphenol Pressure Sensor Part Number NPC1220005G3S Online
Order the Amphenol NPC-1220 pressure sensor online today for precise, stable pressure measurements across a wide temperature range. Perfect for industrial automation, process control, medical devices, and leak detection systems, this robust sensor offers high accuracy, interchangeability, and reliable performance in demanding environments. Its PCB mountable design with optional ports and diverse pressure ranges makes it suitable for gauge, absolute, and differential applications. Ensure your measurement needs are met with a resilient, easy-to-install solution that guarantees long-term accuracy and stability.
Get Amphenol Pressure Sensor NPC1220005G3S today—designed for precise, reliable pressure measurement in industrial automation and medical equipment.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS NPC1220005G3S?
You can click on the BUY or RFQ button to purchase NPC1220005G3S from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part NPC1220005G3S?
You can download the NPC1220005G3S datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of NPC1220005G3S?
AMPHENOL ADVANCED SENSORS
