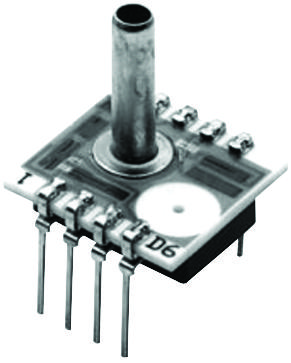

AMPHENOL ADVANCED SENSORS NPC1210005G3S Pressure Sensor
The NPC-1210 series of solid-state pressure sensors from NovaSensor offers high sensitivity and accuracy for industrial automation, process control, medical equipment, and leak detection. Packaged for PCB mountability, these sensors feature advanced SenStable® piezoresistive ground technology with excellent temperature compensation from 0°C to 60°C (32°F to 140°F). They are available in various pressure ranges, including gauge, differential, and absolute types, suitable for low and medium pressure applications. Their compact dual-in-line design and optional pressure ports provide flexibility for diverse engineering solutions and reliable performance across a wide temperature span.
AMPHENOL ADVANCED SENSORS NPC1210005G3S Pressure Sensor Specifications:
- Pressure Ranges: 5 psi (0.34 bar), 15 psi (1.0 bar), 30 psi (2.1 bar), 50 psi (3.4 bar), 100 psi (6.9 bar), 10 in H₂0 (25 mbar), 1 psi (69 mbar)
- Operating Temperature: -40°C to 125°C (-40°F to 257°F)
- Compensated Temperature Range: 0 to 60°C (32°F to 140°F)
- Storage Temperature: -85°C to 150°C (67°F to 302°F)
- Weight: approximately 0.005 lbs (2.3 grams)
- Materials: Pyrex, ceramic, silicon, epoxy, RTV, stainless steel
- Dimensions: Diameter 0.37 in (9.4 mm); length options available; tube length 0.49 in (12 mm)
- Electrical Output: mV signals calibrated for pressure ranges, linearly proportional to applied pressure
- Input Excitation: 15 mA (standard), 20 mA optional
- Maximum Overload: up to 3X for gauge/differential, 8X for absolute
- Sealed and robust for industrial environments, with interchangeable components
- Calibration methods include applying pressure to positive differential port or vacuum via port
- Configurations: Up or Down lead orientations, long or short tube options
Buy the Buy NovaSensor Pressure Sensor Part Number NPC1210005G3S Online
Purchase the NovaSensor NPC1210005G3S pressure sensor online today and experience reliable, high-accuracy performance for a wide range of industrial and medical applications. This durable, PCB-compatible sensor offers excellent thermal compensation, multiple pressure range options, and robust construction suitable for demanding environments. Simplify your procurement process by ordering directly from authorized distributors and enjoy prompt delivery, technical support, and assurance of genuine, high-quality sensors that meet your engineering needs.
Order your NovaSensor Series NPC1210005G3S pressure sensor today and ensure precise measurement for your industrial, medical, or leak detection projects.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS NPC1210005G3S?
You can click on the BUY or RFQ button to purchase NPC1210005G3S from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part NPC1210005G3S?
You can download the NPC1210005G3S datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of NPC1210005G3S?
AMPHENOL ADVANCED SENSORS
