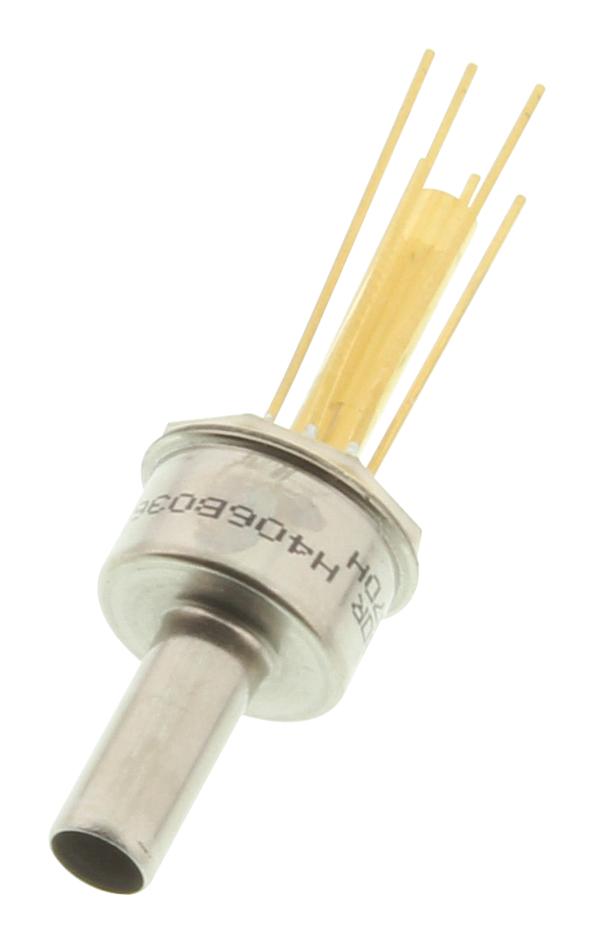

AMPHENOL ADVANCED SENSORS NPH8007DH Silicon Pressure Sensor
The NPH Series solid state pressure sensors from Amphenol Advanced Sensors feature high reliability and small size, housed in a standard TO-8 package suitable for PC board mounting. They are compatible with non-corrosive gases and dry air, offering gauge, absolute, and differential pressure versions with ranges of 15, 30, and 100 psi. Employing micromachined silicon diaphragms and SenStable technology, these sensors provide excellent stability, low hysteresis, and thermal accuracy. Ideal for process control, aerospace, biomedical, HVAC, and computer peripherals, they deliver precise, linear voltage output proportional to pressure, with overpressure capability up to five times rated pressure.
AMPHENOL ADVANCED SENSORS NPH8007DH Silicon Pressure Sensor Specifications:
- Pressure Range: 15, 30, 100 psi (1, 2, 7 bar)
- Output Voltage: Typical 100 mV @ 1.5 mA excitation
- Linearity: 0.05% FSO typical
- Hysteresis: 0.05% FSO
- Thermal Accuracy: 0.4% typical
- Overpressure Capability: Up to 5x rated pressure
- Operating Temperature Range: -40°C to +125°C
- Electrical Input: 15 mA maximum, insulation resistance 10⁸Ω @ 50V
- Pressure Port: Standard 3/16 in OD, nickel or gold plated Kovar
- Media Compatibility: Non-corrosive gases and dry air
- Physical Dimensions: TO-8 package, with silicon sensor chip, ceramic substrate, size approx 20.445 mm length
- Wetted Materials: Nickel, gold plated Kovar, silicon, glass, RTV, silicone gel
- Certifications: Designed for aerospace, industrial, biomedical, and HVAC uses
Buy the Buy Amphenol Pressure Sensor Part Number NPH8007DH Online
Order the Amphenol NPH8007DH silicon pressure sensor online today to ensure precise pressure monitoring in aerospace, biomedical, and industrial systems. Featuring solid state construction, high stability, and multiple pressure ranges, this compact sensor offers excellent linearity, thermal accuracy, and overpressure protection. Its compatibility with non-corrosive gases and dry air, combined with a standard TO-8 package, makes it ideal for process control, HVAC, and aerospace applications. Make your purchase now and enjoy dependable, high-performance pressure measurement anywhere you need it.
Buy Amphenol NPH8007DH now and experience unmatched reliability and precision in pressure measurement for industrial and aerospace applications.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS NPH8007DH?
You can click on the BUY or RFQ button to purchase NPH8007DH from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part NPH8007DH?
You can download the NPH8007DH datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of NPH8007DH?
AMPHENOL ADVANCED SENSORS
