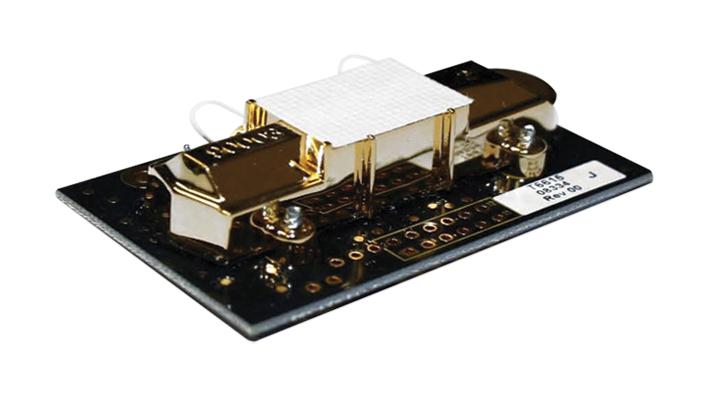

AMPHENOL ADVANCED SENSORS T6615 Dual-Channel CO2 Sensor
The T6615 dual-channel CO2 sensor by Telaire is engineered for OEM applications requiring precise and dependable gas measurement. It features a CO2 sensing channel and a reference channel that monitors sensor signal stability, performing automatic self-calibrations approximately every 24 hours. During calibration, measurements are frozen, with calibration time around two minutes. Its optical system supports a three-point calibration process, ensuring high stability and accuracy over a 10-year lifespan. Designed for environments unsuitable for ABC Logic, the T6615 is ideal for sensing, air quality, and instrumentation where accurate CO2 detection is crucial.
AMPHENOL ADVANCED SENSORS T6615 Dual-Channel CO2 Sensor Specifications:
- Method: Dual-channel Non Dispersive Infrared (NDIR), gold plated optics, diffusion or flow through sampling.
- Measurement Range: 0 to 2000 ppm, 0 to 5000 ppm, 0 to 10,000 ppm, 0 to 50,000 ppm
- Dimensions: 2.25 in x 1.365 in x 0.60 in (57.15 mm x 34.67 mm x 15.24 mm)
- Accuracy: 75 ppm or 10% of reading, whichever is greater
- Temperature Dependence: 0.2% FS per °C
- Stability over 10 years: < 5% of FS or < 10% reading annually
- Pressure Dependence: 0.135% of reading per mm Hg
- Response Time: <2 minutes for 90% step change
- Warm Up Time: <2 minutes (operational), 10 minutes (max accuracy)
- Operating Conditions: 32°F to 122°F (0°C to 50°C), 0 to 95% RH non-condensing
- Storage Conditions: -40°F to 158°F (-40°C to 60°C)
- Output: Digital UART @ 19200 Baud, Analog 0-4VDC
- Power Requirements: 5 VDC regulated (+5%)
- Power Consumption: Peak 0.90W, Avg 0.165W
- Interface: 12 pin header, 0.1 in spacing
- Flow Rate: 50 cc/min (flow through), 80-120 cc/min (diffusion)
- Warranty: 12 months
- Calibration: Field calibration possible, self-calibration every 24 hours, manual calibration recommended
Buy the Buy Amphenol Sensors T6615 Part Number T6615 Online
Order the Amphenol T6615 dual-channel CO2 sensor today online and benefit from a highly accurate, stable, and compact gas measurement solution. Designed for OEM applications, it features automatic self-calibration, an optical three-point calibration system, and reliable operation over a ten-year lifespan. Whether used for air quality monitoring or instrumentation, this sensor delivers consistent precision. Easy to deploy in environments where ABC Logic isn't suitable, ensuring your industrial or environmental monitoring needs are seamlessly met with this advanced, easy-to-integrate module.
Buy Amphenol T6615 sensor now and experience unmatched reliability and precision for your gas sensing applications.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS T6615?
You can click on the BUY or RFQ button to purchase T6615 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part T6615?
You can download the T6615 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of T6615?
AMPHENOL ADVANCED SENSORS
