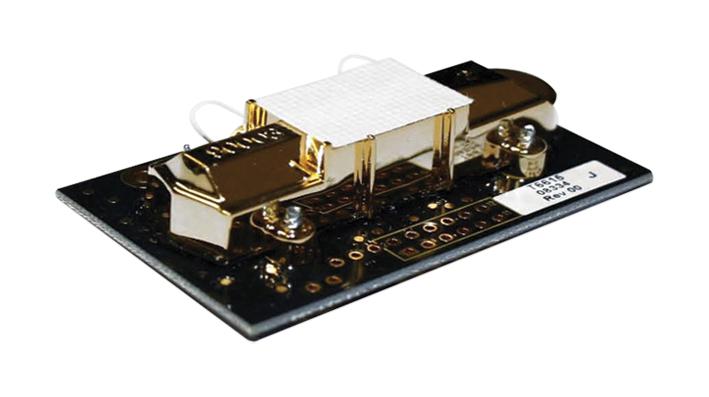

AMPHENOL ADVANCED SENSORS T66155K CO2 Sensor
The T6615-5K dual-channel CO2 sensor features diffusion-based measurement with periodic self-calibration every 24 hours, ensuring high accuracy and stability. It measures from 0 to 5000 ppm with an accuracy of 75 ppm or 10% of reading. The sensor includes a reference channel that adjusts for electrical and mechanical variations, enhancing long-term reliability. Supports digital UART communication at 19200 baud and analog 0-4V output, designed for easy integration into control systems. Its compact size and field calibration capability make it suitable for sensing, instrumentation, and industrial applications.
AMPHENOL ADVANCED SENSORS T66155K CO2 Sensor Specifications:
- Measurement Range: 0 to 5000 ppm
- Accuracy: 75 ppm or 10% of reading
- Method: Dual-channel Non Dispersive Infrared (NDIR), gold plated optics
- Dimensions: 2.25 in X 1.365 in X 0.60 in (57.15 mm X 34.67 mm X 15.24 mm)
- Response Time: <2 minutes for 90% step change
- Warm Up Time: <2 minutes (operational), 10 minutes (max accuracy)
- Operating Conditions: 32°F to 122°F (0°C to 50°C), 0-95% RH non condensing
- Storage Conditions: -40°F to 158°F (-40°C to 60°C)
- Power Supply: 5 VDC regulated (+5%)
- Power Consumption: Peak 0.90 W, Avg 0.165 W
- Interface: Digital UART @ 19200 Baud, Analog 0-4VDC
- Flow Rate: Flow through version 50 cc/min, diffusion version 80-120 cc/min
- Warranty: 12 months
- Calibration: Performed every 24 hours, field calibration available
- Sensor Housing: Compact, designed for OEM integration
Buy the Amphenol Series T6615 CO2 Sensor: T66155K
Purchase the Amphenol T6615-5K CO2 sensor online today to benefit from reliable dual-channel measurement technology, easy field calibration, and versatile outputs. Perfect for industrial monitoring, instrumentation, and environmental sensing, this compact sensor ensures accurate readings up to 5000 ppm, with periodic self-calibration for long-term stability. Its digital UART and analog outputs allow seamless integration into various control systems. With a 12-month warranty and straightforward installation, this sensor is the ideal choice for professionals requiring dependable, high-precision gas sensing solutions.
Order your Amphenol Series T6615 CO2 sensor today and enhance your sensing applications with dependable accuracy and easy integration.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS T66155K?
You can click on the BUY or RFQ button to purchase T66155K from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part T66155K?
You can download the T66155K datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of T66155K?
AMPHENOL ADVANCED SENSORS
