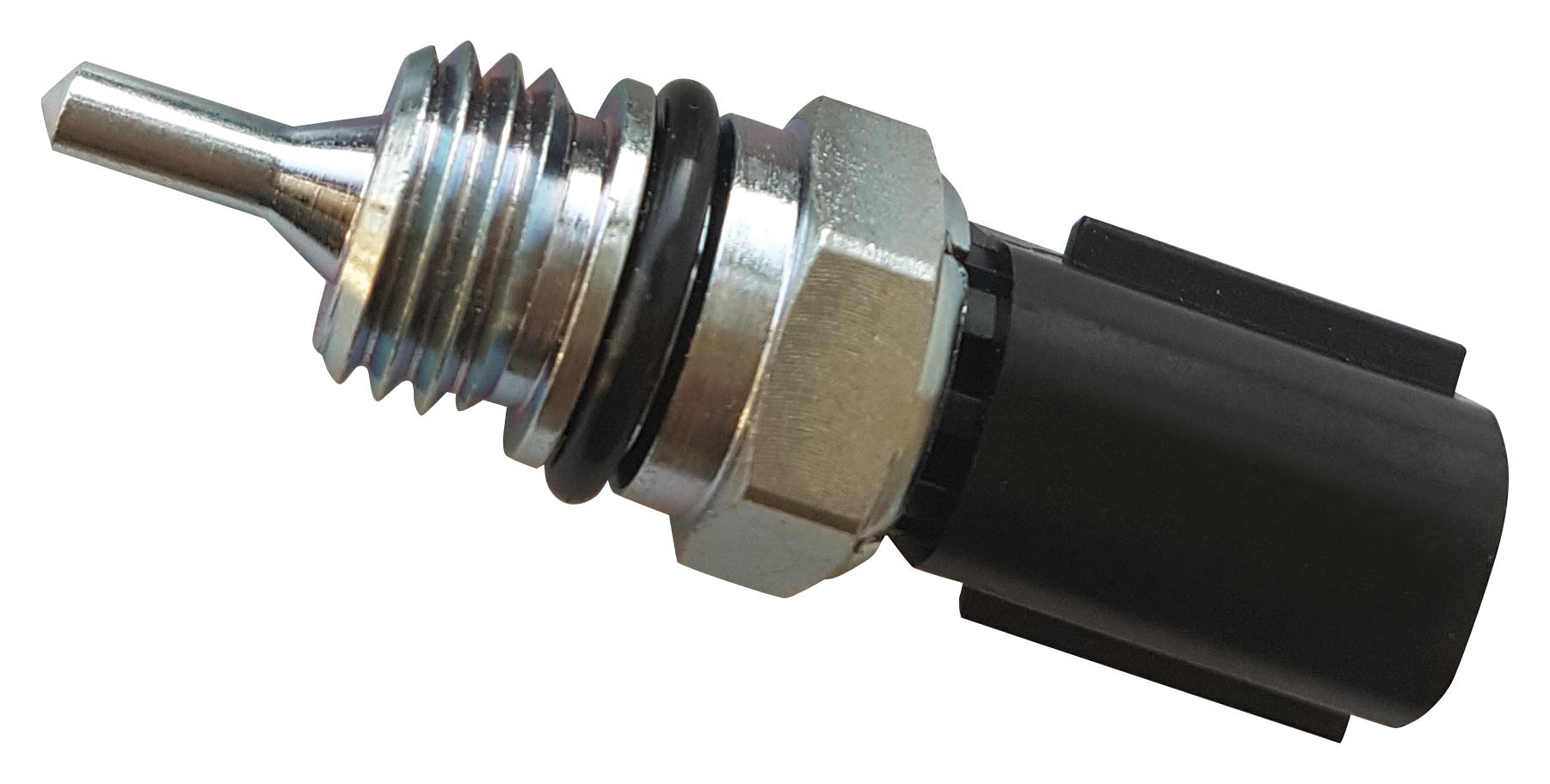

AMPHENOL ADVANCED SENSORS WTF0803B001 Coolant Temperature Sensor
The Coolant Temperature Sensor monitors the coolant temperature in EV and PHEV battery systems, relaying data to the Battery Management System to prevent overheating. It features a compact design with an integral connector, suitable for HVAC refrigerant lines and battery cooling applications. Made from PBT-GF15, with a USCAR sealed connector, it withstands temperature ranges from -40°C to 100°C and storage up to 125°C. The sensor offers quick response times of 5 seconds and high accuracy at ±0.3°C. Its robust steel housing and zinc plating ensure durability and reliable operation in demanding environments.
AMPHENOL ADVANCED SENSORS WTF0803B001 Coolant Temperature Sensor Specifications:
- Operating Temperature Range: -40°C to 100°C
- Storage Temperature Range: -40°C to 125°C
- Housing Material: PBT-GF15
- Connector: USCAR 064 Sealed, mating connector USCAR 3140x-2110
- Response Time: 5 seconds from 25°C to 85°C in water
- Temperature Accuracy: ±0.3°C at 25°C
- Beta (25/85)° C: 3975K +0.75%
- Material: Machined 12L14 Steel, Zinc trivalent chromium plating
- Dimensions: Diameter approximately 14mm, hex size 14mm
- Resistance Range at 110°C: 28280 ± 1.3%
Buy the Amphenol WTF0803B001 – Reliable Coolant Temperature Sensor for Industrial Applications
Enhance your EV or PHEV cooling system with this high-accuracy coolant temperature sensor. Designed for durability and quick response, it helps prevent battery overheating by accurately relaying temperature data to the Battery Management System. Built with robust materials including a zinc-plated steel housing and sealed USCAR connector, it ensures reliable operation in extreme conditions. Its compact size and universal compatibility make installation straightforward, supporting optimal battery performance and longevity. Invest in this dependable sensor to maintain safe and efficient thermal regulation in electric vehicles.
Buy Amphenol WTF0803B001 now and experience unmatched reliability and precision in EV battery cooling systems.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS WTF0803B001?
You can click on the BUY or RFQ button to purchase WTF0803B001 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part WTF0803B001?
You can download the WTF0803B001 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of WTF0803B001?
AMPHENOL ADVANCED SENSORS
