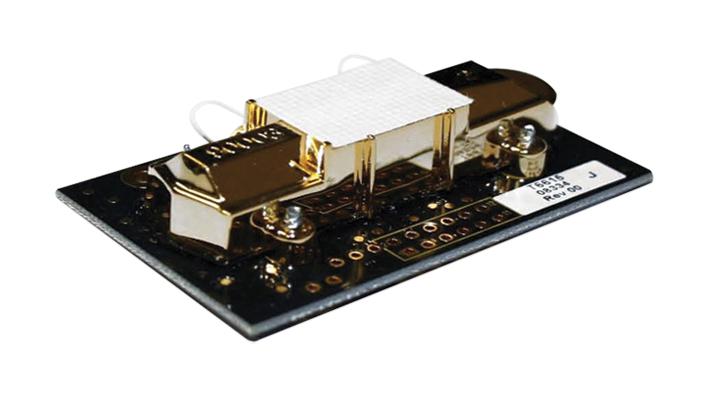

AMPHENOL ADVANCED SENSORS T6615F Dual-Channel CO2 Sensor
The T6615 Series Telaire dual-channel CO2 module features a dual optical system with a CO2 measurement and a reference channel, offering high stability and accuracy through a three-point calibration process. It performs automatic self-calibrations every 24 hours or on command, ensuring consistent reliability. The sensor employs non-dispersive infrared (NDIR) technology with gold-plated optics, suitable for various integration environments in sensing and instrumentation applications. Designed for ease of calibration and field adjustments, it delivers accurate measurements up to 50,000 ppm, making it a versatile choice for OEM and control systems.
AMPHENOL ADVANCED SENSORS T6615F Dual-Channel CO2 Sensor Specifications:
- Method: Dual-channel Non Dispersive Infrared (NDIR), gold-plated optics, diffusion or flow through sampling
- Measurement Range: Oto 2000 ppm, Oto 5000 ppm, Oto 10,000 ppm, Oto 50,000 ppm
- Dimensions: 2.25 in x 1.365 in x 0.60 in (57.15 mm x 34.67 mm x 15.24 mm)
- Accuracy: 75 ppm or 10% of reading (whichever is greater)
- Temperature Dependence: 0.2% FS per °C
- Stability over Life of Sensor: < 5% of FS or < 10% reading annually
- Pressure Dependence: 0.135% of reading per mm Hg
- Response Time: < 2 minutes for 90% step change typical
- Warm Up Time: < 2 minutes (operational), 10 minutes (maximum accuracy)
- Operating Conditions: 32°F to 122°F (0°C to 50°C), 0 to 95% RH non-condensing
- Storage Conditions: -40°F to 158°F (-40°C to 60°C)
- Output: Digital UART @ 19200 Baud, Analog 0 to 4VDC
- Power Supply: 5 VDC regulated (+5%)
- Power Consumption: 0.90 watts peak, 0.165 watts average
- Interface: 12 pin header with 0.1 in (2.54 mm) spacing
- Flow Rate (via ports): Flow through max 50 cc/min, diffusion 80-120 cc/min
- Warranty: 12 months
- Self-calibration: Approximately every 24 hours, adjustable, performed via command
Buy the Telaire Series T6615 CO2 Sensor: T6615F
Enhance your sensing system with the Telaire T6615F dual-channel CO2 sensor, offering high stability, automatic self-calibration, and reliable measurement up to 50,000 ppm. Its NDIR technology ensures accuracy and durability, making it ideal for OEM integration and environmental monitoring. Designed for easy calibration and adaptation to various environments, this sensor delivers fast response times and long-term stability, providing precise data for your control systems. Purchase online now to benefit from quality, reliability, and ease of use in your projects.
Buy Telaire T6615F dual-channel CO2 sensor now and experience accurate, stable measurements and reliable performance for your sensing applications.
