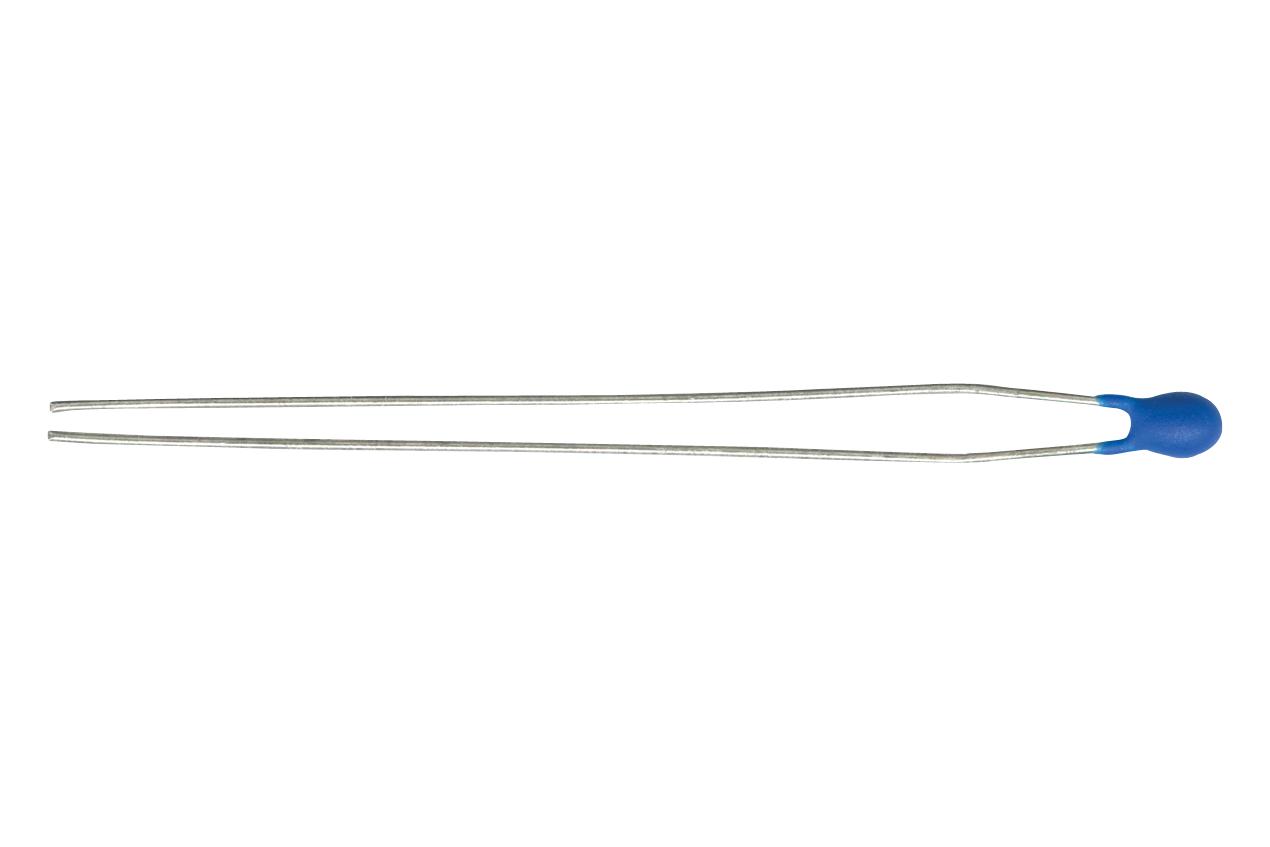

AMPHENOL ADVANCED SENSORS NK123C5R2 NTC Thermistor
The NTC thermistor is a compact epoxy-coated chip with solder-coated wires, designed for precise temperature measurement, control, and compensation in automotive, HVAC, and white goods applications. It operates up to 311°F (155°C), offering fast response, excellent stability, and tight resistance tolerances. Available in bandolier packaging with resistance values within a wide range, it features a small body diameter, quick thermal response, and RoHS compliance, making it ideal for various electronic and industrial temperature sensing needs.
AMPHENOL ADVANCED SENSORS NK123C5R2 NTC Thermistor Specifications:
- Maximum operating temperature: 311°F (155°C)
- Minimum operating temperature: -40°F (-40°C)
- Thermal time constant: 2.45 seconds (ambient change), 15 seconds (cooling)
- Dissipation factor: 2.2 mW/K
- Mass: 0.18 g
- Body diameter: 0.27 in (7 mm)
- Wire length options: 0.47 to 1.57 inches (12 to 40 mm)
- Resistance tolerance: ±1%
- Resistance range: within specific categories (e.g., 500Ω, 1000Ω, 2200Ω, etc.)
- RoHS compliant and epoxy resin coating
- Replaces loose or bandoliered packaging
- Suitable for temperature control, electronic measurement, and environmental sensing
- Reference temperature: 77°F (25°C)
Buy the Buy Thermometrics NTC Thermistor Part Number NK123C5R2 Online
Purchase the Thermometrics NTC Thermistor NK123C5R2 online today to benefit from excellent temperature sensing accuracy, quick thermal response, and stable operation up to 311°F. Its epoxy coating and soldered wires make installation easy, while compact size ensures versatility in various electronic devices. Ideal for automotive temperature control, HVAC systems, and white goods, this thermistor guarantees reliable performance in demanding environments. Order now to enhance your temperature measurement solutions with proven durability and compliance with RoHS standards, ensuring safety and environmental friendliness.
Buy Thermometrics NK123C5R2 now and ensure accurate temperature measurement with fast response and reliable stability for your industrial and electronic applications.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS NK123C5R2?
You can click on the BUY or RFQ button to purchase NK123C5R2 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part NK123C5R2?
You can download the NK123C5R2 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of NK123C5R2?
AMPHENOL ADVANCED SENSORS
