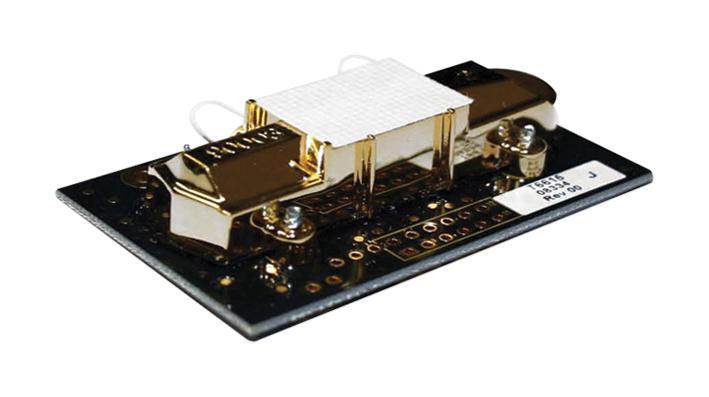

AMPHENOL ADVANCED SENSORS T6615R12 CO Sensor Module
The GE Telaire T6615 sensor module is a dual-channel NDIR IR sensor designed for accurate CO gas detection. It features a compact size with dimensions of 2.25 inches by 1.365 inches by 0.60 inches, suitable for OEM integration. With measurement ranges from 0 to 50,000 ppm, it offers high accuracy of 75 ppm or 10% of reading. The sensor supports digital UART and analog outputs, operates on 5 VDC, and has a response time of under 2 minutes. It ensures stability over 10 years through periodic self-calibration, making it ideal for HVAC, air quality monitoring, and industrial safety applications.
AMPHENOL ADVANCED SENSORS T6615R12 CO Sensor Module Specifications:
- Method: Dual-channel Non Dispersive Infrared (NDIR), gold plated optics, diffusion or flow through sampling
- Measurement Range: 0 to 50,000 ppm
- Dimensions: 2.25 in x 1.365 in x 0.60 in
- Accuracy: 75 ppm or 10% of reading (whichever is greater)
- Temperature Dependence: 0.2% FS per °C
- Stability: <5% FS over 10 years
- Pressure Dependence: 0.135% of reading per mm Hg
- Response Time: <2 minutes for 90% step change
- Warm Up Time: <2 minutes (operational), 10 minutes (max accuracy)
- Operating Conditions: 32°F to 122°F (0°C to 50°C), 0-95% RH non-condensing
- Storage Conditions: -40°F to 158°F (-40°C to 60°C)
- Outputs: Digital UART @ 19200 baud, 0-4V analog
- Power Supply: 5 VDC regulated (+5%)
- Power Consumption: Peak 0.90W, average 0.165W
- Interface: 12-pin header, flow rates: 50 cc/min (flow through), 80-120 cc/min (diffusion)
- Warranty: 12 months
Buy the GE Series T6615 CO Sensor Module: T6615R12
Purchase the GE T6615 series CO sensor module online today to improve your environmental monitoring systems. Its dual-channel design ensures precise detection of CO concentrations from 0 to 50,000 ppm, making it ideal for industrial safety, HVAC, and air quality control. The compact form factor allows easy integration into existing equipment, while its stability over 10 years and self-calibration features guarantee long-term accurate performance. Whether for OEM manufacturing or retrofit projects, this sensor provides dependable, real-time CO measurement in diverse applications.
Order your GE Series T6615R12 CO sensor module today and enhance your air quality monitoring with reliable, high-accuracy detection.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS T6615R12?
You can click on the BUY or RFQ button to purchase T6615R12 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part T6615R12?
You can download the T6615R12 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of T6615R12?
AMPHENOL ADVANCED SENSORS
