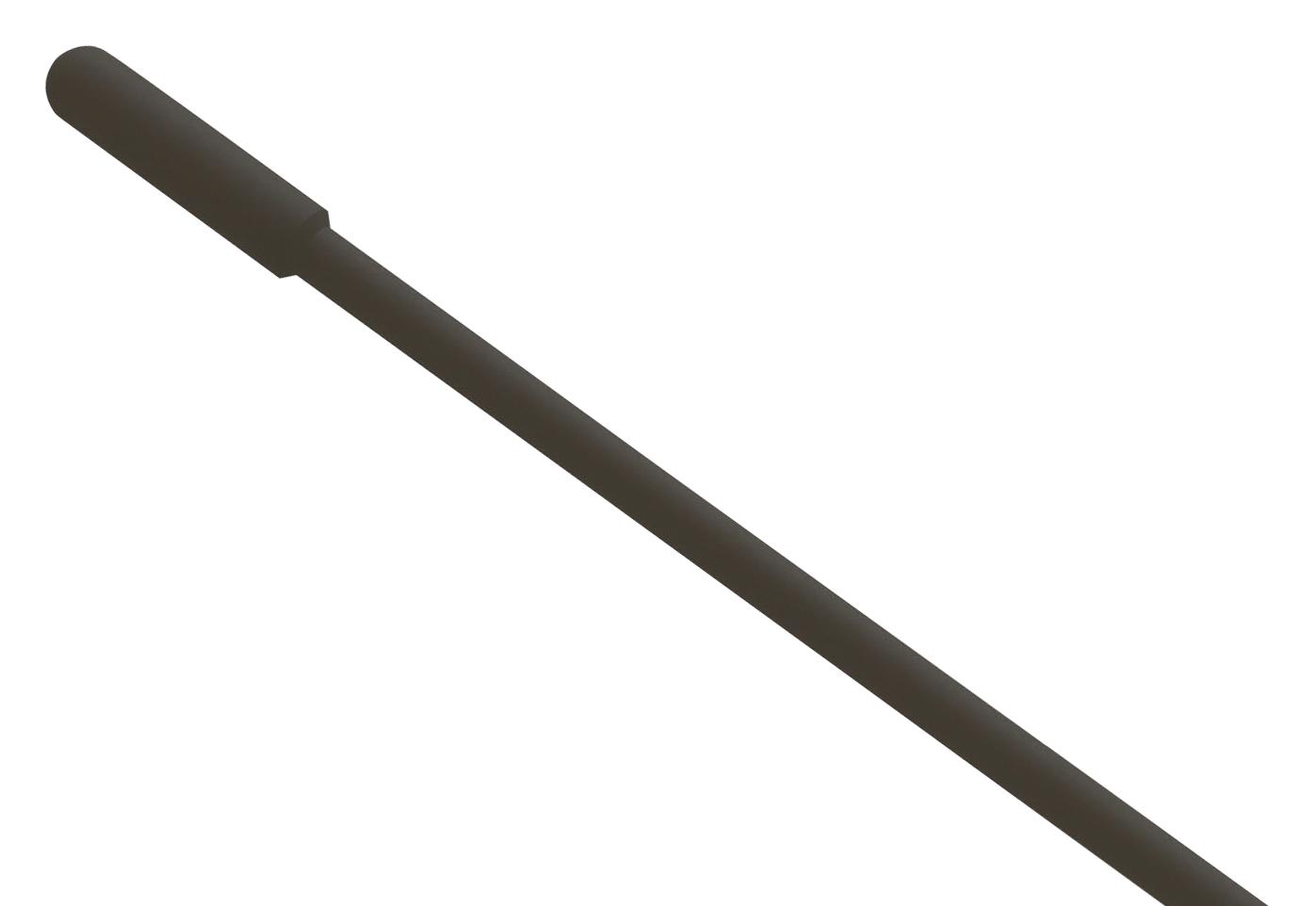

AMPHENOL ADVANCED SENSORS JI103C1R2L301 Waterproof Temperature Sensor
The waterproof temperature sensors are designed with NTC thermistors and flexible cables, suitable for outdoor and industrial applications. The JI version features a rubber tip and thermoplastic elastomer rubber insulation, providing IP68 waterproof protection and resistance to freeze/thaw cycles. The JIC model has stainless steel housing with thermoplastic elastomer rubber for outdoor temperature measurement, refrigeration, and weather stations. These sensors are available in various wire lengths up to 5000mm, are RoHS compliant, and feature durable construction for accurate, long-term temperature sensing in diverse environments.
AMPHENOL ADVANCED SENSORS JI103C1R2L301 Waterproof Temperature Sensor Specifications:
- Temperature range: -50°C to +105°C
- Insulation Resistance: >100MQ at 1000V DC
- Cable Type: Rubber insulated, stainless steel housing option
- Wire Lengths: 300mm, 1000mm, 2500mm, custom lengths available
- Wire Conductors: 2x0.30mm² (23 AWG), 7x0.23mm diameter
- Resistance (25°C): 10kΩ ±2%
- B Value 25/85°C: 3977K ±0.75%
- Dielectric Strength: 3750V AC
- Material: Rubber tip or stainless steel housing
- Environmental Resistance: Freeze/thaw cycles, waterproof IP68
- RoHS compliant
- Dimensions: L301 (300mm), L102 (1000mm), L252 (2500mm), other lengths available for large quantities
Buy the Buy Thermetrics Waterproof Temperature Sensor Part Number JI103C1R2L301 Online
Secure your outdoor and industrial temperature measurement needs by ordering the Thermetrics Waterproof Temperature Sensor JI103C1R2L301 online. Designed with robust materials, IP68 waterproof rating, and flexible cables, these NTC thermistor sensors deliver precise readings in harsh environments. Available in multiple wire lengths up to 5000mm, they suit refrigeration, weather stations, and outdoor heating systems. Easy to install, durable, and compliant with RoHS standards, these sensors ensure long-lasting performance and reliable temperature monitoring in your projects. Purchase now for fast and dependable delivery.
Order your Thermetrics Waterproof Temperature Sensor JI103C1R2L301 today and experience reliable outdoor temperature measurement for industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS JI103C1R2L301?
You can click on the BUY or RFQ button to purchase JI103C1R2L301 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part JI103C1R2L301?
You can download the JI103C1R2L301 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of JI103C1R2L301?
AMPHENOL ADVANCED SENSORS
