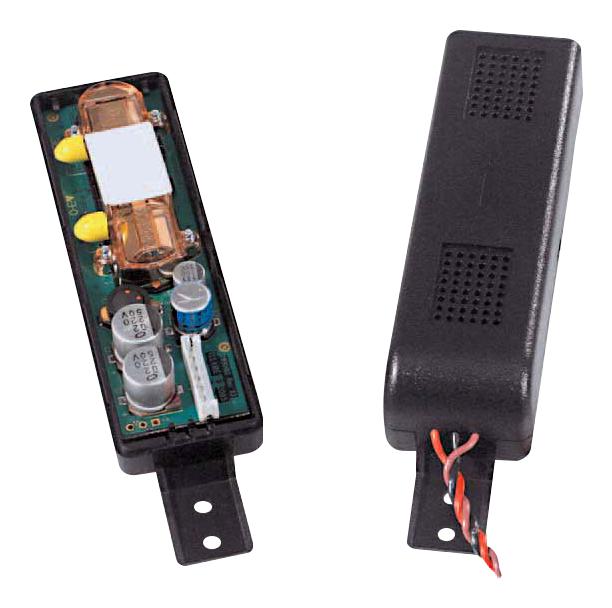

AMPHENOL ADVANCED SENSORS T80311M CO2 Duct Sensor
The Telaire Ventostat T8031 CO2 duct mount transmitter is a compact, highly accurate sensor designed for indoor air quality monitoring in HVAC systems. It features Telaire’s patented ABC Logic self-calibration technology, eliminating manual calibration needs, and offers a simple installation process suitable for ducts smaller than 6 inches in diameter. With a measurement range of 0-2000 ppm, it employs infrared sensing for high precision, and its low-profile design is ideal for OEM applications. The device ensures reliable operation with low power consumption and long-term calibration stability, making it perfect for demand-controlled ventilation and energy-efficient building management.
AMPHENOL ADVANCED SENSORS T80311M CO2 Duct Sensor Specifications:
- Measurement Range: 0-2000 ppm
- Accuracy: +40 ppm +3% of reading @ 22°C
- Non-linearity: <1% of full scale @ 22°C
- Pressure Dependence: 0.13% of reading per mm Hg
- Response Time: 3 minutes for 90% step change at low duct speeds
- Temperature Range: 0°C to 50°C
- Humidity Range: 0-95% RH, non-condensing
- Dimensions: Length 3.83 in, Width 1.17 in, Height 0.94 in
- Power Supply: 18-30 VAC or 18-42 VDC
- Analog Output: 0-10 VDC
- Operating Conditions: -20°C to 70°C storage, 0°C to 50°C operation
- Certifications: RoHS, FCC Part 15, CE EMC
- Enclosure: UL94V-5 flammability rated
- Water-resistant diffusion filter included
- Lifetime calibration guarantee with self-correcting ABC Logic software
Buy the Buy Amphenol Advanced Sensors CO Transmitter Part Number T8031 Online
Purchase the Amphenol T8031 CO2 duct mount transmitter online to ensure reliable indoor air quality monitoring in HVAC systems. This compact, high-accuracy sensor features Telaire’s patented ABC Logic self-calibration technology, eliminating manual calibration and reducing maintenance costs. Its easy installation in small ducts makes it ideal for OEM applications aiming for demand-controlled ventilation, energy savings, and improved air quality. Trust this durable device for long-term, precise CO2 measurement, compatible with 0-10 V outputs, ensuring optimal building environment management.
Get Amphenol T8031 CO2 Duct Transmitter today—precision monitored, self-calibrating sensor ideal for energy-efficient building control solutions.
