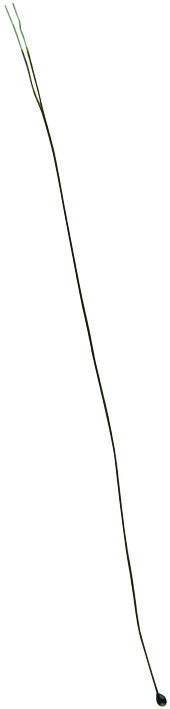

AMPHENOL ADVANCED SENSORS MC65F103A NTC Thermistor
The MC65F103A is a high-precision epoxy-coated NTC thermistor with heavy-insulation nickel lead wires, offering excellent resistance versus temperature stability. Designed for medical, industrial, and control applications, it provides superior reliability and stability, with tight tolerances suitable for clinical range measurements. Operating from -40°F to 221°F, it features accuracy as precise as ±0.09°F, high sensitivity above -4%/°C at 77°F, and resistance values ranging up to 100 kΩ. Its resin coating ensures mechanical strength and solvent resistance, making it ideal for temperature measurement, control, and compensation in demanding environments.
AMPHENOL ADVANCED SENSORS MC65F103A NTC Thermistor Specifications:
- Resistance range: 1000 Ω to 100 kΩ
- Maximum Power at 77°F (25°C): 25mW
- Dissipation Constant: Still air 0.5 mW/°C, Stirred oil 4 mW/°C
- Thermal Time Constant: Still air 8 seconds, Stirred oil 0.5 seconds
- Operation Temperature Range: -40°F to 221°F (-40°C to 105°C)
- Accuracy: ±0.09°F (±0.05°C) for MC65F103A
- Sensitivity: > -4%/°C at 77°F (25°C)
- Lead Wires: Heavy isomid insulated nickel lead wires, 0.004 in (0.10 mm) diameter
- Coating: Resin for MC65, solvent-resistant and mechanically durable
- Dimensions: Nominal 3 in (76.2 mm) length, 0.25 in (6.35 mm) diameter
- Resistance Tolerance: Typical ±0.10°C
- Compliance: RoHS if suffix 'N' is added
Buy the Thermometrics Series NTC Thermistor: MC65F103A
Order the Thermometrics MC65F103A now to benefit from high-precision temperature sensing with tight tolerances and excellent mechanical strength. This epoxy-coated, heavy-insulation nickel lead wire thermistor offers reliable performance from -40°F to 221°F, making it ideal for medical, industrial, and control applications. Its stability, high sensitivity, and durability ensure accurate temperature measurement, control, and compensation across various environments. Purchase online today for consistent, dependable temperature sensing with superior resistance to solvents and mechanical stresses.
Buy Thermometrics MC65F103A now and experience unmatched reliability and performance with high accuracy and stable temperature measurement ability.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS MC65F103A?
You can click on the BUY or RFQ button to purchase MC65F103A from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part MC65F103A?
You can download the MC65F103A datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of MC65F103A?
AMPHENOL ADVANCED SENSORS
