AMPHENOL ADVANCED SENSORS T80311M5V CO2 Duct Sensor

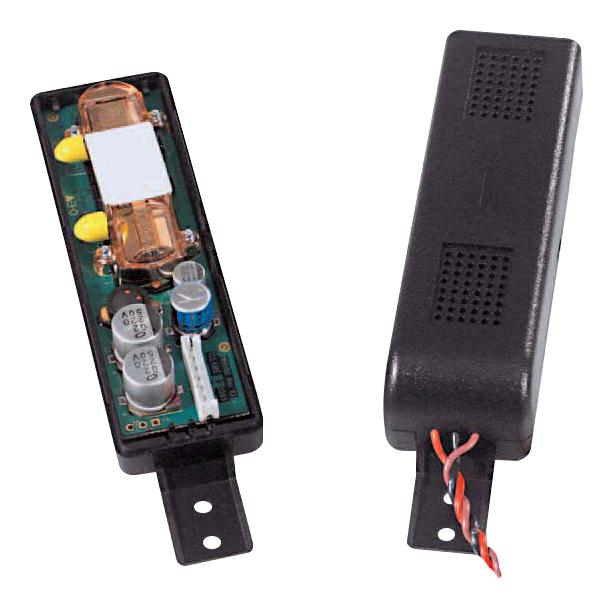

The Telaire Ventostat T8031 CO2 duct mount transmitter is a compact, high-accuracy sensor designed for HVAC duct applications. Featuring Telaire’s patented ABC Logic self-calibration technology, it requires no manual calibration and provides reliable 0-10 volt output for indoor air quality monitoring. Perfect for energy-efficient demand-controlled ventilation, it operates at 0-2000 ppm measurement range, with easy installation in ducts smaller than 6 inches (15.2 cm). The device’s water-resistant filter prevents contamination, ensuring long-term accuracy and minimal maintenance for building automation systems.
AMPHENOL ADVANCED SENSORS T80311M5V CO2 Duct Sensor Specifications:
- Measurement Range: 0-2000 ppm
- Air Velocity: 0 to 1500 ft/min (0-450 m/min)
- Temperature Dependence: 0.2% of full scale per °C
- Accuracy: ±40 ppm +3% of reading at 22°C
- Non-linearity: <1% of full scale at 22°C
- Pressure Dependence: 0.13% of reading per mm Hg
- Response Time: 3 minutes for 90% step change
- Warm-up Time: < 2 minutes; 10 minutes for full accuracy
- Operating Temperature: 0°C to 50°C
- Humidity Range: 0-95% RH, non-condensing
- Storage Temperature: -20°C to 70°C
- Power Supply: 18-30 VAC or 18-42 VDC
- Power Consumption: 0.65 to 1.65 watts
- Dimensions: Length 3.83 in + 0.74 in mounting tab, Width 1.17 in, Height 0.94 in
- Enclosure: UL94V-5 flammability rated
- Certifications: RoHS, FCC Part 15, CE EMC EN61000-6-2
Buy the Telaire Series Ventostat T8031 CO2 Duct Mount: T8031
Purchase the Telaire Ventostat T8031 CO2 duct sensor online today to enhance indoor air quality monitoring. Its compact design, self-calibration technology, and high accuracy make it ideal for HVAC systems in commercial buildings. Easy to install and built for long-term reliability, this sensor helps optimize ventilation strategies, saving energy while maintaining healthy indoor environments. Order now and ensure your building’s air quality meets safety standards with this innovative, maintenance-free CO2 sensor that guarantees precision and durability for over a decade.
Get Telaire Ventostat T8031 CO2 duct sensor today—optimized for HVAC systems and indoor air quality management.
