AMPHENOL ADVANCED SENSORS T6713 CO Sensor Module

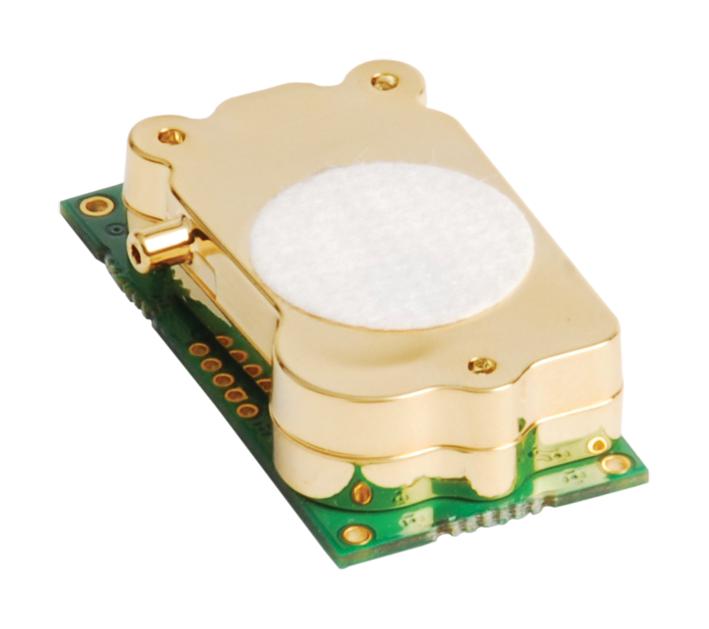

The Telaire T6713 CO Module is a compact, non-dispersive infrared (NDIR) sensor designed for high-accuracy CO level measurement up to 5000 ppm. It features Telaire’s patented ABC Logic self-calibration technology, eliminating the need for manual calibration in most environments, and offers a lifetime calibration warranty. With dimensions of 30mm x 15.6mm x 8.6mm, it operates over a temperature range of -10°C to 60°C and maintains stability over 15 years. Suitable for indoor air quality and demand control ventilation, its digital UART and PWM outputs ensure easy integration into OEM systems.
AMPHENOL ADVANCED SENSORS T6713 CO Sensor Module Specifications:
- Measurement Range: 0 to 5000 ppm
- Dimensions: 30mm x 15.6mm x 8.6mm
- Accuracy: ±30 ppm + 3% of reading from 400-5000 ppm, ±25 ppm + 3% of reading from 400-2000 ppm
- Temperature Dependence: 5 ppm/°C or 0.5%/°C
- Stability: < 2% of FS over 15 years
- Response Time: <3 minutes for 90% step change
- Power Supply: 4.5-5.5 VDC, Peak 200mA, Average 20-25mA
- Operating Conditions: -10°C to 60°C, 0-95% RH non-condensing
- Storage Conditions: -30°C to 70°C
- Outputs: UART @ 19200 Baud with Modbus, PWM
- Calibration: No user calibration needed, uses Telaire’s ABC Logic for self-calibration
- Warm Up Time: <2 minutes operational; 10 minutes for maximum accuracy
Buy the Telaire Series CO NDIR Module: T6713
Enhance your indoor air quality systems with the Telaire Series T6713 CO NDIR Module. This compact, high-precision sensor offers zero calibration in most environments, thanks to Telaire’s patented ABC Logic technology. Easy to integrate via UART and PWM outputs, it is suitable for demand control ventilation and continuous monitoring applications. With a lifetime calibration warranty and stability over 15 years, this durable module guarantees reliable CO measurement up to 5000 ppm, making it ideal for OEMs and air quality projects.
Order your Telaire Series T6713 CO NDIR Module today and ensure reliable, high-accuracy indoor air quality monitoring for your ventilation systems.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS T6713?
You can click on the BUY or RFQ button to purchase T6713 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part T6713?
You can download the T6713 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of T6713?
AMPHENOL ADVANCED SENSORS
