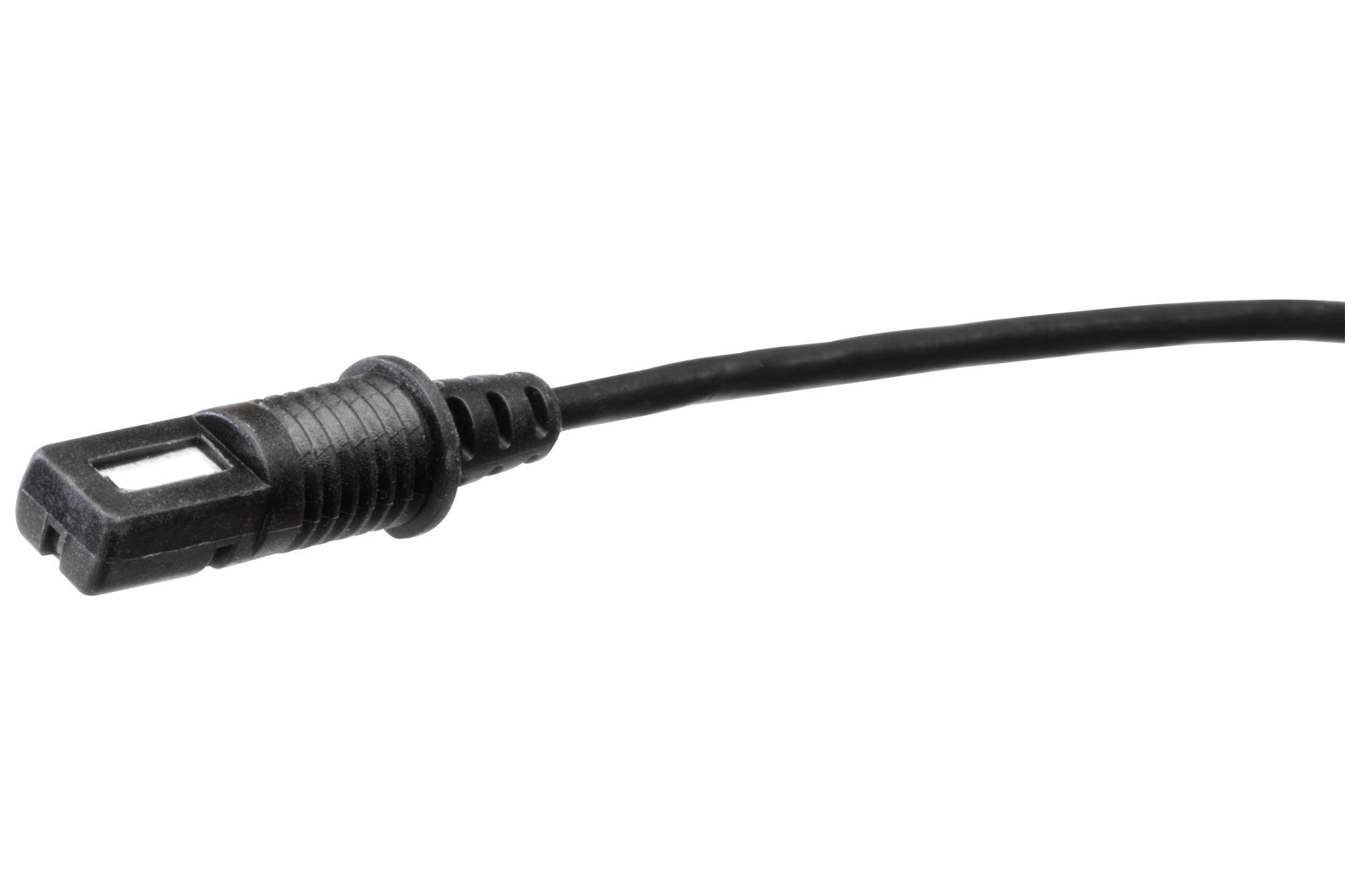

AMPHENOL ADVANCED SENSORS T96025D Humidity Temperature Sensor
This humidity and temperature sensor offers highly accurate, fully calibrated, and temperature compensated measurements with IP65 protection, ensuring reliability in harsh environments. Featuring low power consumption and optional wiring lengths, it is ideal for applications like HVAC control, process instrumentation, weather stations, and industrial automation. Its precise 14-bit resolution provides ±2% RH and ±0.3°C accuracy, supported by a robust design with easy mounting options. The sensor’s digital or analog output interfaces enable simple integration into OEM systems, making it a versatile and cost-effective solution for demanding conditions.
AMPHENOL ADVANCED SENSORS T96025D Humidity Temperature Sensor Specifications:
- Resolution: 14 bit (0.01% RH, 0.01°C)
- Accuracy: +2.0% RH (20~80% RH), +0.5°C
- Operating Range: 0 to 50°C, 0% to 100% RH (non-condensing)
- Response Time: 5.0 sec (t 63%)
- Long Term Drift: <0.05°C/yr
- Protection: IP65
- Power Supply: 3.3 or 5 VDC regulated
- Power Consumption: 750 µA (typical)
- Dimensions: 42 mm x 13.5 mm diameter approx
- Cable: Circular, 4-core with shield, 4.20 ± 0.20 mm diameter
- Operating Temperature: 0°C to 50°C
- Storage Conditions: -40°C to 85°C
- Outputs: 12C Digital or PDM Analogue
- Connectors: JST EHR-4, Mating PCB JST B4B-EH-A
- Warranty: 12 months
Buy the Amphenol Series T9602 Humidity & Temperature Sensor: T96025D
Purchase the Amphenol T96025D humidity and temperature sensor online today to ensure precise environmental monitoring. Its IP65 protection, low power consumption, and versatile digital or analog outputs make it ideal for OEM integration in HVAC, weather stations, and process control. The fully calibrated, temperature compensated sensor provides ±2% RH and ±0.3°C accuracy over a broad range, ensuring reliable performance even in harsh conditions. Easy mounting and robust design deliver dependable operation for demanding industrial and outdoor environments.
Buy Amphenol T96025D humidity and temperature sensor now and experience accurate, reliable environmental measurements for industrial and outdoor applications.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS T96025D?
You can click on the BUY or RFQ button to purchase T96025D from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part T96025D?
You can download the T96025D datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of T96025D?
AMPHENOL ADVANCED SENSORS
