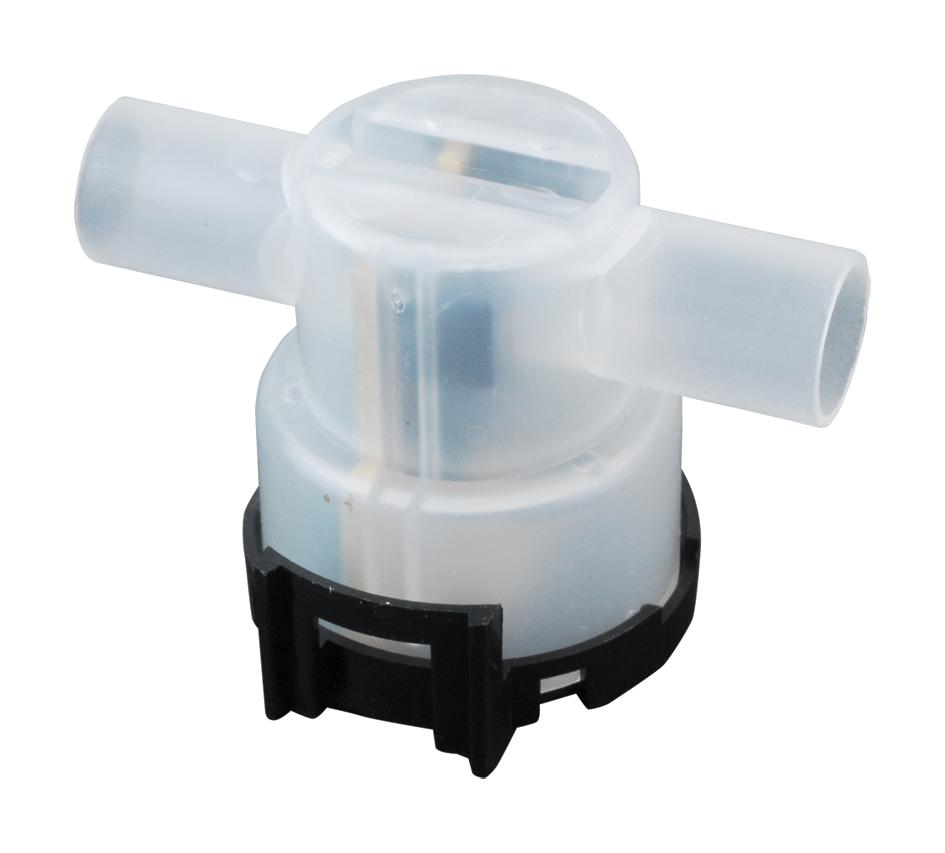

AMPHENOL ADVANCED SENSORS TST10 Turbidity Sensor
The TST-10 is a turbidity sensor module for washing machines and dishwashers, measuring suspended particles by detecting light refraction between a phototransistor and diode. It calculates water turbidity based on transmitted light, aiding washing cycle optimization and energy savings. Operating from -10°C to 90°C with a maximum current of 30mA, it features a minimum insulation resistance of 100MΩ at 500VDC. Ideal for sensing, water quality, and instrumentation, this sensor enhances washing efficiency and ensures water clarity during cleaning processes.
AMPHENOL ADVANCED SENSORS TST10 Turbidity Sensor Specifications:
- Part Number: TST-10
- Rated Voltage: DC SV (between No 1 & Ground)
- Voltage Differential: 2.7V + 20%
- Operating Temperature Range: -10°C to 90°C
- Storage Temperature Range: -120°C to 90°C
- Rated Current: Max. 30 mA
- Insulation Resistance: Min 100 MΩ at 500V DC
- Application: Detecting turbidity degree of water
- Calibration Method: Voltage test in water (0 NTU) and (4000 NTU) using master NTU standard liquid
- Material: Optical sensor with phototransistor and diode elements
- Functionality: Measures transmitted light to determine water turbidity
- Certifications & Standards: Subject to change; designed for sensing and instrumentation
Buy the Amphenol Series TST Turbidity Sensor: TST10
Purchase the Amphenol TST10 turbidity sensor online today to enhance water quality monitoring in washing machines and dishwashers. This high-precision optical sensor detects turbidity by measuring light refraction between its phototransistor and diode, providing accurate readings of suspended particles in wash water. Operating effectively within -10°C to 90°C, it helps optimize washing cycles, conserve energy, and ensure water clarity. Easy to integrate into sensing and instrumentation systems, this durable sensor guarantees reliable performance in water quality applications, promoting efficient cleaning and operational savings.
Buy Amphenol TST10 turbidity sensor now and experience reliable water clarity measurement for washing machines and dishwashers.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS TST10?
You can click on the BUY or RFQ button to purchase TST10 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part TST10?
You can download the TST10 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of TST10?
AMPHENOL ADVANCED SENSORS
