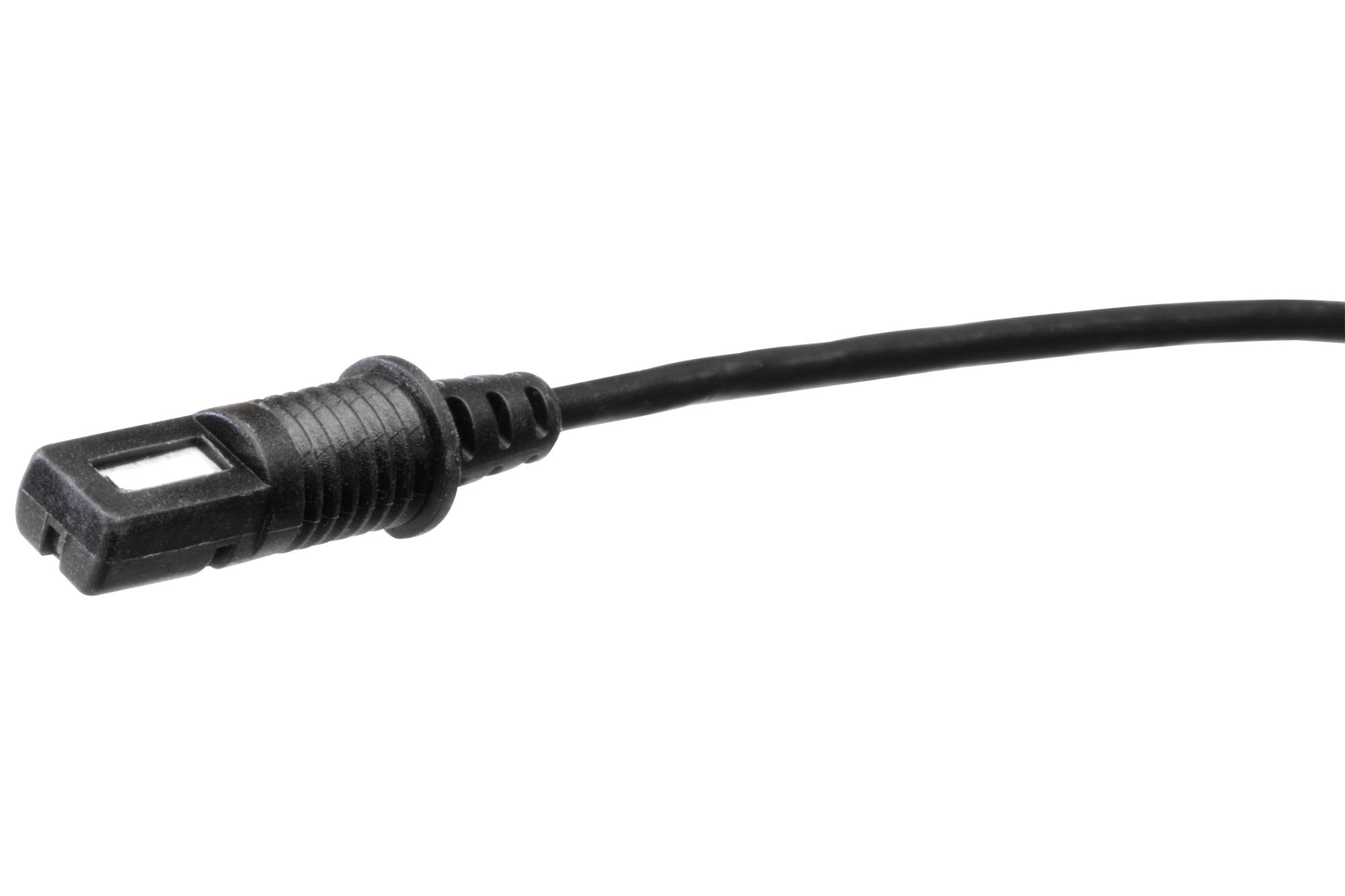

AMPHENOL ADVANCED SENSORS T96025A1 Humidity Temperature Sensor
The T9602 Humidity and Temperature Sensor offers advanced, reliable OEM solutions with precise calibration, high accuracy, and water-resistant design, suitable for HVAC and process control. Featuring 14-bit resolution for humidity and temperature, it provides linearized digital or analog outputs, and operates within 0°C to 50°C and 0% to 100% RH. Its compact form factor, IP65 protection, and optional wire lengths make it ideal for challenging environments including indoor air quality, refrigeration, and medical devices. Easy to install with multiple mounting options, it guarantees consistent performance and long-term stability in demanding applications.
AMPHENOL ADVANCED SENSORS T96025A1 Humidity Temperature Sensor Specifications:
- Operating Temperature Range: 0°C to 50°C
- Operating Humidity Range: 0% to 100% RH (non-condensing)
- Dimensions: Overall 42 mm x 13.5 mm diameter approx
- Output Options: 12C digital or PDM analog
- Power Supply: 3.3 or 5 VDC regulated
- Power Consumption: 750 WA (typical)
- Protection: IP65
- Cable Diameter: 4.2 mm ±0.2 mm, 4 core and shield, double insulated
- Operating Conditions: 32°F to 122°F (0°C to 50°C), 0% to 95% RH, non-condensing
- Storage Conditions: -40°C to 85°C
- Mounting: Grommet or Cable P Clamp, 7/16 in or 11.0 mm diameter
- Connector: JST EHR-4 with SEH-001T-P0.6 crimps
Buy the Amphenol Series T9602 Humidity and Temperature Sensor: T96025A1
Purchase the Amphenol T9602 Humidity and Temperature Sensor online today to ensure your projects benefit from high accuracy, robust water-resistant design, and versatile outputs. This advanced sensor is perfect for HVAC, process control, and harsh environments, providing easy installation, calibration-free operation, and IP65 protection. With multiple cable options and reliable long-term performance, our sensors help improve air quality, energy efficiency, and industrial process management, delivering precision and stability in a compact form factor. Order now to equip your equipment with industry-leading sensing technology.
Buy Amphenol T96025A1 now and experience unmatched reliability and performance in humidity and temperature sensing for your OEM applications.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS T96025A1?
You can click on the BUY or RFQ button to purchase T96025A1 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part T96025A1?
You can download the T96025A1 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of T96025A1?
AMPHENOL ADVANCED SENSORS
