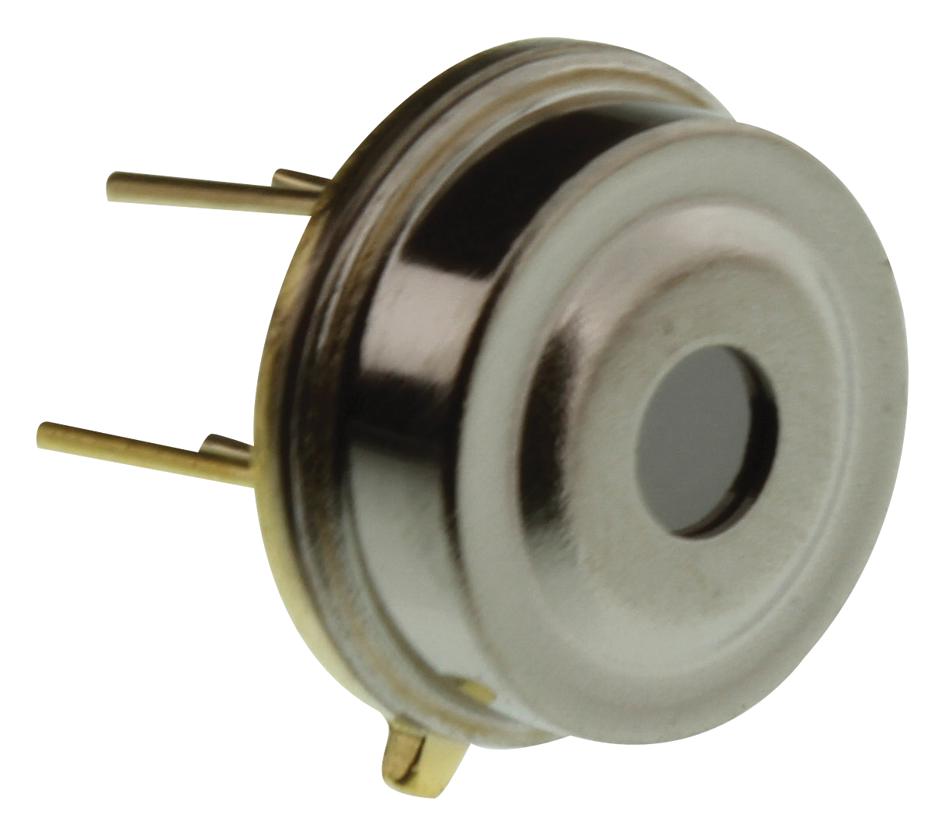

AMPHENOL ADVANCED SENSORS ZTP135 Infrared Thermopile Sensor
The ZTP-135 thermopile IR sensor is designed for non-contact surface temperature measurement, featuring a compact hermetically-sealed package, customizable filters, and an integrated thermistor for accurate ambient temperature compensation. Its high sensitivity, fast response, and wide measurement surface area make it suitable for medical, HVAC, occupancy detection, and appliance applications. The sensor's small size and robustness enable installation in space-constrained environments, providing reliable real-time temperature data essential for monitoring and control systems. It’s ideal for medical thermometry, HVAC diagnostics, and occupancy sensing in smart buildings.
AMPHENOL ADVANCED SENSORS ZTP135 Infrared Thermopile Sensor Specifications:
- Chip Size: 18x18 mm
- Diaphragm Size: 14x14 mm
- Active Area: 07x07 mm
- Resistance (Thermistor at 25°C): 110.8-117.1 kΩ
- Resistance Temperature Coefficient: -0.10 W/°C
- Responsivity: 42-78 V/W at 500K, 1 Hz
- Noise Voltage: 32 Vrms RMS at 25°C
- NEP: 0.053 nW/Hz1/2 at 500K, 1 Hz
- Detectivity: 1.30×10^8 cmHz/W at 500K, 1 Hz
- Time Constant: 25 ms
- Operating Temperature Range: -20°C to +100°C
- Storage Temperature Range: -40°C to +120°C
- Field of View: 51°-61°
- Optical Distance: Type-specific
- Pin Configuration: 1. GND Thermistor, 2. Thermopile, 3. GND Thermopile, 4. Thermistor
Buy the Amphenol Series Infrared Thermopile: ZTP135
Purchase the Amphenol ZTP135 infrared thermopile sensor today and enhance your temperature measurement systems. Its compact design, high sensitivity, and quick response time make it ideal for medical thermometry, HVAC diagnostics, occupancy detection, and appliance temperature monitoring. The sensor’s integrated thermistor offers accurate ambient temperature compensation, ensuring precise readings. Easy to install with a durable hermetically-sealed package, this sensor provides reliable, real-time data for various application environments. Order online now to upgrade your temperature sensing solutions effortlessly.
Buy Amphenol ZTP135 now and experience unmatched reliability and performance in non-contact temperature measurement with fast response and high sensitivity.
