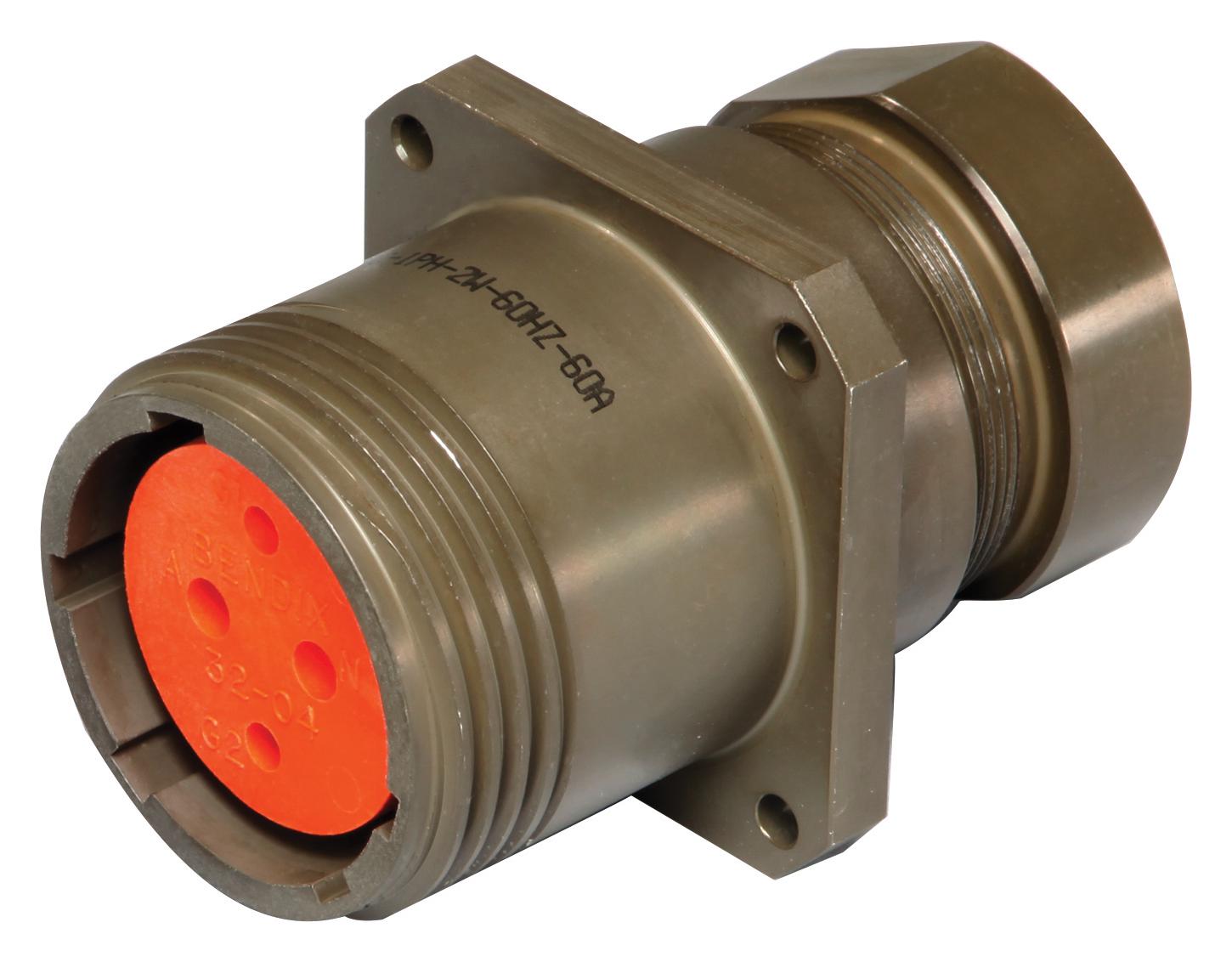

Amphenol Aerospace CL90555DT52413S Heavy Duty Circular Connector
Amphenol Aerospace's CL90555DT52413S connector is a robust solution for heavy-duty electrical loads in military and industrial settings. Designed to meet MIL-DTL-22992 specifications, this connector features a rugged construction, high current capacity (40-200 amperes), and automatic grounding for enhanced safety. Its double stub coupling threads facilitate faster connections and prevent cross-threading. The connector's design incorporates features like recessed socket contacts for arc suppression and a programmed coupling sequence for safe disconnection under load. It is ideal for applications requiring reliable interconnection in challenging environments, including those exposed to heat, moisture, vibration, and immersion.
Amphenol Aerospace CL90555DT52413S Heavy Duty Circular Connector Specifications:
- MIL_DTL_Standard: MIL-DTL-22992, Class L
- Typical_Markets: Military & Industrial
- Current_Range: 40 to 200 amperes
- Electrical_Current: Direct current or single/three phase, 60/400 Hertz alternating current
- Grounding: Automatic grounding for safety
- Environmental_Resistance: Resistance to heat, moisture, vibration, high impact, and immersion
- Coupling_Threads: Double stub coupling threads
- Keyway_Positions: Four positions for power source discrimination
- Insert_Rotation: Used to distinguish between 60 Hertz and 400 Hertz circuits
- Shell_Sizes: Shell size directly related to current carrying capability
- Contact_Sizes: 6 to 4/0
- Connector_Shell_Style: Wall mount and cable connecting receptacles
- Contact_Type: Socket contacts (receptacles) and pin contacts (plugs)
- Patent_Numbers: 3,023,396, 3,221,292
