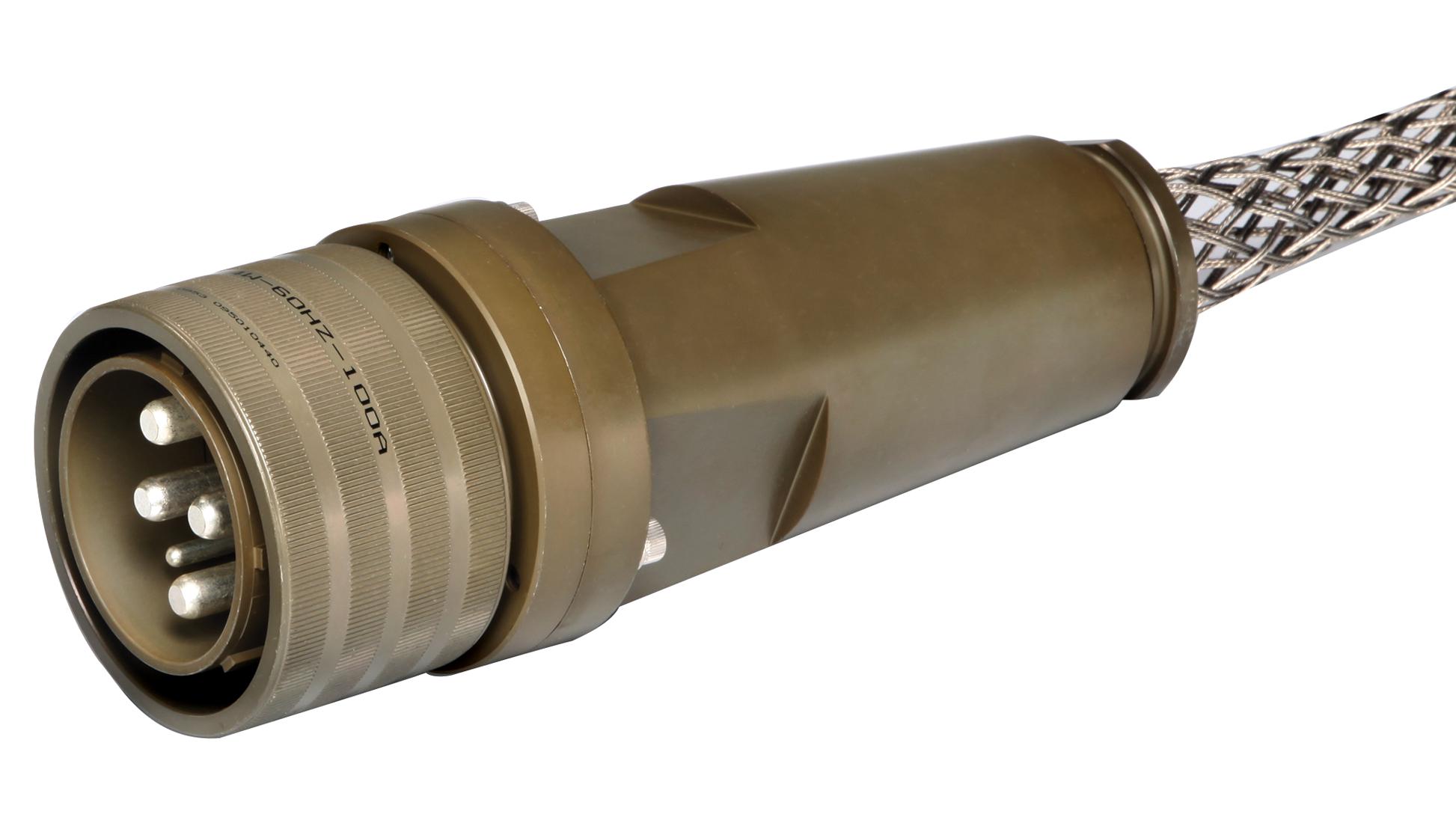

Amphenol Aerospace CL90556DT52412P Heavy Duty Circular Connector
This heavy-duty industrial connector features a Durmalon finish, an environmentally friendly alternative to cadmium, offering protection against 500 hours of dynamic salt spray. It is designed for commercial, industrial, and military applications, meeting rigorous standards for durability and conductivity. The connector is rated for current ranges between 40 to 200 amps, suitable for conductors from size 6 up to 4/0, and is capable of handling direct current as well as single- or three-phase alternating current at 60/400Hz. Features include automatic grounding for safety, resistance to heat, moisture, vibration, impact, and immersion, and double stub coupling threads for quick, secure connections without cross-threading. Its left-hand accessory thread minimizes cable twisting and accidental disassembly, while gaskets ensure weather-tight sealing. The connector is an excellent replacement for cadmium-plated counterparts, with a salt spray resistance exceeding 1000 hours, and is compatible with MIL-DTL-22992 specifications for commercial Class L heavy-duty connectors.
Amphenol Aerospace CL90556DT52412P Heavy Duty Circular Connector Specifications:
- Finish: Durmalon, environmentally friendly alternative to cadmium
- Protection: Resistance to 500 hours salt spray (dynamic)
- Application: Commercial, industrial, military
- Current Rating: 40 to 200 amperes
- Conductors: Sizes 6 up to 4/0
- Electrical: Handles DC, single-phase, three-phase 60/400Hz
- Thread: Double stub coupling threads for quick, secure connection
- Additional features: Automatic grounding, weather-tight gaskets, left-hand accessory threads to prevent cable twisting
- Durability: Hit, moisture, vibration, impact, immersion resistant
- Standards: Meets MIL-DTL-22992 Class L specifications
Buy the Buy Amphenol Heavy Duty Circular Connector Part Number CL90556DT52412P Online
Purchase the Amphenol Heavy Duty Circular Connector CL90556DT52412P online for industrial, military, and commercial applications. Designed with Durmalon finish for superior salt spray resistance exceeding 500 hours, ensuring long-lasting reliability in challenging environments. Rated for 40-200A, suitable for conductors from size 6 to 4/0, capable of handling direct current and three-phase AC at 60/400Hz. Features include quick coupling threads, automatic grounding, weatherproof sealing, and compatibility with MIL-DTL-22992 standards. Perfect for demanding power and control systems requiring rugged, secure connections.
Get Amphenol CL90556DT52412P today—built for rugged durability and reliable performance in harsh environments.
Frequently Asked Questions
Where can I buy Amphenol Aerospace CL90556DT52412P?
You can click on the BUY or RFQ button to purchase CL90556DT52412P from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part CL90556DT52412P?
You can download the CL90556DT52412P datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of CL90556DT52412P?
Amphenol Aerospace
