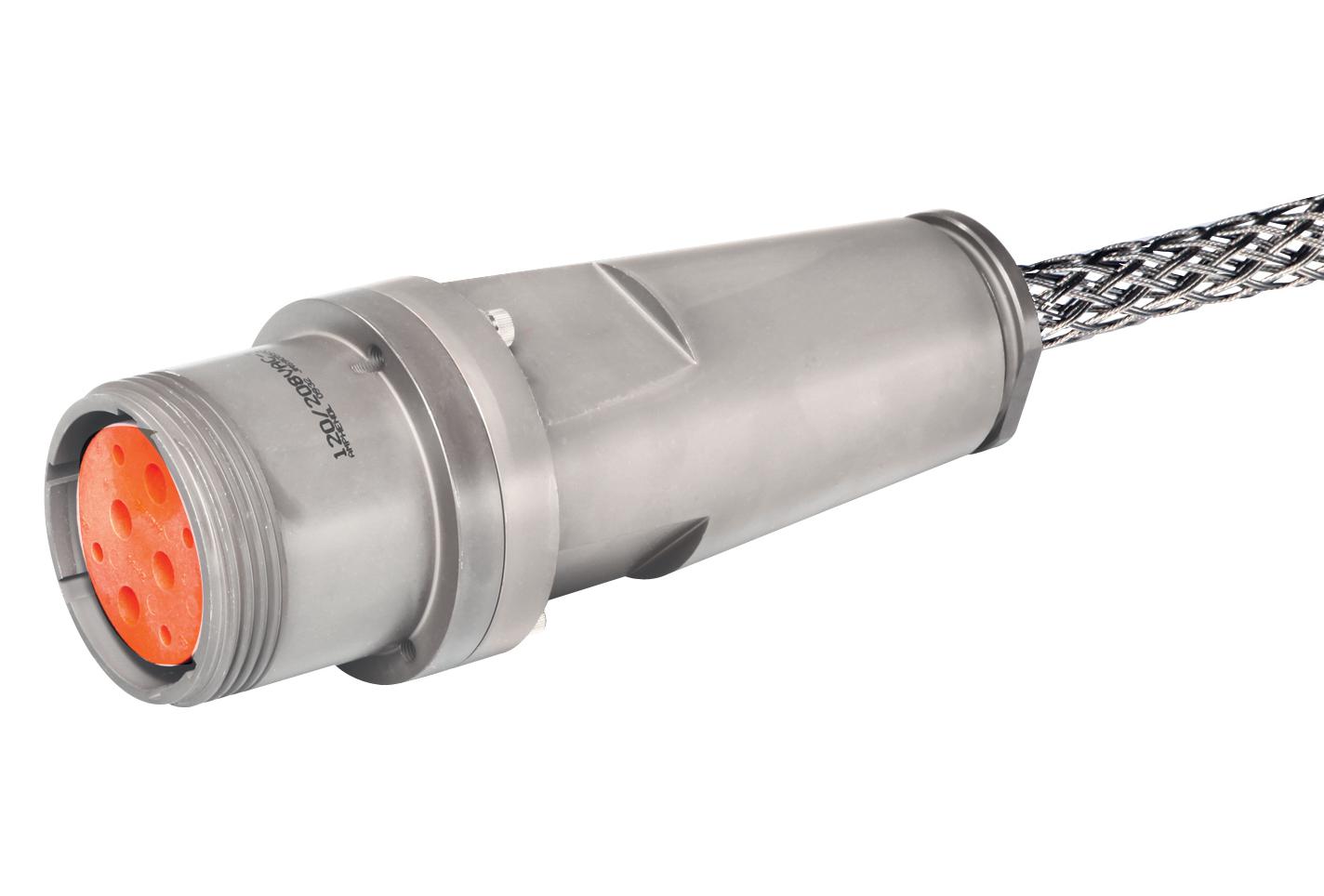

Amphenol Aerospace CL90556FS52412P Heavy Duty Connector
The Durmalon finish, an alternative to cadmium, offers protection against 500 hours of dynamic salt spray and is suitable for commercial, industrial, and military applications. It provides corrosion resistance comparable to olive-drab cadmium plating (Class W), supporting 500 mating cycles and meeting specified shell-to-shell conductivity requirements. The durable AP-93 plating for aluminum connectors surpasses cadmium in salt spray resistance, with over 1000 hours of protection, making it ideal for harsh environments. These connectors are designed to meet or exceed D38999 cadmium specifications, providing reliable performance in tough conditions. The commercial Class L heavy-duty connectors are the equivalent of MIL-DTL-22992 qualified connectors, available in specific configurations. They support current ranges from 40 to 200 amps, accommodate conductor sizes from 6 to 4/0, and are suitable for direct current and single or three-phase AC at 60/400Hz. Features include automatic grounding, resistance to heat, moisture, vibration, impact, and immersion, double stub coupling threads for quick connections, left-hand accessory threads to prevent cable twisting, and gaskets or O-rings for weather-tight seals.
Amphenol Aerospace CL90556FS52412P Heavy Duty Connector Specifications:
- Finish: Durmalon, an alternative to cadmium with 500 hours salt spray protection
- Corrosion Resistance: Comparable to olive-drab cadmium, surpassing 1000 hours salt spray for aluminum connectors
- Shell-to-shell conductivity: Meets specified requirements
- Current Rating: 40 to 200 amperes
- Conductor Sizes: 6 to 4/0
- Electrical Type: Suitable for DC and single/three-phase AC, 60/400Hz
- Features: Automatic grounding, heat, moisture, vibration, impact, immersion resistance
- Thread Types: Double stub coupling threads, left-hand accessory threads
- Seals: Gaskets and O-rings for weather-tightness
- Compliance: Meets or exceeds D38999 cadmium specifications
Buy the Buy Amphenol Heavy Duty Connectors Part Number CL90556FS52412P Online
Order the Amphenol heavy duty connector CL90556FS52412P online today to ensure dependable connections for industrial and military use. Built with Durmalon finish for enhanced corrosion resistance, supporting up to 200 amps and suitable for DC and AC applications. Features include quick double stub coupling threads, weather-tight seals with gaskets or O-rings, and strong aluminum construction designed to withstand heat, moisture, vibration, impact, and immersion. This connector is ideal for demanding environments, ensuring safety, reliability, and long-term operational efficiency in military and industrial systems.
Get Amphenol CL90556FS52412P today—built for heavy power loads, durability, and reliable performance in tough environmental conditions.
Frequently Asked Questions
Where can I buy Amphenol Aerospace CL90556FS52412P?
You can click on the BUY or RFQ button to purchase CL90556FS52412P from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part CL90556FS52412P?
You can download the CL90556FS52412P datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of CL90556FS52412P?
Amphenol Aerospace
