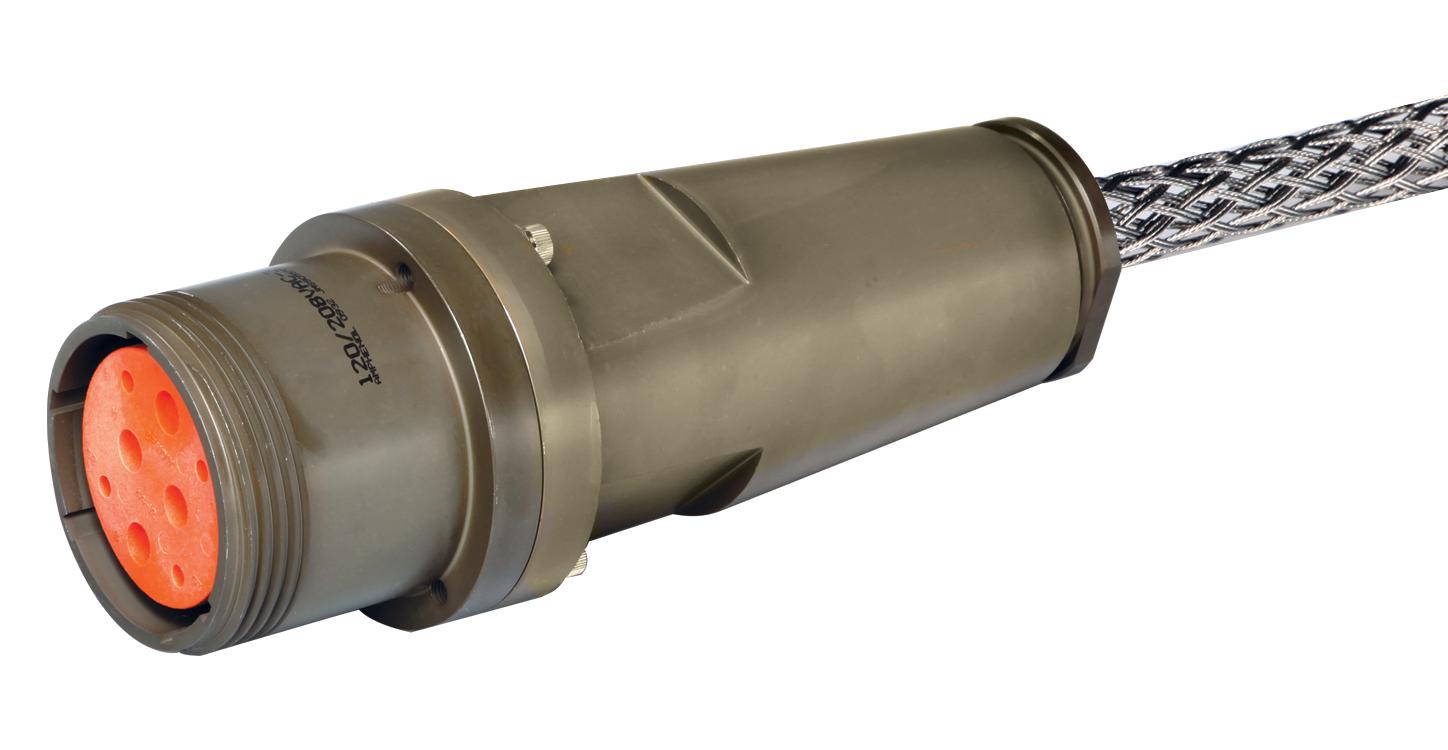

Amphenol Aerospace CL90557DT52413S Heavy Duty Connector
This high-performance electrical connector features a Durmalon finish, an eco-friendly alternative to cadmium, providing protection against 500 hours of dynamic salt spray. It is designed for commercial, industrial, and military applications, meeting stringent standards such as 500 mating cycles, shell-to-shell conductivity, and resistance to harsh environments, including heat, moisture, vibration, high impact, and immersion. The AP-93 plating for aluminum connectors surpasses cadmium performance, offering over 1000 hours of salt spray resistance and excellent conductivity, making it suitable for demanding environments. The connector supports current ranges from 40 to 200 amps, accommodates conductor sizes 6 to 4/0, and is capable of handling direct current or single/three-phase AC at 60/400Hz. Features include automatic grounding for safety, double stub coupling threads for quick, damage-free connections, a left-hand accessory thread to reduce cable twisting, and gaskets or O-rings for weather-tight sealing. Intermateable with cadmium connectors, it serves as a reliable, heavy-duty replacement in critical applications.
Amphenol Aerospace CL90557DT52413S Heavy Duty Connector Specifications:
- Finish: Durmalon (eco-friendly alternative to cadmium)
- Salt Spray Resistance: Over 500 hours dynamic testing
- Material Compatibility: Aluminum with AP-93 plating for superior corrosion resistance over 1000 hours salt spray
- Current Capacity: 40 to 200 amperes
- Conductor Range: Sizes 6 to 4/0
- Electrical Type: Direct current or single/three-phase AC at 60/400Hz
- Safety Features: Automatic grounding
- Threading: Double stub coupling threads for quick, damage-free connections, left-hand accessory thread to minimize twisting
- Sealing: Gaskets and O-rings for weather-tight seal
- Environmental Resistance: Heat, moisture, vibration, high impact, immersion
- Compatibility: Intermateable with cadmium-coated connectors
- Lifecycle: At least 500 mating cycles
Buy the Buy Amphenol AP-93 Durmalon Heavy Duty Connector Part Number CL90557DT52413S Online
Purchase the Amphenol CL90557DT52413S heavy duty connector online today and benefit from superior Durmalon eco-friendly finish that resists 500 hours salt spray. Designed for commercial, industrial, and military applications, this connector supports current ranges from 40 to 200 amps with conductor sizes 6 to 4/0. It features automatic grounding, quick coupling threads, weatherproof gaskets, and excellent durability against harsh environmental conditions. Ensure your critical systems operate reliably with this high-quality, intermateable connector that offers superior safety, corrosion resistance, and long service life in demanding settings.
Buy Amphenol CL90557DT52413S now and experience unmatched reliability, corrosion resistance, and safe heavy-duty performance in demanding environments.
Frequently Asked Questions
Where can I buy Amphenol Aerospace CL90557DT52413S?
You can click on the BUY or RFQ button to purchase CL90557DT52413S from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part CL90557DT52413S?
You can download the CL90557DT52413S datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of CL90557DT52413S?
Amphenol Aerospace
