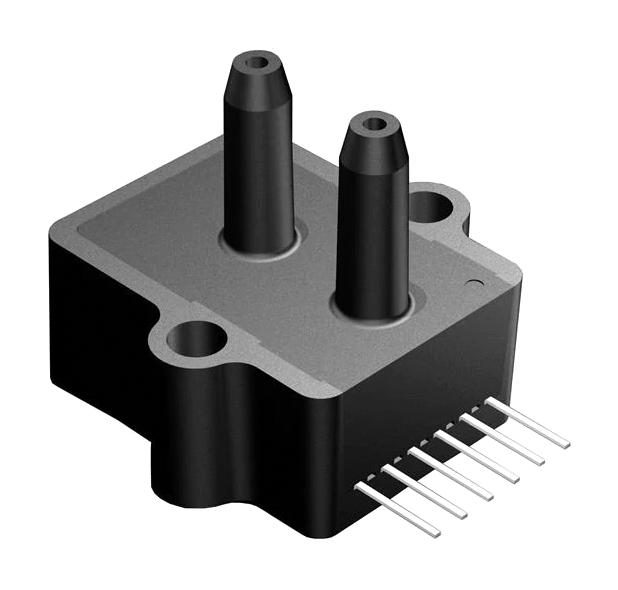

AMPHENOL ALL SENSORS 15PSIAHGRADEMV Millivolt Pressure Sensor
The Millivolt Output pressure sensors from AMPHENOL ALL SENSORS is based upon a proprietary packaging technology to reduce output offset or common mode errors. This model provides a calibrated millivolt output with excellent output offset characteristics. The sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure. These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. They are intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. The H-GRADE is a high accuracy version of the millivolt output pressure sensors.
AMPHENOL ALL SENSORS 15PSIAHGRADEMV Millivolt Pressure Sensor Specifications:
- Operating Pressure Range: 0 to 15 PSIA
- Nominal Span: 90 mV
- Proof Pressure: 60 PSIA
- Burst Pressure: 120 PSIA
- Supply Voltage: Up to +16 V
- Linearity: 0.25 %fs
- Offset Voltage @ zero pressure: ±0.5 mV
- Offset Temperature Shift: ±500 uV
- Span Shift: ±1 %fs
- Input Resistance: 20 k ohm
- Output Resistance: 3.0 k ohm
Buy the 15 PSI-A-HGRADE-MV AMPHENOL ALL SENSORS Millivolt Pressure Sensor | myMectronic
Purchase the AMPHENOL ALL SENSORS 15 PSI-A-HGRADE-MV Millivolt Pressure Sensor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 15PSIAHGRADEMV?
You can click on the BUY or RFQ button to purchase 15PSIAHGRADEMV from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 15PSIAHGRADEMV?
You can download the 15PSIAHGRADEMV datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 15PSIAHGRADEMV?
AMPHENOL ALL SENSORS
