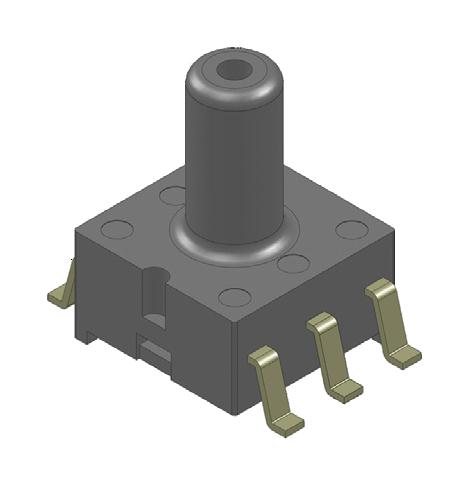

AMPHENOL ALL SENSORS BLCL05DU2 Low Pressure Sensor
The BLC Series Basic Low Pressure Compact Pressure Sensor utilizes CoBeam Technology for high stability, low power consumption, and excellent linearity. Designed for non-corrosive gases like air, it operates with a supply voltage of 0.9 to 1.8 V DC, providing a high output signal at low voltages. Suitable for medical, HVAC, and portable device applications, this sensor offers pressure ranges from 1 to 30 inH2O and 5 to 150 PSI, ensuring accurate, reliable measurements with minimal temperature and position sensitivity. Its compact design simplifies integration into diverse systems requiring precise low-pressure sensing.
AMPHENOL ALL SENSORS BLCL05DU2 Low Pressure Sensor Specifications:
- Pressure Ranges: 1 to 30 inH2O, 5 to 150 PSI
- Supply Voltage: 0.9 to 1.8 V DC
- Output Span (Full Scale): 45-115 mV depending on model
- Linearity: Typical 0.1%
- Temperature Range: -40°C to +125°C
- Operating Temperature: 0°C to +70°C
- Sealing: IP67-rated for environmental protection
- Pressure Port: Single top port (D1, D3, D4 packages)
- Physical Dimensions: Vary by package, approx. 9.0 x 9.0 mm
- Leakage Current: Typical 0.5 mA
- Response Time: ~1 ms
- Housing Material: Silicone rubber, epoxy encapsulated
Buy the Buy Amphenol BLC Series Pressure Sensor Part Number BLCL05DU2 Online
Purchase the Amphenol BLC Series Low Pressure Sensor online today to ensure precise, stable measurements in your medical, HVAC, or portable device applications. This compact, high-performance sensor operates with low power from 0.9 to 1.8 volts DC, providing accurate and reliable pressure readings across ranges up to 30 inH2O and 150 PSI. Its durable construction, IP67 sealing, and fast response time make it ideal for various demanding environments. Enjoy seamless integration and dependable performance by ordering now through our secure online platform.
Order your Amphenol BLC Series pressure sensor BLCL05DU2 today and enhance your low-pressure measurement projects with its compact, reliable design.
