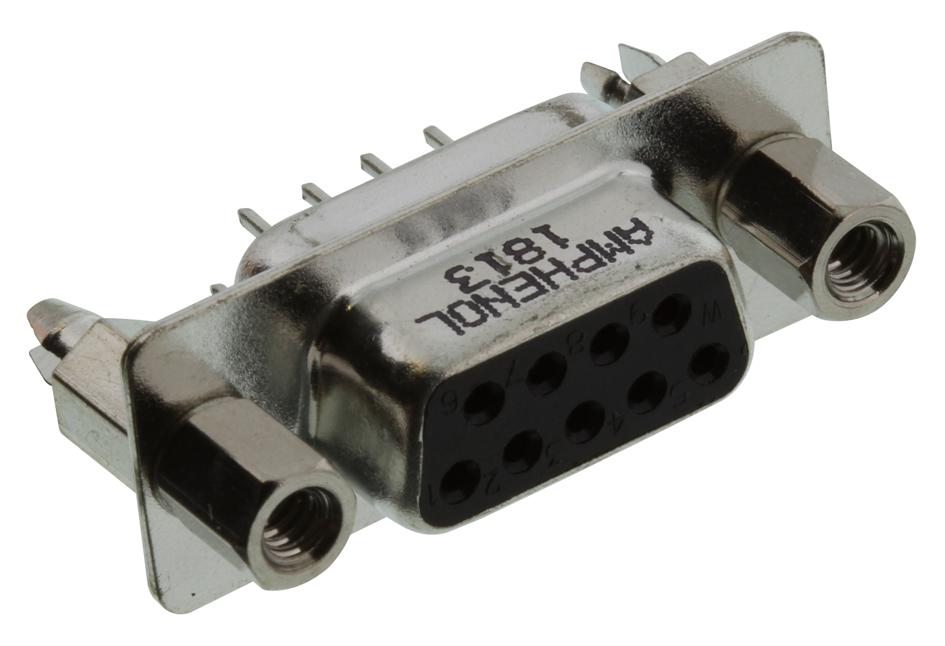

AMPHENOL COMMERCIAL PRODUCTS L77SDEH09SOL2RM8 D-Sub PCB Termination Connector
Amphenol's SD series D-Sub connectors are designed for commercial applications requiring high quality and reliability. These connectors feature precision-formed contacts and an insulator with closed-entry contact cavities, ensuring consistent performance. They meet MIL C24308 and NFC 93425-HE5 standards and are available in both standard and high-density configurations. The robust construction and reliable electrical performance make them ideal for industrial, telecom, and any application requiring standard I/O connections.
AMPHENOL COMMERCIAL PRODUCTS L77SDEH09SOL2RM8 D-Sub PCB Termination Connector Specifications:
- Connectors according to: MIL C24308 - NFC 93425-HE5
- Shells: Steel, tin over nickel plating
- Insulator: Glass-filled thermoplastic, UL 94V- 0
- Pin contacts: Brass, selected gold in mating area; 2.54µm (100 µ") min.tin on termination area over 1.27µm (50µ") min.nickel
- Socket contact: Phosphor bronze, selected gold in mating area;2.54µ(100µ") min.tin on termination area over 1.27µm (50µ") min.nickel
- Rear insert: Brass, 2.54µm (100µ") min.nickel plated
- Boardlock: Brass, 2.54µm (100µ") min.nickel plated
- Screwlock: Brass, 2.54µm (100µ") min.nickel plated (removable)
- Current rating (Standard Density): 5A
- Current rating (High Density): 3A
- Voltage rating: 250V AC/ rms 50Hz
- Withstanding voltage: 1000V AC/rms 50Hz for one minute
- Insulation resistance: 1000MΩ at 500V DC
- Contact resistance: 20mΩ max
- Operating temperature: -55°C to +125°C
- Salt spray: 24 hours
- Single contact insertion force: 0.54kg (1.19lb) max
- Single contact withdrawal force (SD): 0.06kg (0.13lb) min
- Single contact withdrawal force (HD): 0.02kg (0.044lb) min
- Mating force (SD): 3.05 (6.74) kg
- Unmating force (SD): 0.36 (0.79) kg
- Mating force (HD): 3.81 (8.42) kg
- Unmating force (HD): 0.52 (1.14) kg
