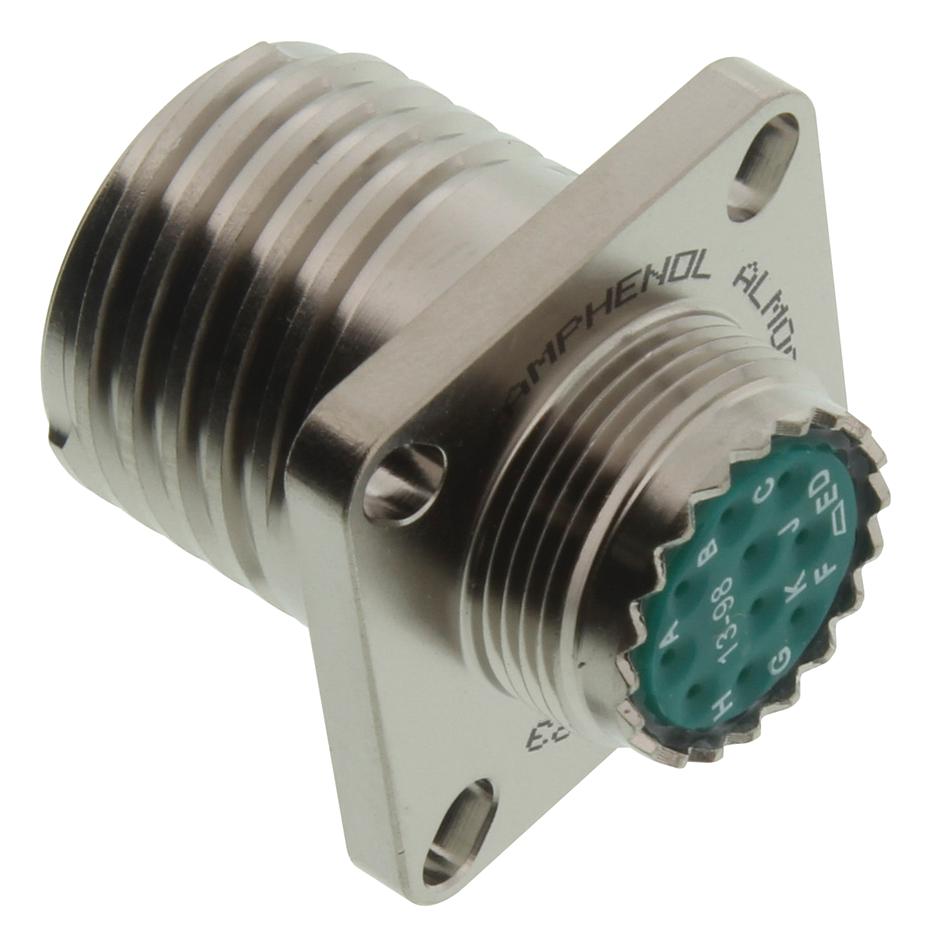

AMPHENOL INDUSTRIAL ALM00FD1398S Circular Connector
The Amphe-Lite M3 Series is a high-performance, MIL-DTL-38999-based circular connector designed for harsh environments. It features a scoop-proof design, robust silicone seals providing fluid resistance, and comprehensive EMI shielding through 100% metal-to-metal bottoming. The connector boasts acme threads for durable quick-mating, a rigid dielectric insert for contact protection, and Gray ZnNi plating for salt spray resistance up to 500 hours. Suitable for control systems, aerospace, telecommunication, medical instrumentation, and vehicle interconnects, it offers reliable performance with 500+ mating cycles and operational temperatures from -65°C to +125°C.
AMPHENOL INDUSTRIAL ALM00FD1398S Circular Connector Specifications:
- Operating Temperature: -65°C to +125°C
- Ingress Protection: IP67 at mated condition
- Salt Spray Resistance: 500 hours with Gray ZnNi plating
- Mating Cycles: 500 minimum
- Shell Sizes: 9, 11, 13, 15, 17, 19, 21, 23, 25
- Material: Anodized aluminum shell with silicone seals
- Contact Resistance: <= 12 mΩ for 22D contacts, <= 25 mΩ for 16 contacts, <= 15 mΩ for 12 contacts
- Current Rating: Up to 23A depending on contact size
- Vibration Resistance: Sine 10-2000Hz, 294 m/s²; Random 100-1000Hz, 1g²/Hz
- Vibration and Shock Resistance: 3 ms sine shock up to 300g
- Connector Types: Receptacle, plug, and jam nut options
- Sealing: Silicone-based fluid resistance and scoop-proof shell design
Buy the Amphenol Series Amphe-Lite M3: MIL-DTL-38999 Circular Connector ALM00FD1398S
Order the Amphenol Amphe-Lite M3 connector online today for high performance in demanding environments. Designed for aerospace, control systems, and telecommunications, it offers superior fluid resistance, EMI shielding, quick-mating, and robust construction. With operational temperatures from -65°C to +125°C, salt spray resistance up to 500 hours, and 500+ mating cycles, this connector provides reliable, long-term connection solutions for industrial, military, and medical applications. Purchase now for dependable performance and easy online procurement.
Get Amphenol Amphe-Lite M3 connector today—built for harsh environments, quick-mating, and long-lasting durability.
