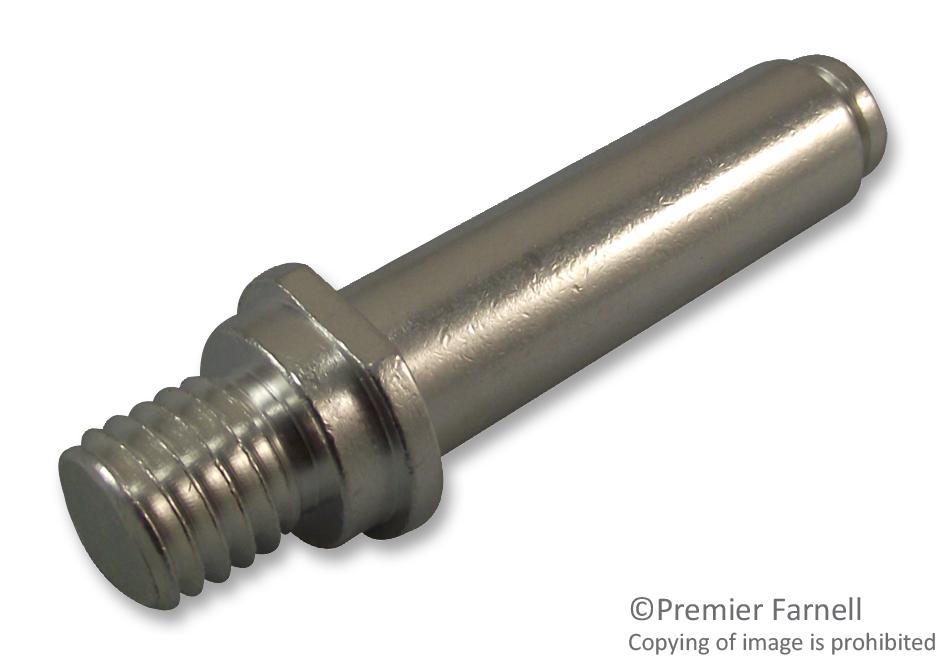

AMPHENOL INDUSTRIAL PSLP80 High Current Compression Lug
The Amphenol SurLok compression lug with plastic housing utilizes RADSOK technology for high current applications in a compact, easy-to-install design. Suitable for power distribution, it features a secure locking mechanism, high reliability, and low insertion force. The lug supports wire sizes up to 8 AWG, with crimping tools that do not require torque wrenches. Its platinum- and tin-plated contact surfaces ensure optimal conductivity and corrosion resistance. Ideal for high current, plug-and-play environments in medical, test equipment, and heavy machinery sectors, offering safe and durable connections with RoHS compliance.
AMPHENOL INDUSTRIAL PSLP80 High Current Compression Lug Specifications:
- Wire Size: 8 AWG, 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG
- Current Ratings: 70 to 300 Amps depending on size
- Crimp Code: Ranges from 21 to 45
- Maximum Diameter: 0.17 to 0.44 inches
- Engagement Force: ~2 to 5 lbs. initial, 10 to 15 lbs. locking
- Separation Force: ~10 to 15 lbs.
- Contact Surface: Silver plated on pin and socket, matte tin on wire crimp barrel
- Part Numbers: PSL-368K, PSL-576K, PSL-574K, PSL-802K, PSL-801K, PSL-10310K, PSL-10320K
- Thread Sizes (male): M3x0.5, M5x0.8, M8x1.25, M10x1.5
- UL Listed: UL1977
- Housing: Dielectric, black standard, optional colors available
- Certifications: RoHS compliant
Buy the Amphenol Series SurLok High Ampacity Compression Lug: PSLP80
Secure your power connections with the Amphenol PSLP80 compression lug featuring RADSOK technology. Designed for high current applications, it offers easy field installation with standard crimps, high reliability, and corrosion-resistant plated contacts. The lock-in mechanism ensures a safe, durable connection suitable for medical, industrial, and heavy equipment markets. Its RoHS compliance, wide size range, and easy-to-use design make it ideal for environments requiring frequent plugging and unplugging, delivering high efficiency and safety for demanding electrical applications.
Buy Amphenol PSLP80 now and experience unmatched reliability and high current performance in your power distribution systems.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL PSLP80?
You can click on the BUY or RFQ button to purchase PSLP80 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part PSLP80?
You can download the PSLP80 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of PSLP80?
AMPHENOL INDUSTRIAL
