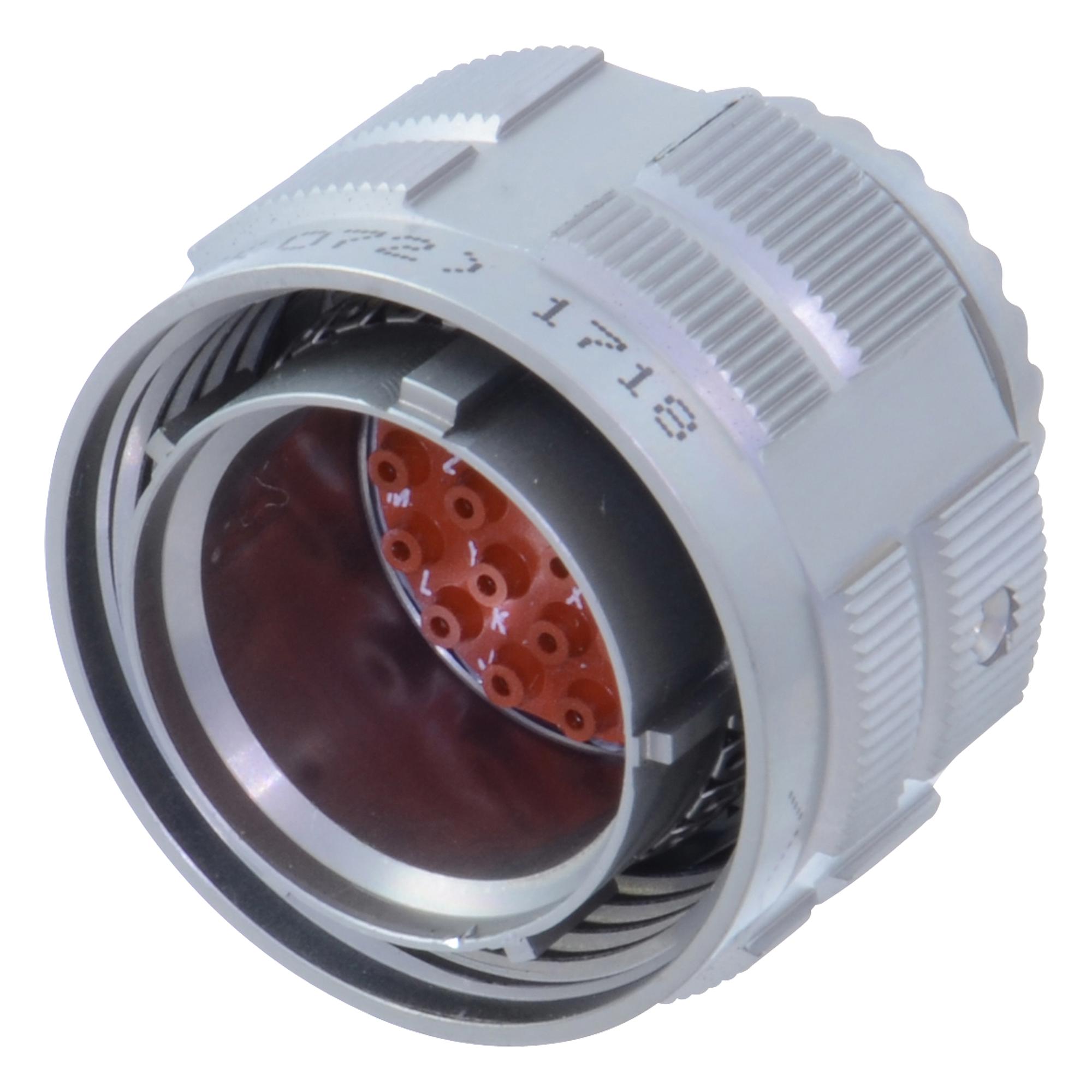

AMPHENOL INDUSTRIAL ALM06FD2135P Circular Connector
The Amphe-Lite M3 series is a high-performance circular connector designed for harsh environments, featuring a scoop-proof design, quick-mating bayonet coupling, and durable materials like Gray Zinc Nickel plating. It offers excellent EMI shielding, high vibration resistance, and corrosion resistance for applications in control systems, aerospace, telecommunications, and medical instrumentation. With 17 insert patterns, various shell sizes, and compatibility with MIL-DTL-38999 Series III standards, it provides reliable, quick, and easy connections even in demanding industrial and military settings, ensuring long-term durability and performance.
AMPHENOL INDUSTRIAL ALM06FD2135P Circular Connector Specifications:
- Operating Temperature: -65°C to +125°C
- Mating Life: Minimum 500 Cycles
- Insulation Resistance: > 100 MΩ in humid conditions
- Salt Spray Resistance: Gray ZnNi plating for 500H
- Vibration Resistance: Sine and random vibration tested, accelerations up to 294 m/s²
- Shock Resistance: 3ms half-sine, peak 300g
- Contact Sizes: 12, 16, 20, 22D with respective diameters and resistance below specified limits
- Shielding: EMI attenuation of at least 50dB from 100MHz to 10GHz
- Shell Material: Aluminum with Gray ZnNi plating
- Sealing: Silicone seals providing fluid resistance
- Certification: RoHS compliant, UL94 V-0 flammability
- Connection Type: Bayonet coupling, threaded options available
- Cable Compatibility: Multiple shell sizes rated IP67 in mated condition
- Construction: Rigid dielectric insert, multiple keyway options for correct mating
- Application Suitability: Control systems, aerospace, medical, high-performance testing, vehicle interconnects
Buy the Amphenol ALM3 – Reliable Circular Connectors for Industrial Applications
Explore the Amphenol ALM3 Series Circular Connector for your industrial, aerospace, and medical applications. Engineered for harsh environments, it ensures reliable connections with scoop-proof shells, quick-mating bayonet coupling, and superior EMI shielding. Suitable for control systems, telecommunication equipment, and high-performance testing, this connector features corrosion-resistant Gray ZnNi plating, multiple insert patterns, and IP67 rated sealing. Compatible with MIL-DTL-38999 Series III, it offers a long service life, vibration/shock resistance, and easy field assembly—order online today for quick delivery and trusted quality.
Order your Amphenol Series ALM3 circular connector today and give your projects the dependable quality they deserve, suitable for harsh environments and quick installation.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ALM06FD2135P?
You can click on the BUY or RFQ button to purchase ALM06FD2135P from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ALM06FD2135P?
You can download the ALM06FD2135P datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ALM06FD2135P?
AMPHENOL INDUSTRIAL
