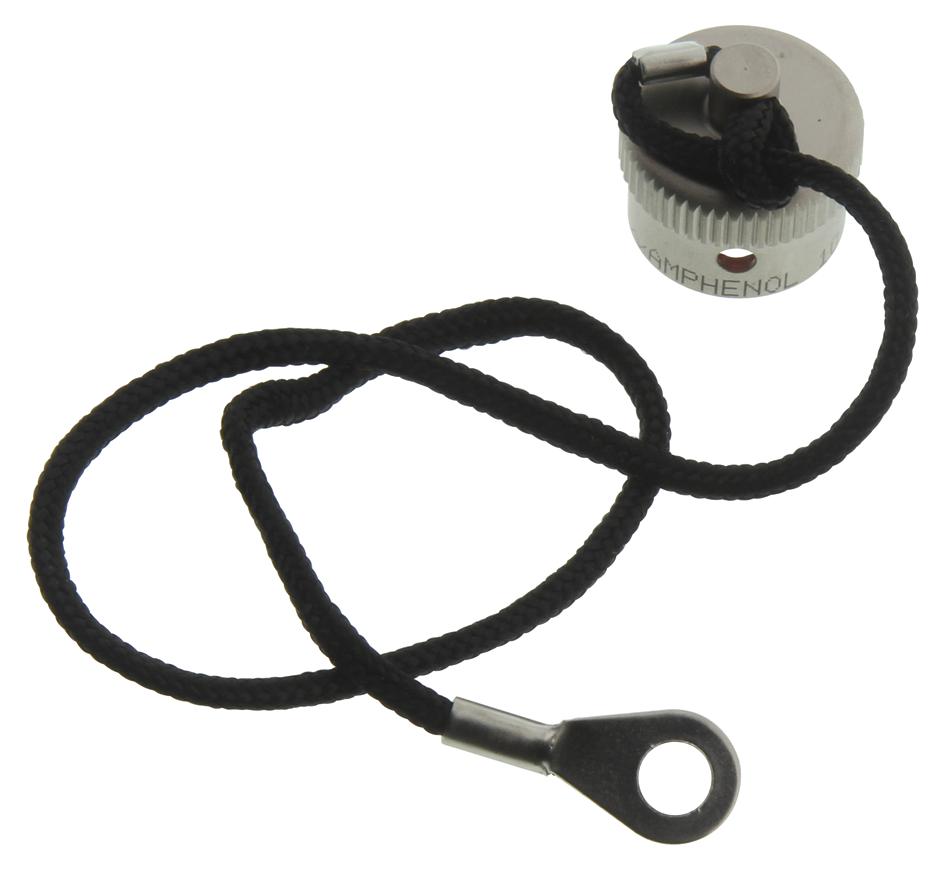

AMPHENOL INDUSTRIAL C1073866608M2 Circular Connector
Amphenol's Micro-B Series Connectors are engineered for modern electronic applications, supporting a small footprint, lightweight design, high-density insert arrangements, and excellent EMI shielding. Made from durable aluminum with Gray ZnNi plating, these rugged connectors incorporate a triple bayonet coupling for quick, secure mating and stamped & formed contacts for high reliability. Suitable for harsh environments, they feature high shock and vibration resistance, operating from -40°C to 125°C, with IP67 protection when mated with a backshell. Ideal for automotive, automation, industrial, and communication systems requiring frequent mating and disconnection.
AMPHENOL INDUSTRIAL C1073866608M2 Circular Connector Specifications:
- Shell Material: Aluminum
- EMI-Ring Material: Copper Alloy
- Retaining Ring: Stainless Steel
- Wave Ring: Stainless Steel
- Insert Material: Plastic (PA66)
- Contact Material: Copper Alloy
- Contact Plating: Tin/Gold Plated
- Operating Temperature Range: -40°C to 125°C
- Ingress Protection: IP67 (with cable gland and backshell)
- Test Current: 3A for #22D contact
- Voltage Rating: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 1000 MΩ at 500V
- Contact Resistance: ≤22 mΩ
- Mating Cycles: 500
- Vibration Resistance: In accordance with EIA-364-28D
- Salt Spray Resistance: Up to 500 hours (Gray ZnNi)
- RoHS Compliant
Buy the Amphenol Series Micro-B Circular Connector: C1073866608M2
Order the Amphenol Micro-B Circular Connector C1073866608M2 online today for high-performance, compact design suitable for industrial automation, automotive, and telecommunications. This durable connector features an aluminum shell with Gray ZnNi plating for corrosion resistance and a triple bayonet coupling for quick, secure mating. With a high mating cycle rating of 500, IP67 protection, and operating temperatures from -40°C to 125°C, it's ideal for environments demanding reliability and fast installation. Perfect for engineers and technicians seeking quality, efficiency, and extended service life in demanding applications.
Get Amphenol Micro-B Connector C1073866608M2 today—built for high durability, excellent EMI shielding, and reliable performance in harsh environments.
