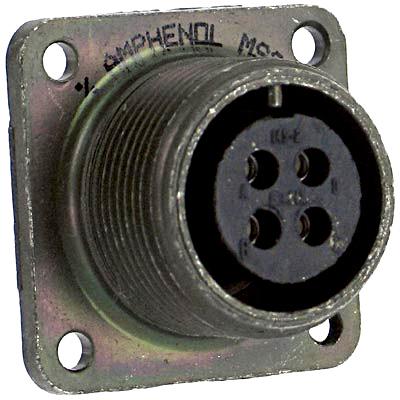

AMPHENOL INDUSTRIAL MS3102A204P Box Mounting Receptacle Connector
The MS3102A204P is a military-grade box mounting receptacle designed for reliable electrical connections in harsh environments. Crafted from high-quality aluminum alloy with durable cadmium plating and corrosion-resistant coatings, it features threaded coupling for secure mating. Suitable for applications requiring robust performance, this connector accommodates multiple insert arrangements with both solder and crimp contacts, supporting wire sizes from 22-0 to 12-0 AWG. It ensures high dielectric strength, environmental resistance, and vibration durability, making it ideal for military, industrial, and aerospace use.
AMPHENOL INDUSTRIAL MS3102A204P Box Mounting Receptacle Connector Specifications:
- Shell Material: Aluminum alloy with cadmium plating
- Thread: 0.6250-24NEF (UNEF)
- Full Thread Length: 0.297 inches
- Maximum Diameter: 0.562 inches
- Insert Arrangements: Supports multiple configurations with solder and crimp contacts
- Wire Sizes: 22-0 to 12-0 AWG
- Insulation Resistance: High dielectric strength for harsh environments
- Temperature Range: -55°C to +105°C
- Corrosion Resistance: Olive drab chromate after-treatment
- Operating Voltage: Up to 3000 VAC (RMS) at sea level
- Environmental Resistance: Vibration, moisture, pressure resistant
- Applications: Military, aerospace, industrial equipment
- Mounting: Four threaded holes for panel mounting
- Certifications: MIL-DTL-5015 compliance, UL and CSA recognized
Buy the Buy Amphenol MS3102A204P Box Mounting Receptacle Connector Online
Secure your projects with the Amphenol MS3102A204P box mounting receptacle, a high-performance connector built for demanding environments. Crafted from durable aluminum alloy with corrosion-resistant cadmium plating, it features threaded coupling for secure and vibration-proof connections. Supporting a variety of insert arrangements with solder and crimp contacts, it handles wire sizes from 22-0 to 12-0 AWG. Its high dielectric strength, environmental sealing, and suitability for military and aerospace use make it an essential component for reliable electrical systems. Order online now to benefit from fast delivery and technical support.
Order your Amphenol MS3102A204P box mounting connector today and ensure reliable, rugged connections for your military or industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MS3102A204P?
You can click on the BUY or RFQ button to purchase MS3102A204P from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MS3102A204P?
You can download the MS3102A204P datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MS3102A204P?
AMPHENOL INDUSTRIAL
