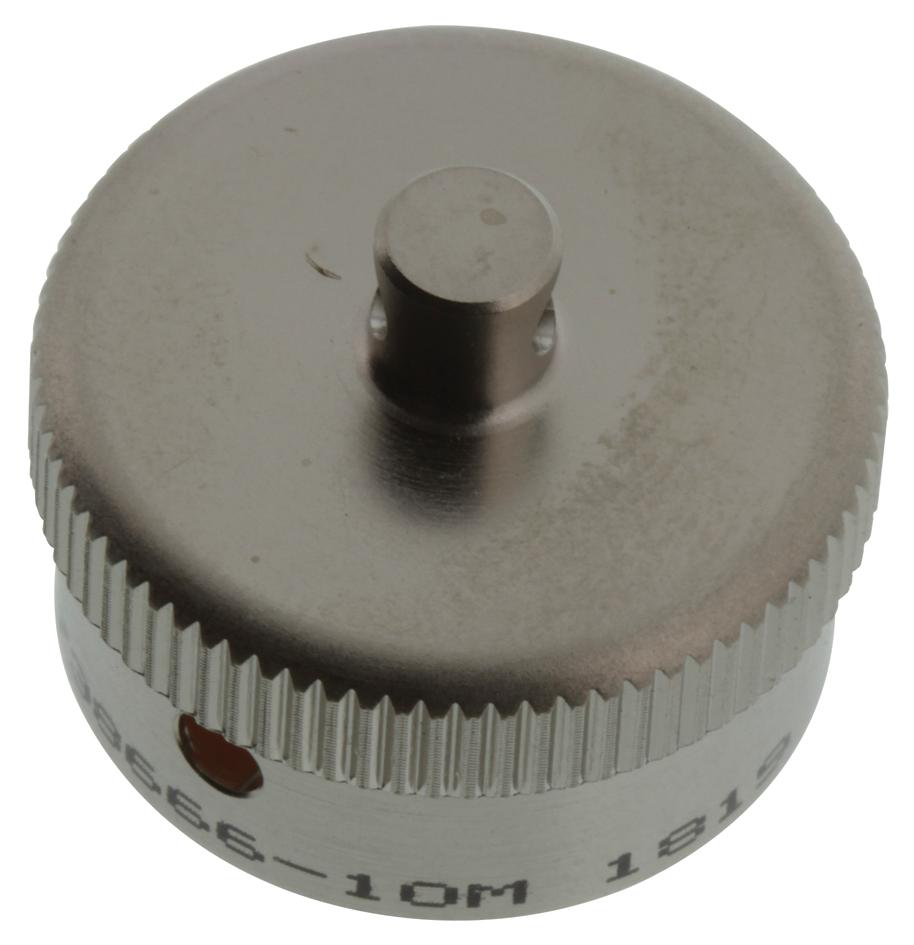

AMPHENOL INDUSTRIAL C1073866610M Micro-Connector
Amphenol's Micro-B Series connectors are designed for modern electrical equipment requiring a compact, lightweight, and high-density interface. Made with an aluminum shell and featuring a robust triple bayonet coupling mechanism, these connectors offer quick mating (quarter-turn) and excellent shell-to-shell EMI shielding. They include stamped and formed contacts and an internal EMI grounding spring to ensure reliable electrical performance and grounding. Suitable for various mounting options such as in-line and flange mounts, they are ideal for industrial and commercial applications including automotive systems, factory automation, robotics, security, telecommunications, and test & measurement environments. Built for high durability with high mating cycles and reliable EMI suppression, these connectors provide a cost-effective solution for demanding industrial requirements.
AMPHENOL INDUSTRIAL C1073866610M Micro-Connector Specifications:
- Shell Material: Aluminum
- Contact Material: Copper Alloy
- Contact Plating: Tin/Gold Plated
- Ingress Protection: IP54 with Heat Shrink, IP67 with Cable Gland Backshell
- Operating Temperature Range: -40°C to +125°C
- Vibration Test: In accordance with EIA-364-28D
- Environmental Resistance: Salt spray up to 500 hours (Gray ZnNi)
- Electrical Current: #22D Contact 3A
- Test Voltage: AC 500V RMS
- Recommended Operating Voltage: AC 250V RMS
- Insulation Resistance: 1000 MΩ at 500V
- Contact Resistance: 22 mΩ Max
- Mating Cycles: 500
- Size & Insert Arrangement: 7, 10, 15 poles; 22D contact size
- Shell Styles: Receptacle and plug options with flange and straight configurations
- Mounting Options: In-line, flange mount, with grounding and EMI features
Buy the Amphenol C1073866610M – Reliable Circular Connectors for Industrial Applications
Discover the trusted Micro-Connector series by Amphenol, combining a durable aluminum shell, quick quarter-turn bayonet coupling, and excellent EMI shielding. Designed for high-density and lightweight installations, these connectors support up to 500 mating cycles, ensuring long-term reliability in industrial automation, automotive systems, robotics, telecom, and security applications. With IP67 protection and corrosion-resistant plating, they are ideal for demanding environments. Accessible through our online store, secure your high-performance connectors today to streamline your electrical and communication projects efficiently and reliably.
Order your Amphenol Series C1073866610M high-performance micro connectors today and enhance your industrial, automation, or telecom projects with dependable quality.
