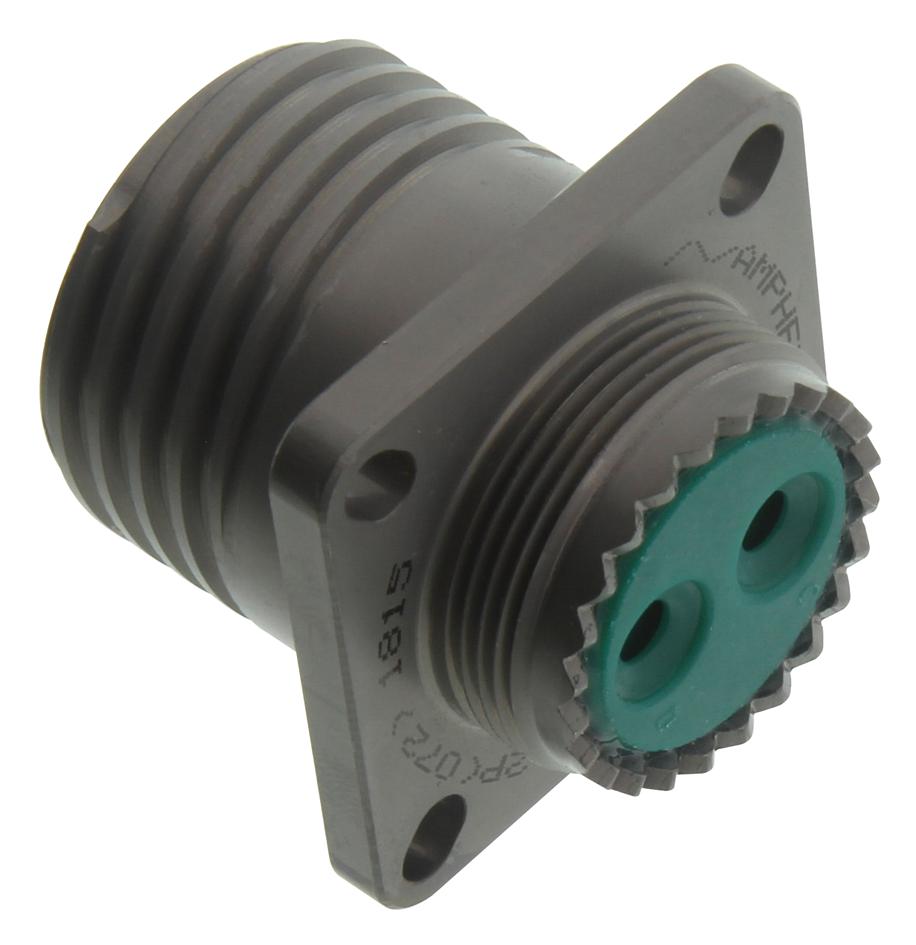

AMPHENOL INDUSTRIAL ALM00FD152P072 Circular Connector
The Amphe-Lite M3 series connector is based on MIL-DTL-38999 Series III standards, featuring corrosion-resistant Gray Zinc-Nickel plating, high vibration resistance, and EMI shielding. Designed for harsh environments, it utilizes acme threads for durability and quick-mating, with recessed pins to prevent contact damage. The connector offers multiple sizes and keyway options, a service life of at least 500 mating cycles, and an operating temperature range of -65°C to +125°C. It is suitable for control systems, aerospace, telecommunications, medical devices, and high-performance test equipment, ensuring reliable and durable electrical connections in demanding applications.
AMPHENOL INDUSTRIAL ALM00FD152P072 Circular Connector Specifications:
- Operating Temperature: -65°C to +125°C
- Mating Cycles: Minimum 500
- Insulation Resistance: > 100 MΩ under humid conditions
- Salt Spray Resistance: 500 hours with Gray ZnNi plating
- EMI Shielding: Minimum attenuation of 50dB between 100MHz to 10GHz
- Flammability: UL94 V-0
- Material: Silicone seals, dielectric inserts, stainless steel contact shroud
- Coupling: Acme threaded with self-locking feature
- Vibration Resistance: Sine and random vibration tested
- Shock Resistance: 300g peak, 3ms half-sine
- Connectors: Multiple sizes (Shell sizes 13 to 25) and keyway options
- Maximum Operating Voltage: 600 VRMS
- Current Ratings: Ranging from 12A to 25A depending on contact size
- Ingress Protection: IP67 rated when mated
- Material Plating: Gray Zinc-Nickel (suffix 072)
Buy the Amphenol Series MIL-DTL-38999: High-Performance Circular Connector ALM00FD152P072
Order the Amphenol ALM00FD152P072 circular connector online now to benefit from our durable, corrosion-resistant design, EMI shielding, and quick-mating features. This connector ensures reliable electrical connections in demanding environments such as aerospace, control systems, and medical instrumentation. Engineered for harsh conditions, it withstands high vibration, salt spray, and temperature extremes, offering a service life of at least 500 mating cycles. Shop online today to secure a high-quality, dependable interconnect component suitable for your industrial or aerospace project needs.
Get Amphenol ALM00FD152P072 today—built for reliability, corrosion resistance, and harsh environment performance in aerospace and industrial applications.
