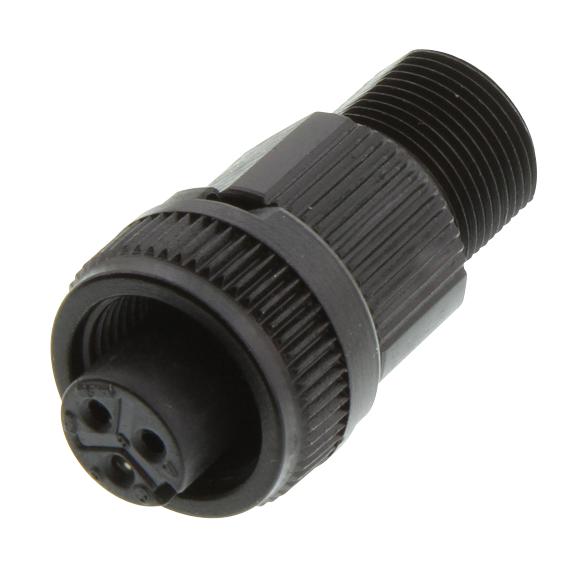

AMPHENOL INDUSTRIAL DL3106A10SL3S Three-Position Straight Plug Connector
The DL3106A10SL-3S is a three-position, general-duty straight plug connector with socket contacts and a 10SL-3 insert arrangement. It features a pre-earth (ground) contact designed to provide a safety path for stray voltage, preventing harm to operators and sensitive equipment. The connector employs shells and inserts modeled after MIL-C-5015 standards, made from aluminum with solder cup contacts. When mated, it meets IP67 protection rating, ensuring resistance to water and dust. Key features include a main joint gasket for moisture sealing, black zinc alloy plating, voltage ratings of 350VDC and 250VAC, dielectric withstand voltage of 2000 VRMS AC, and insulation resistance greater than 5000 MΩ at 500VDC. It is suitable for defense, military, and aerospace applications.
AMPHENOL INDUSTRIAL DL3106A10SL3S Three-Position Straight Plug Connector Specifications:
- Shell Style: Straight plug (3106A)
- Number of Contacts: 3
- Contact Type: Socket
- Contact Size: #16
- Voltage Rating DC: 350V
- Voltage Rating AC: 250V
- Dielectric Withstand Voltage: 2000 VRMS
- Insulation Resistance: >5000 MΩ at 500VDC
- Shell Material: Aluminum
- Plating: Black zinc alloy (option for green zinc plating)
- Water and Dust Resistance: IP67 rated when mated
- Current Rating: 13A for #16 AWG wire
- Applicable Standards: MIL-C-5015, CE compliant, DIN VDE 0627 certified
- Appropriate for: Aerospace, military, automation, and process control applications
Buy the Amphenol DL3106A U– Reliable Connectors for Industrial Applications
Enhance your industrial safety and reliability by ordering the Amphenol DL3106A straight plug connector online today. Featuring a pre-earth ground contact, IP67 water and dust resistance, robust aluminum shell, and solder cup contacts, this connector is ideal for demanding environments like aerospace, military, and automation. With a voltage rating of 350VDC and 250VAC, dielectric withstand voltage of 2000 VRMS, and insulation resistance exceeding 5000 MΩ, it guarantees performance and safety for critical applications. Purchase online now for fast delivery and superior quality.
Order your Amphenol Series DL3106A connector today and ensure dependable safety with our high-quality, IP67-rated straight plug for industrial or aerospace projects.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL DL3106A10SL3S?
You can click on the BUY or RFQ button to purchase DL3106A10SL3S from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part DL3106A10SL3S?
You can download the DL3106A10SL3S datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of DL3106A10SL3S?
AMPHENOL INDUSTRIAL
