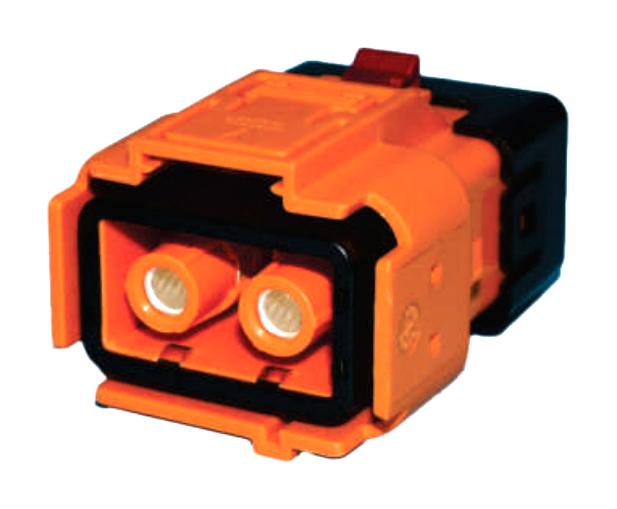

AMPHENOL INDUSTRIAL ELPA2A25 electric power connector
The ePower-Lite connector series by Amphenol is designed for hybrid electric vehicles, heavy equipment, and industrial applications. Featuring patented RADSOK® technology, these lightweight plastic connectors provide higher amperage, lower T-rise, and improved reliability. Available in 2-, 3-, and 4-pole configurations, they support up to 120A with IP67/IP69k ratings when mated. The compact, field-repairable design includes optional EMI shielding, HVIL, and keyway features to prevent incorrect mating, making them ideal for energy storage, PDU, and fuel cell systems.
AMPHENOL INDUSTRIAL ELPA2A25 electric power connector Specifications:
- Current: up to 120A (5.7mm version), 70A (3.6mm version)
- Voltage Rating: 600V AC / 800V DC
- Contact Size: 5.7mm / 3.6mm
- Number of Poles: 2, 3, or 4
- Ingress Protection: IP67 and IP69k when mated
- Temperature Range: -40°C to 125°C
- Flammability: UL 94V-0
- Material: Plastic shell, high-durability construction
- Interlock: HVIL (High Voltage Interlock Loop)
- Shielding: EMI shielding available
- Durability: 100 mating cycles
- Features: Field installable, repairable, low mating force, keyway to prevent incorrect mating
- Operating Test Voltage: up to 3000V AC for 3.6mm, 2500V AC for 5.7mm
- Certifications: UL, IEC/TUV, RoHS, IP67/IP69k
Buy the Amphenol Series ePower-Lite: ELPA2A25
Order the Amphenol ePower-Lite connector ELPA2A25 online today. This high-current, IP-rated power connector features RADSOK® technology for superior performance in EVs, heavy equipment, and industrial power systems. Its compact, lightweight plastic shell offers easy installation and field repairability. With support for up to 120A current, HVIL, EMI shielding, and a durable design, this connector ensures safety, efficiency, and long-lasting performance. Perfect for demanding environments such as energy storage, PDU, and fuel cell applications.
Get Amphenol ELPA2A25 today—built for high current, ruggedness, and reliable electric vehicle applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ELPA2A25?
You can click on the BUY or RFQ button to purchase ELPA2A25 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ELPA2A25?
You can download the ELPA2A25 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ELPA2A25?
AMPHENOL INDUSTRIAL
