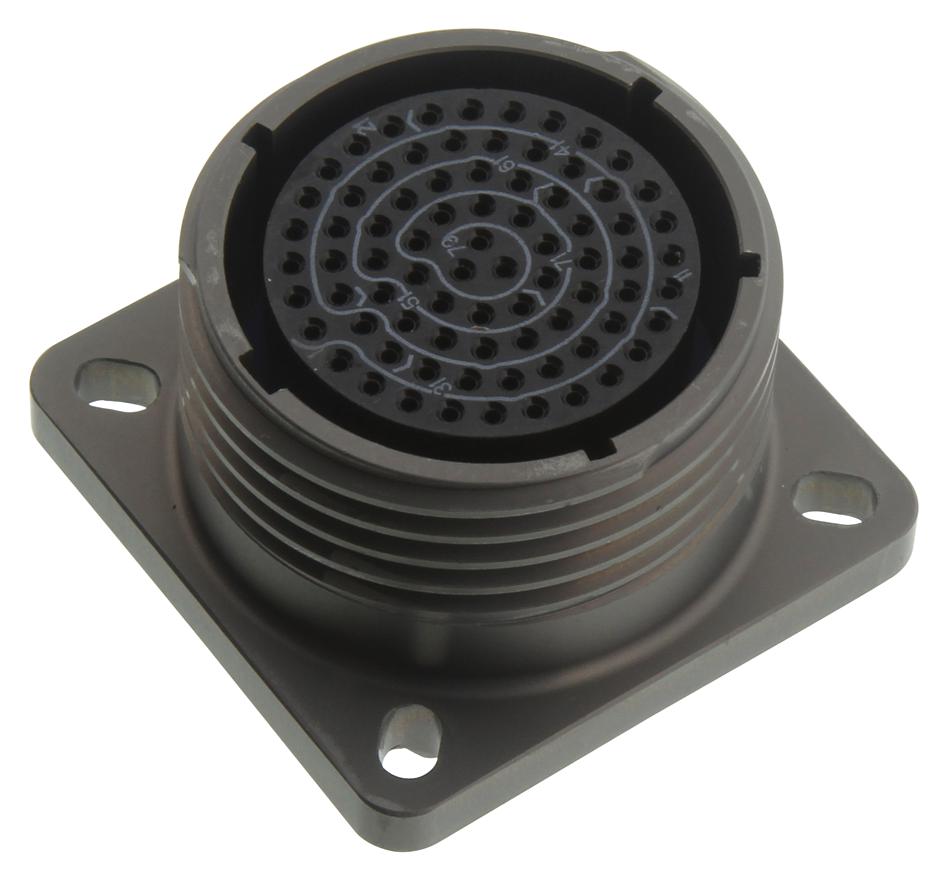

AMPHENOL INDUSTRIAL ALM00FD2135S072 Circular Connector
Amphenol's Amphe-Lite M3 series is designed for harsh environments, offering quick-mating bayonet coupling, superior silicone seals for fluid resistance, and 100% scoop-proof shells for reliable contact protection. These high-density connectors are suitable for control systems, aerospace, telecommunications, and medical instrumentation. Constructed with durable dielectric inserts, gray ZnNi plating for corrosion resistance, and rated for IP67 in mated condition, they ensure high performance in demanding applications, with a minimum of 500 mating cycles and temperature resilience from -65°C to +125°C.
AMPHENOL INDUSTRIAL ALM00FD2135S072 Circular Connector Specifications:
- Operating Temperature: -65°C to +125°C
- Relative Humidity: Up to 98% at 40°C
- Mating Cycles: Minimum 500
- Insulation Resistance: > 100 MΩ in humid conditions
- Flammability: UL94 V-0
- Salt Spray Resistance: Gray ZnNi plating for 500 hours
- Vibration Resistance: Sine and random vibration tested over specified frequencies and accelerations
- Shock Resistance: 3ms half-sine, peak 300g
- Contact Sizes: 22D (0.76mm), 20 (1.00mm), 16 (1.6mm), 12 (2.4mm)
- Current Ratings vary by contact size, e.g., 22D: 12A, 20: 75A, 16: 13A, 12: 23A
- Shell Sizes: 09, 11, 13, 15, 17, 19, 21, 23, 25
- Shell Material: Aluminum with zinc nickel plating
- Sealing: Silicone seals for fluid resistance
- Connectivity: Bayonet and threaded coupling options
- Ingress Protection: Rated IP67 when mated
- Compatibility: MIL-DTL-38999 Series III standards
Buy the Buy Amphenol Circular Connector Part Number ALM00FD2135S072 Online
Order the Amphenol circular connector ALM00FD2135S072 online today to benefit from our advanced sealing, quick-mating bayonet design, and robust construction. Ideal for aerospace, control systems, and harsh environments, this connector features superior silicone seals for fluid resistance, corrosion-resistant gray ZnNi plating, and a durable dielectric insert. With a species rated IP67 when mated, it provides high reliability, multiple keyway options, and supports over 500 mating cycles. Purchase now to ensure secure, high-performance connections in critical applications.
Buy Amphenol ALM00FD2135S072 now and experience unmatched reliability and high-performance fluid-resistant connections for demanding applications.
