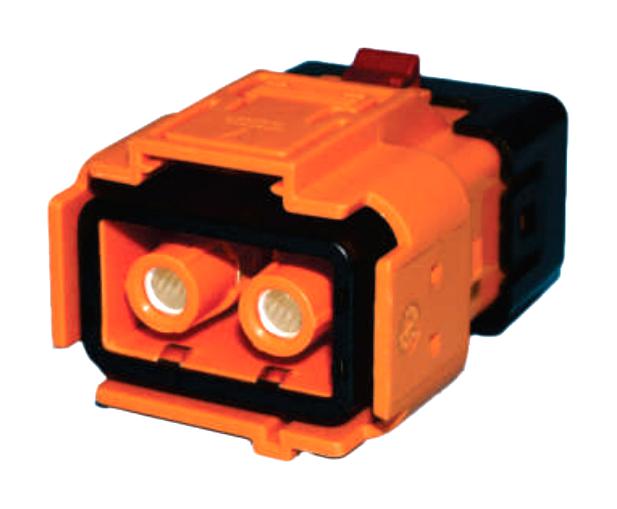

AMPHENOL INDUSTRIAL ELPA2Z16 high current connector
The ePower-Lite connector series by Amphenol is designed for high-current, hybrid, and electric vehicle applications, featuring RADSOK® technology for improved electrical performance. These compact, lightweight plastic connectors are available in 2-pole, 3-pole, and 4-pole options, with current ratings up to 70A and 120A. They offer IP67/IP69k protection, EMI shielding, and high voltage interlock looping (HVIL), making them ideal for demanding automotive and heavy equipment environments. The rugged design ensures durability with 100,000 mating cycles and compliance with UL 94V-0 flammability standards.
AMPHENOL INDUSTRIAL ELPA2Z16 high current connector Specifications:
- Current Ratings: 25A (2.5mm), 35A (4mm), 50A (6mm), 70A (10mm), 120A (25mm)
- Voltage Ratings: Up to 1000V DC, 600V AC
- Contact Size: 3.6mm and 5.7mm options
- Material: Plastic shell, UL 94V-0 flammability
- Protection: IP67/IP69k when mated, Touch-proof IEC 60529
- Operating Temperature: -40°C to 125°C
- Durability: 100,000 mating cycles
- Features: HVIL, EMI shielding, secondary lock, keyway design
- Size options: 2-pole, 3-pole, 4-pole variants
- Test Voltage: Up to 3000V AC for certain models
- Mating Force: Low, with push-to-release feature
- Compliance: RoHS, UL, IEC, ATEX, IECEx certifications
Buy the Amphenol ELPA2Z16 – Reliable High-Current Connectors for Industrial Applications
Enhance your electric vehicle or heavy equipment applications with the durable and reliable ePower-Lite connector series by Amphenol. Designed for high current, these compact connectors feature RADSOK® technology for superior electrical performance, including up to 120A current capacity, IP67/IP69k sealing, and EMI shielding. They are field installable, repairable, and certified for safety and durability, ensuring a long service life with up to 100,000 mating cycles. Order online today to benefit from fast delivery and expert support for your industrial needs.
Buy Amphenol ELPA2Z16 now and experience unmatched reliability and high-performance electrical connections for demanding industrial environments.
