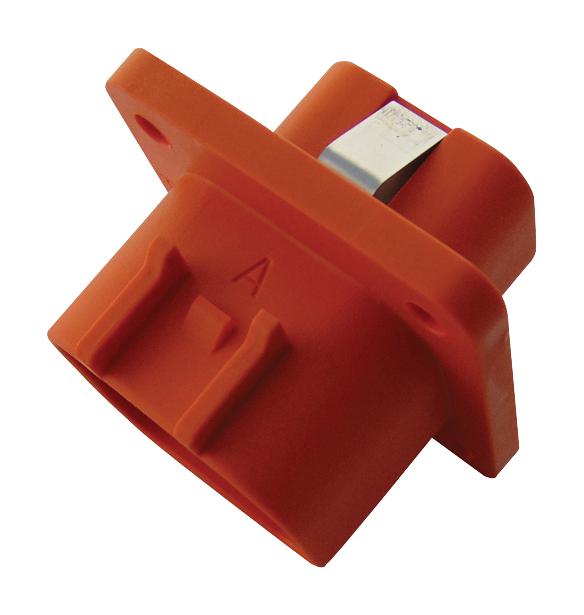

AMPHENOL INDUSTRIAL ELR4A04 Power Connector
The ePower-Lite connector series by Amphenol is a lightweight, compact plastic power connector designed for hybrid electric vehicles and heavy equipment. Featuring patented RADSOK® technology, it provides higher amperage, lower T-rise, and reduced resistance, enabling up to 50% more current through the same size pin. Available in 2-pole, 3-pole, and 4-pole configurations, it offers IP67/IP69k sealing when mated, HVIL, EMI shielding, and a quick lock push-to-release design. This rugged connector withstands temperatures from -40°C to 125°C and is ideal for EV, hybrid, and industrial applications.
AMPHENOL INDUSTRIAL ELR4A04 Power Connector Specifications:
- Contact Size: 3.6mm and 5.7mm variants
- Current Capacity: up to 70A (3.6mm), up to 120A (5.7mm)
- Voltage Rating: 1000V DC / 600V AC
- Temperature Range: -40°C to 125°C
- Ingress Protection: IP67 & IP69k when mated
- Durability: 100 mating cycles
- Features: HVIL, EMI shielding, quick lock, keyway to prevent incorrect mating, UL94V-0 flammability rating
- Construction: Plastic shell, lightweight, compact footprint
- Application: Used in hybrid/electric vehicles, heavy equipment, batteries, PDU, fuel cell controllers
Buy the Amphenol Series ePower-Lite: ELR4A04
Experience the high-performance and reliability of the Amphenol ePower-Lite power connector series, engineered for electric vehicles, heavy machinery, and industrial applications. Featuring RADSOK® technology for up to 50% more current, these connectors are lightweight, compact, and durable with IP67/IP69k sealing and HVIL safety features. They support up to 120A current, operate in temperatures from -40°C to 125°C, and are field-repairable for convenience. Secure your project with connectors designed for rugged environments and high electrical demands—available for online purchase today.
Order your Amphenol Series ePower-Lite ELR4A04 today and equip your EV or industrial project with the reliable, high-performance connector technology.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ELR4A04?
You can click on the BUY or RFQ button to purchase ELR4A04 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ELR4A04?
You can download the ELR4A04 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ELR4A04?
AMPHENOL INDUSTRIAL
