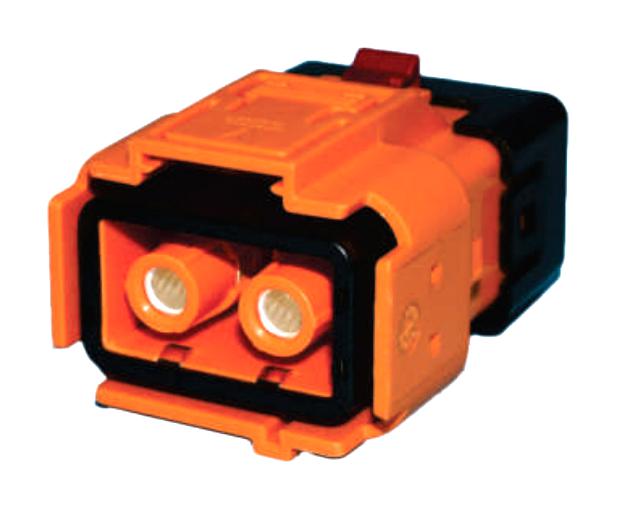

AMPHENOL INDUSTRIAL ELPA2Y2511 Power Connectors
The ePower-Lite Series from Amphenol features compact, lightweight plastic power connectors designed for hybrid electric vehicles, heavy equipment, and industrial applications. Incorporating patented RADSOK® technology, these connectors allow higher current flow with lower resistance, ensuring increased reliability and durability even in harsh environments. Available in 2-pole, 3-pole, and 4-pole variants with IP67 & IP69k ratings when mated, they support up to 120A currents, feature touch-proof design, and are field-installable and repairable. These robust connectors are compliant with UL 94V-0 flammability standards, suited for demanding electrical and automotive needs.
AMPHENOL INDUSTRIAL ELPA2Y2511 Power Connectors Specifications:
- Current: Up to 120A depending on size
- Voltage Rating: 600V AC / 800V DC
- Poles: 2, 3, or 4 poles
- Material: Plastic shell, lightweight
- Temperature Range: -40°C to 125°C
- Ratings: IP67 when mated, IP69k
- Flammability: UL94V-0
- Contact Size: 5.7mm
- HVIL: Yes
- Touch-proof: Yes (IEC 60529)
- Durability: 100 mating cycles
- Certification: UL, IEC/TUV, RoHS
- Connector Type: Receptacle and Plug options
- Field installable and repairable design
- RADSOK® technology enhances current capacity and cycle life
- Low mating/un-mating force, quick lock, push-to-release
- Keyway design prevents incorrect mating
Buy the Buy Amphenol ELPA2Y2511 Power Connector Part Number ELPA2Y2511 Online
Enhance your electrical systems with the durable and high-performing Amphenol power connectors. Designed with RADSOK® technology, these connectors deliver up to 120A, ensuring optimal current flow with minimal resistance. Featuring IP67/69k ratings, they provide excellent environmental protection and are suitable for hybrid electric vehicle, heavy equipment, and industrial applications. Easy to install, repair, and compatible with various configurations, they offer a cost-effective solution for high-power electrical needs. Secure your purchase online today for reliable, safe, and efficient interconnect solutions.
Order your Amphenol Series ELPA2Y2511 power connector today and ensure reliable, high-current connections for electric vehicles and industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ELPA2Y2511?
You can click on the BUY or RFQ button to purchase ELPA2Y2511 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ELPA2Y2511?
You can download the ELPA2Y2511 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ELPA2Y2511?
AMPHENOL INDUSTRIAL
