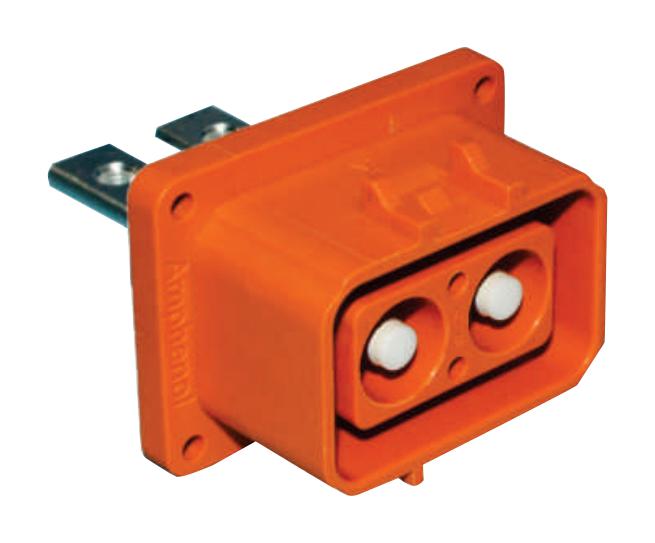

AMPHENOL INDUSTRIAL ELRA2A25 Power Connector
The ePower-Lite series is a lightweight, plastic power connector designed for hybrid and electric vehicles as well as heavy equipment. Featuring patented RADSOK® technology, it offers higher amperage capacity, lower voltage drop, and improved reliability. Available in 2-pole, 3-pole, and 4-pole configurations, these connectors support up to 120A current, are field-repairable, and provide IP67/IP69k sealing when mated. Suitable for demanding harsh environments, they incorporate EMI shielding, HVIL, and are UL94V-0 rated for flammability, making them ideal for EV, hybrid, and industrial power applications.
AMPHENOL INDUSTRIAL ELRA2A25 Power Connector Specifications:
- Current: Up to 120A depending on size (2.5mm, 4mm, 6mm, 10mm, 25mm)
- Voltage Rating: Up to 1000V DC or 600V AC
- Contact Material: Not specified but designed for high power density
- Operating Temperature: -40°C to 125°C
- Ingress Protection: IP67 and IP69k (when mated)
- Flammability: UL94V-0
- Shielding: EMI shielding
- HVIL: High Voltage Interlock Loop
- Durability: 100 mating cycles minimum
- Contact Size: Varies with series (2.5mm, 4mm, 6mm, 10mm, 25mm)
- Assembly: Field replaceable, crimp termination
- Locking: Quick lock and push-to-release design, secondary lock option
- Material: Plastic shell, lightweight, compact footprint
- Others: Touch-proof (IEC 60529), IP67 & IP69k when mated, RoHS compliant
Buy the Amphenol Series ePower-Lite: ELRA2A25
Purchase the Amphenol Series ePower-Lite power connector online today to ensure your electric vehicle or industrial project benefits from high performance and durability. These connectors support up to 120A and feature patented RADSOK® technology for lower resistance, higher efficiency, and increased cycle life. Designed with a lightweight plastic shell, they offer IP67/IP69k sealing and are field-repairable, making installation quick and maintenance straightforward. Perfect for demanding applications in EVs, heavy machinery, and energy storage systems, securing your reliable power distribution needs.
Order your Amphenol Series ePower-Lite ELRA2A25 today and enjoy reliable, high-current power connections for hybrid and electric vehicles.
