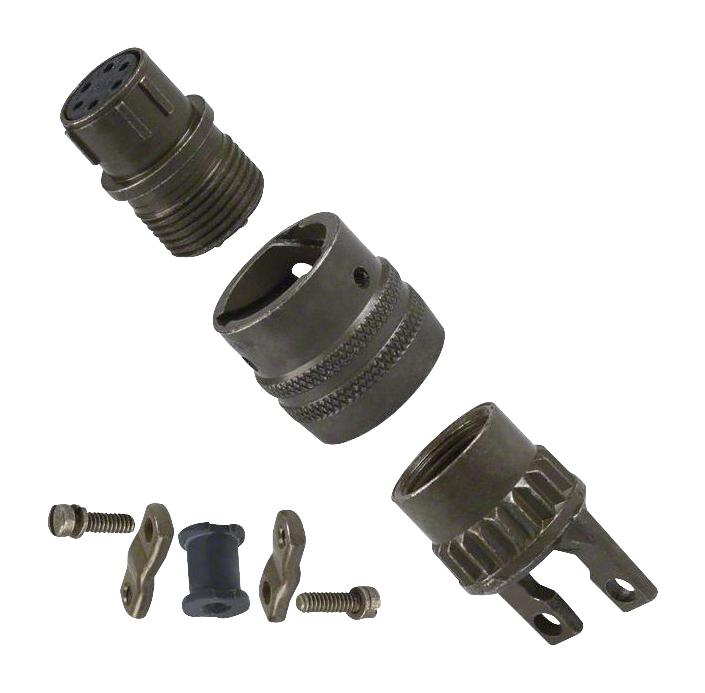

AMPHENOL INDUSTRIAL PT06E106S476 Miniature Connector
The PT06E106S476 is a miniature cylindrical connector featuring a bayonet coupling, solder contacts, and environmental resistance. Designed for rugged applications, it offers a maximum operating voltage of 900 VAC at sea level, with a shell size of 10 and insert arrangement 6. Constructed from durable aluminum with a zinc cobalt plating finish, it includes a resilient neoprene gasket for superior moisture sealing and electrical isolation. The connector supports a wide temperature range from -55°C to +125°C, suitable for industrial and military environments requiring high reliability and precise interconnections.
AMPHENOL INDUSTRIAL PT06E106S476 Miniature Connector Specifications:
- Shell Size: 10
- Insert Arrangement: 6
- Contact Type: Solder
- Material: Aluminum with zinc cobalt plating
- Finish: Olive drab zinc cobalt
- Operating Voltage: Up to 900 VAC RMS at sea level
- Operating Temperature Range: -55°C to +125°C
- Maximum Current: 5.0 amps per contact
- Dielectric Withstanding Voltage: 1500 volts RMS (Service Rating I)
- Vibration Resistance: Exceeds MIL-E-5272 Procedure II
- Helium Leak Rate: Less than 1.0 x 10⁻⁸ cc/sec at 15 psi differential
- Physical Shock Resistance: 100 G's
- Moisture Sealing: Neoprene gasket with resilient seal
- Mating System: 3-point bayonet lock with 5 key/keyway
- Dimensions (approx.): Length 1.250 inches, Diameter 0.500 inches
- Application: Military, industrial, rugged environments requiring high reliability
Buy the Buy Amphenol Miniature Cylindrical Connector Part Number PT06E106S476 Online
Purchase the Amphenol Miniature Connector PT06E106S476 online to ensure high-performance connections for harsh environments. Featuring a bayonet coupling, solder contacts, and environmental resistance, it offers reliable electrical performance from -55°C to +125°C at voltages up to 900 VAC. Constructed from durable aluminum with zinc cobalt plating, the connector includes a neoprene gasket for superior moisture sealing and electrical isolation, making it ideal for military and industrial applications where dependability is critical.
Buy Amphenol PT06E106S476 now and experience unmatched reliability and performance in rugged industrial and military interconnections.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL PT06E106S476?
You can click on the BUY or RFQ button to purchase PT06E106S476 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part PT06E106S476?
You can download the PT06E106S476 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of PT06E106S476?
AMPHENOL INDUSTRIAL
