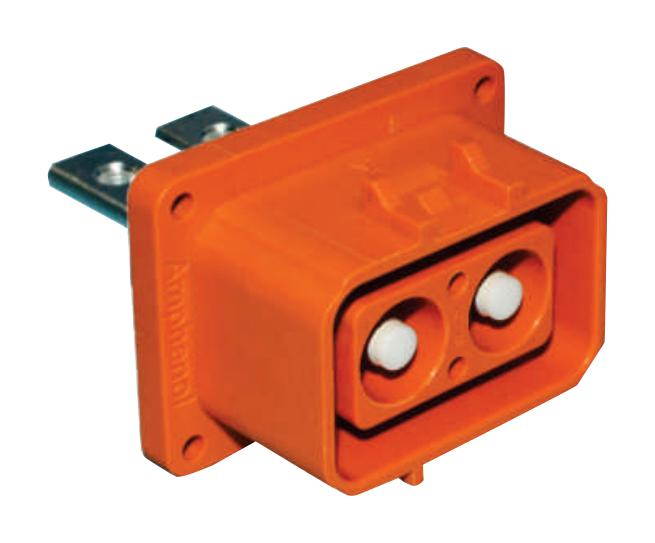

AMPHENOL INDUSTRIAL ELRA2Z2501 ePower-Lite Power Connector
The ePower-Lite series offers lightweight, robust plastic power connectors designed for hybrid electric vehicles, heavy equipment, and industrial applications. Featuring RADSOK® technology, these connectors support higher amperage, lower voltage drop, and reduced resistance, with versions carrying up to 70A and 120A. The series includes 2-pole, 3-pole, and 4-pole configurations, with IP67/IP69k ratings when mated, touch-proof designs, and UL94V-0 flammability rating. Field installable and repairable, they are ideal for EV, hybrid, battery packs, and other harsh environment uses, ensuring durability and high performance.
AMPHENOL INDUSTRIAL ELRA2Z2501 ePower-Lite Power Connector Specifications:
- Current Ratings: 25A (2.5mm), 35A (4mm), 50A (6mm), 70A (10mm), 120A (25mm)
- Voltage Rating: up to 1000V DC, 600V AC
- Contact Size: 3.6mm, 5.7mm
- Ingress Protection: IP67 & IP69k when mated
- Operating Temperature Range: -40°C to 125°C
- Touch-Proof: IEC 60529 IP2XB
- Flammability: UL 94V-0
- Durability: 100 mating cycles
- Mechanical: Field installable, repairable, quick locking, secondary lock design
- Interconnect Technology: RADSOK® twisted grid technology for higher current, lower T-rise, reduced resistance
- Compliance: RoHS
- Construction: Lightweight plastic shell, compact design, keyway prevents incorrect mating
- Additional features: EMI shielding, HVIL (High Voltage Interlock Loop)
Buy the Amphenol Series ePower-Lite: ELRA2Z2501
Enhance your electric vehicle or industrial system with the lightweight, durable Amphenol ePower-Lite connector. Featuring RADSOK® technology, these connectors support up to 120A, ensuring higher current capacity with lower resistance and T-rise. The IP67/IP69k rated, field-repairable design makes installation and maintenance straightforward. Suitable for harsh environments, the ePower-Lite connectors deliver outstanding reliability, safety, and performance. Easy to install, with compact size and keyway design preventing mis-mating, these connectors are the perfect choice for EVs, heavy machinery, and industrial applications worldwide.
Buy Amphenol ePower-Lite connector now and experience unmatched reliability and high-current performance for electric and hybrid vehicles.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ELRA2Z2501?
You can click on the BUY or RFQ button to purchase ELRA2Z2501 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ELRA2Z2501?
You can download the ELRA2Z2501 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ELRA2Z2501?
AMPHENOL INDUSTRIAL
