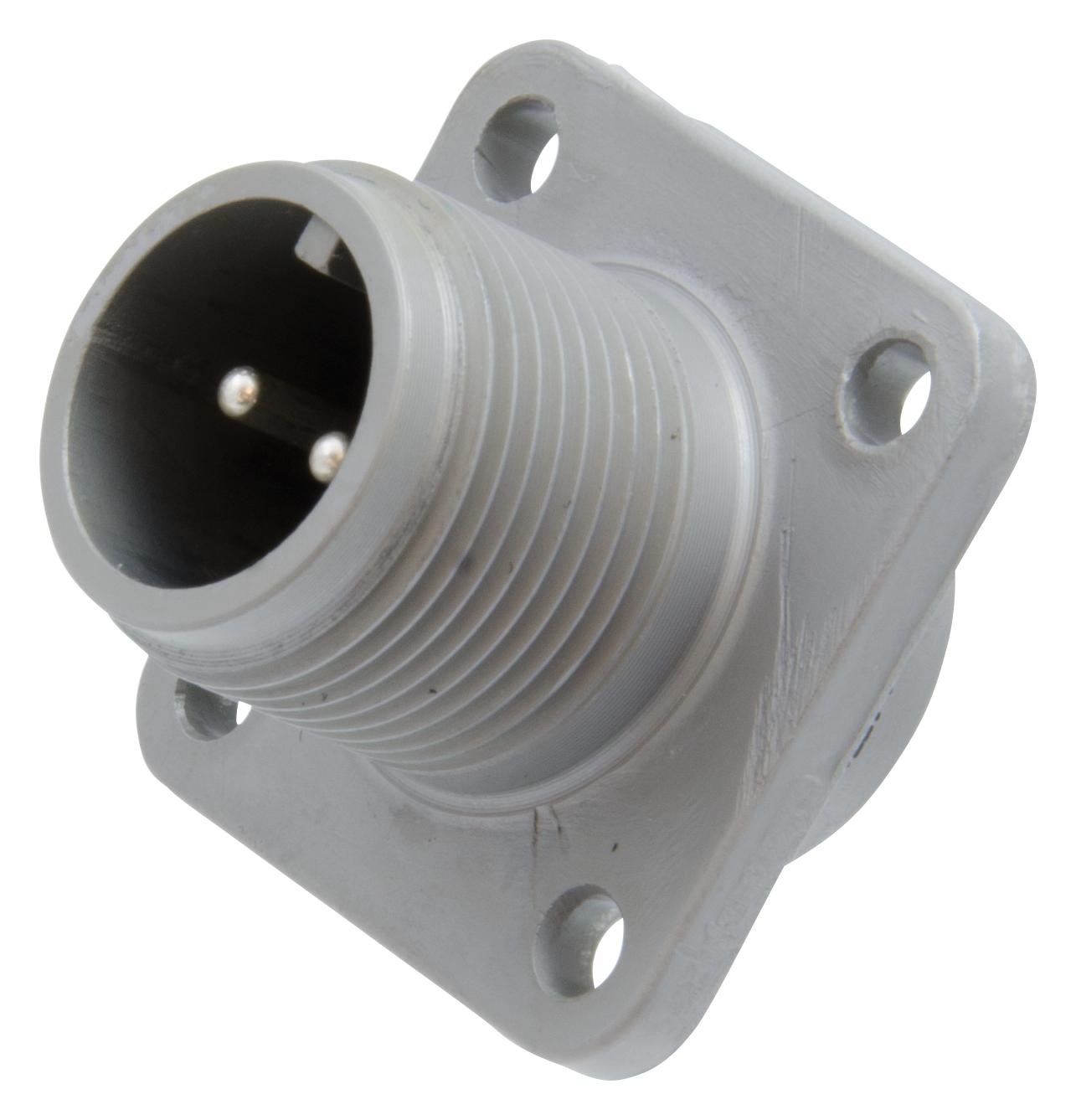

AMPHENOL INDUSTRIAL ACS02A14S6P072 Heavy Duty Connector
The ACS02A14S6P072 is a heavy-duty, environmentally resistant cylindrical connector designed for industrial, military, and aerospace applications. It features a durable aluminum shell with a threaded coupling for secure connection, resilient neoprene inserts for moisture protection, and gold-plated contacts capable of handling high current loads. Suitable for use in harsh environments, this connector supports a wide voltage range up to 3000 VAC (RMS) at sea level. Its compact design includes a single key/keyway polarization for ease of assembly and reliable operation in critical high-vibration applications, ensuring long-lasting performance under demanding conditions.
AMPHENOL INDUSTRIAL ACS02A14S6P072 Heavy Duty Connector Specifications:
- Shell Material: High grade aluminum alloy
- Shell Finish: Electrically conductive cadmium plated with olive drab chromate after-treatment
- Contact Material: Gold-plated copper alloy
- Electrical Rating: Up to 3000 VAC (RMS) at sea level
- Insert Material: Resilient neoprene
- Operating Temperature: -55°C to +125°C
- Shell Style: Threaded coupling with single key/keyway polarization
- Number of Contacts: 6 (size 16) or 4 (size 14), as per part number
- Insert Arrangement: Suitable for up to 19 contact patterns from 1 to 104 circuits
- Features: Environmentally resistant, durable, field-proven design, with optional hermetic configurations
- Application: Military ground support, shipboard, and industrial environments requiring robust, high-voltage connections
- Insertion Force: Low for quick assembly and disassembly
- Environmental Resistance: Vibration, moisture, pressure, and temperature extremes
Buy the Amphenol Series 5015 ACS02A14S6P072: Heavy Duty Environmental Connector
Order the Amphenol ACS02A14S6P072 heavy-duty environmental connector online today to ensure reliable power and signal transfer in harsh conditions. This versatile cylindrical connector features a rugged aluminum shell, resilient neoprene inserts, and gold-plated contacts capable of handling high voltages up to 3000 VAC at sea level. Its secure threaded coupling and single key/keyway polarization ensure easy and dependable connections, even under extreme vibration, moisture, and pressure. Perfect for military, aerospace, and industrial applications, this connector guarantees long-lasting performance and high environmental resistance in demanding operational environments.
Buy Amphenol ACS02A14S6P072 connector now and experience unmatched durability and high voltage reliability in demanding industrial and military environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ACS02A14S6P072?
You can click on the BUY or RFQ button to purchase ACS02A14S6P072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ACS02A14S6P072?
You can download the ACS02A14S6P072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ACS02A14S6P072?
AMPHENOL INDUSTRIAL
