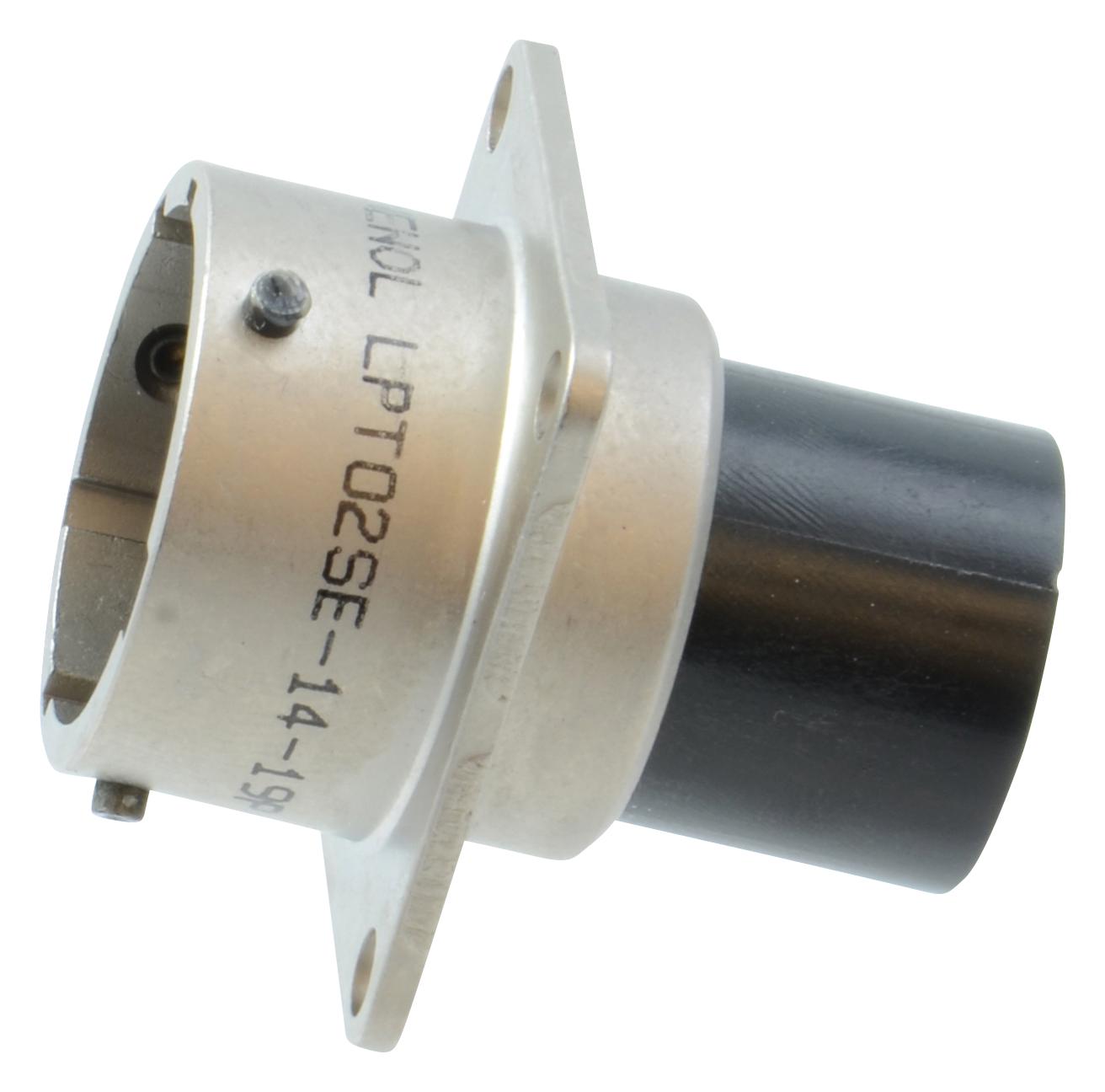

AMPHENOL INDUSTRIAL LPT02SE124P027LC Industrial Connector
The Amphenol Industrial LPT Series is a lightweight, aluminum shell connector based on the MIL-C-26482 Series I style and the original PT series. It features a standard PT shell with a coupling nut, supporting wire gauges from 22 AWG to 12 AWG, and offers quick, positive bayonet coupling with a 5-key/keyway system to prevent mismating. Available in five styles including box, jam nut, straight plug, wall, and cable connecting receptacles, it provides high environmental resistance and versatile configurations for industrial and harsh environment applications.
AMPHENOL INDUSTRIAL LPT02SE124P027LC Industrial Connector Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic
- Material: Copper alloy
- Contact Plating: Tin/Nickel/Gold
- Termination: Crimp
- Temperature Range: -40°C to +125°C
- Ingress Protection: IP67 & IP69K in mated condition
- Test Current: 7.5A (20# contact), 13A (16# contact), 23A/35A (12# with RADSOK)
- Operating Voltage: 500V
- Test Voltage AC: 2300V
- Mating Cycles: 500
- Connector Styles: Box mounting, Jam nut, Straight plug, Wall mounting, Cable connecting
- Shell Sizes: #8 to #24
- Ingress Protection Options: Dust cover, IP67 cap
- Temperature Range: -40°C to 125°C
Buy the Buy Amphenol LPT Series Industrial Connector Part Number LPT02SE124P027LC Online
Experience the durability and versatility of the Amphenol LPT Series industrial connectors. Designed for harsh environments, these lightweight aluminum connectors offer secure bayonet coupling, multiple styles, and high IP ratings. With support for wire gauges from 22 to 12 AWG, they are ideal for automation, instrumentation, and heavy-duty industrial applications. Easy to assemble and with a proven performance record, purchase online today to enhance your electrical interconnection reliability in challenging conditions.
Buy Amphenol LPT Series connectors now and enjoy quick coupling, high environmental protection, and versatile configurations for demanding industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL LPT02SE124P027LC?
You can click on the BUY or RFQ button to purchase LPT02SE124P027LC from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part LPT02SE124P027LC?
You can download the LPT02SE124P027LC datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of LPT02SE124P027LC?
AMPHENOL INDUSTRIAL
