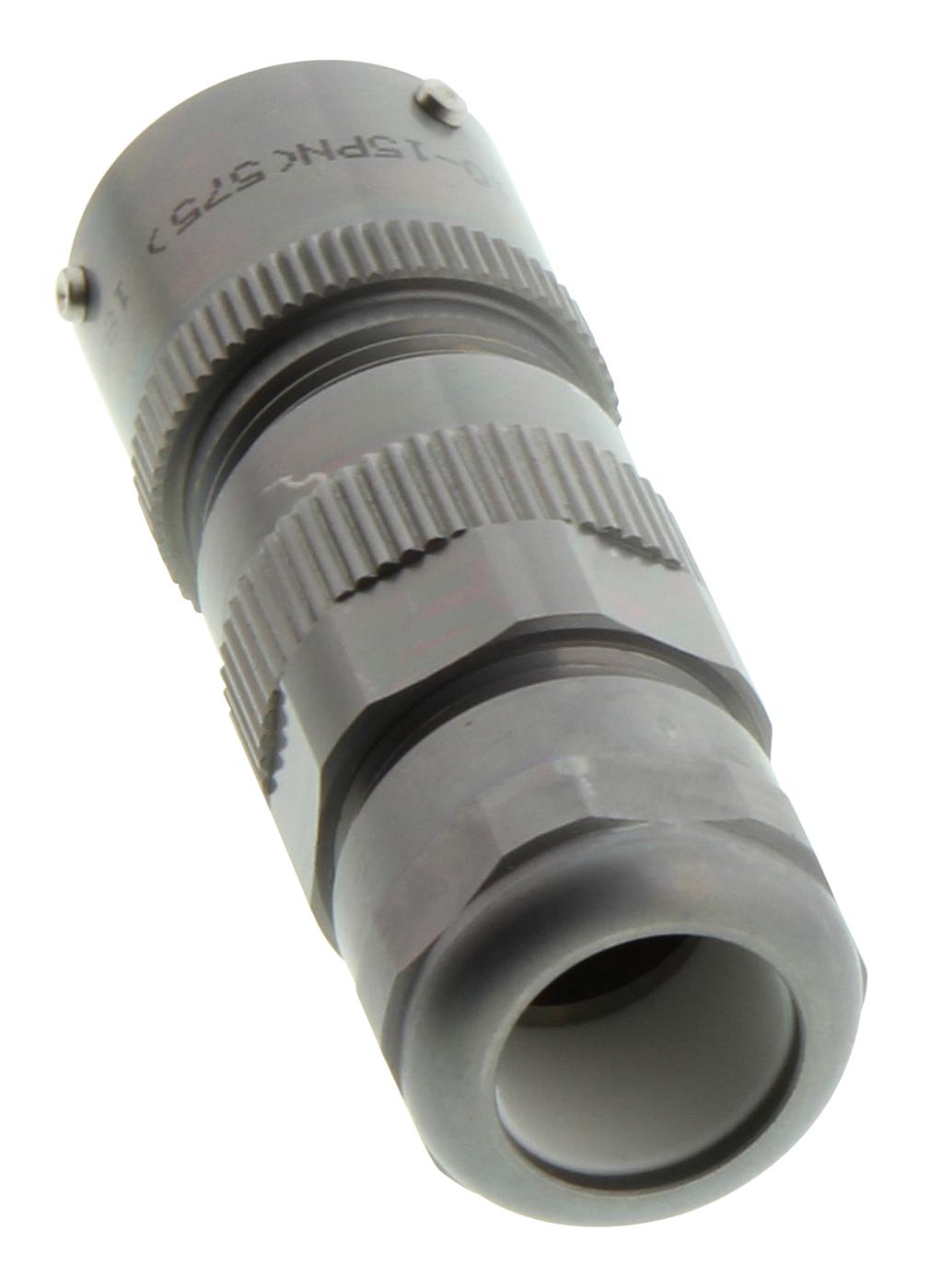

AMPHENOL INDUSTRIAL MB01TE1015PN575 Micro-B Connector
Amphenol's Micro-B Series Connectors and Contacts are engineered for compact, high-performance industrial applications, offering reliable EMI shielding, lightweight aluminum shells with triple bayonet coupling, and various mounting options. Designed to withstand harsh environments, they provide high mating cycles and excellent durability, including salt spray resistance up to 500 hours. Ideal for automotive, factory automation, robotics, security, telecommunications, and measurement systems, these connectors ensure high electrical performance, easy cable assembly, and versatility with protective options like cable glands and heat shrink. Certified to meet RoHS standards, they are the optimal solution for demanding industrial needs.
AMPHENOL INDUSTRIAL MB01TE1015PN575 Micro-B Connector Specifications:
- Shell Material: Aluminum
- Contact Material: Copper Alloy, Tin/Gold Plated
- Ingress Protection: IP54 with heat shrink in mated condition, IP67 with cable gland backshell in mated condition
- Operating Temperature Range: -40°C to 125°C
- Mating Cycles: 500 cycles
- Vibration and Shock Resistance: As per IEC standards
- Salt Spray Resistance: Up to 500 hours with Gray ZnNi plating
- Maximum Current: 3A for #22D contacts
- Test Voltage: AC 500V RMS
- Insulation Resistance: 1000 MΩ at 500V
- Contact Resistance: Max 22 mΩ
- Cable Range: 22 AWG (0.14 mm²) to 26 AWG (0.14 mm²)
- Mounting Options: Inline, 2-hole flange
- Shell Styles: Receptacles and plugs with various sizes
- Keying: 5 Key/keyway options for cross-plugging prevention
- Standards: RoHS compliant, UL certifications in process
Buy the Amphenol MB01TE1015PN575 – Reliable Micro-B for Industrial Applications
Order Amphenol Micro-B Connectors online today and enhance your industrial automation, robotics, or telecommunications applications with high durability, high mating cycles, and excellent EMI shielding. Designed for demanding environments, these lightweight aluminum shell connectors feature a quick quarter-turn bayonet coupling, multiple mounting options, and RoHS compliance. Suitable for automotive, factory automation, security, and test equipment, they ensure reliable electrical performance and easy cable assembly, making them the ideal choice for modern industrial solutions. Buy now for fast delivery and top-quality performance.
Buy Amphenol Micro-B connectors and contacts now and experience unmatched reliability and high-density performance for industrial automation, robotics, and telecom systems.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB01TE1015PN575?
You can click on the BUY or RFQ button to purchase MB01TE1015PN575 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB01TE1015PN575?
You can download the MB01TE1015PN575 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB01TE1015PN575?
AMPHENOL INDUSTRIAL
