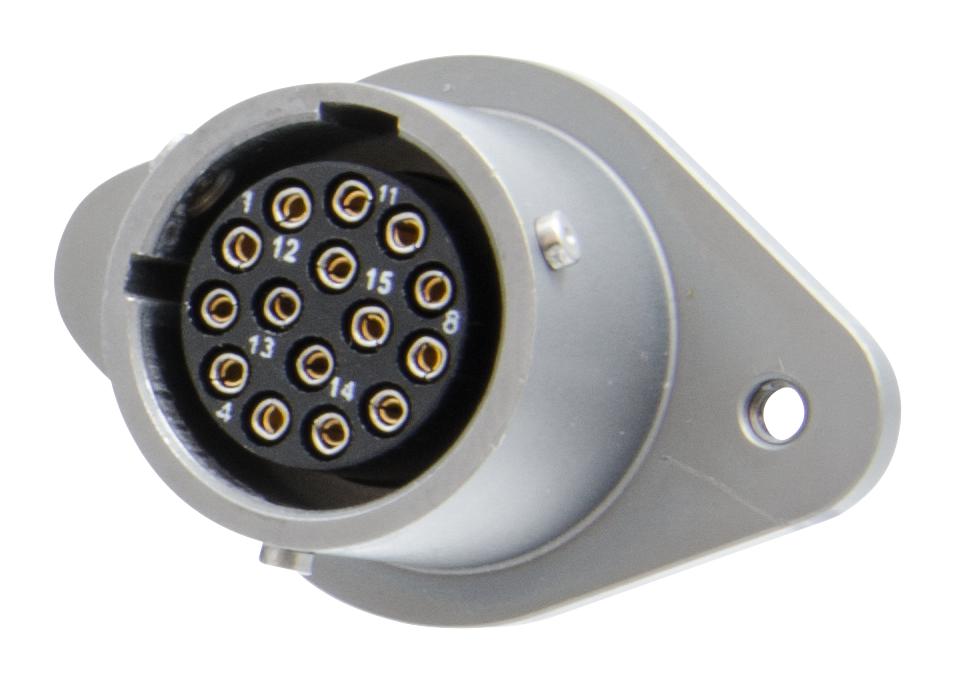

AMPHENOL INDUSTRIAL MB03HE1015SN072 Micro-B Connector
Amphenol's Micro-B Series Connectors and Contacts are designed for modern electronic equipment, offering a compact, lightweight, and high-density solution. These rugged connectors provide excellent shell-to-shell EMI shielding, high reliability, and high mating cycle durability. Constructed with an aluminum shell and featuring a robust triple bayonet coupling (quarter-turn) mechanism along with stamped and formed contacts, they ensure secure connections and superior electrical performance. An internal EMI grounding spring enhances shell-to-shell conductivity. Suitable for various mounting options, including in-line and two-hole flange mounts, they are ideal for industrial and automation applications, including automotive, factory automation, instrumentation, robotics, security, telecommunications, and test and measurement systems.
AMPHENOL INDUSTRIAL MB03HE1015SN072 Micro-B Connector Specifications:
- Shell Material: Aluminum
- Contact Plating: Tin/Gold Plated
- Insert Material: Plastic (PA66)
- Operating Temperature Range: -40°C to 125°C
- Ingress Protection: IP67 in mated condition with cable gland backshell
- Mating Cycles: 500
- Test Current: 3A per #22D contact
- Recommended Operating Voltage: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 1000 MΩ at 500V
- Contact Resistance: Max 22 mΩ
- Vibration: Compliant with IEC standards
- Salt Spray Resistance: 500 hours with Gray ZnNi coating
- Shock Resistance: High vibration and shock resistant
- Mounting Options: In-line, 2-hole flange
- Shell Sizes: 08, 09, 10
- Keying: 5 key/keyway configurations
- Protection Level: IP67 with cable gland
- Connector Type: Circular, high-density, rugged
- Application: Industrial automation, transportation, robotics, instrumentation
Buy the Amphenol MB03HE1015SN072 – Reliable Circular Connectors for Industrial Applications
Discover the high-performance Micro-B Connector from Amphenol, designed for industrial automation, robotics, and harsh environments. Engineered with an aluminum shell, quarter-turn bayonet coupling, and high-density insert pattern, this rugged connector delivers secure shell-to-shell EMI shielding and high mating cycle durability. Its compact, lightweight design fits tight spaces while offering IP67 protection when mated with the cable gland backshell. Ideal for automation, automotive, and measurement systems, it ensures reliable electrical connections with excellent vibration and shock resistance, meeting industry standards and RoHS compliance. Buy online today for quality and performance.
Buy Amphenol Micro-B Connectors now and experience unmatched reliability, high durability, and superior electrical performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB03HE1015SN072?
You can click on the BUY or RFQ button to purchase MB03HE1015SN072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB03HE1015SN072?
You can download the MB03HE1015SN072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB03HE1015SN072?
AMPHENOL INDUSTRIAL
