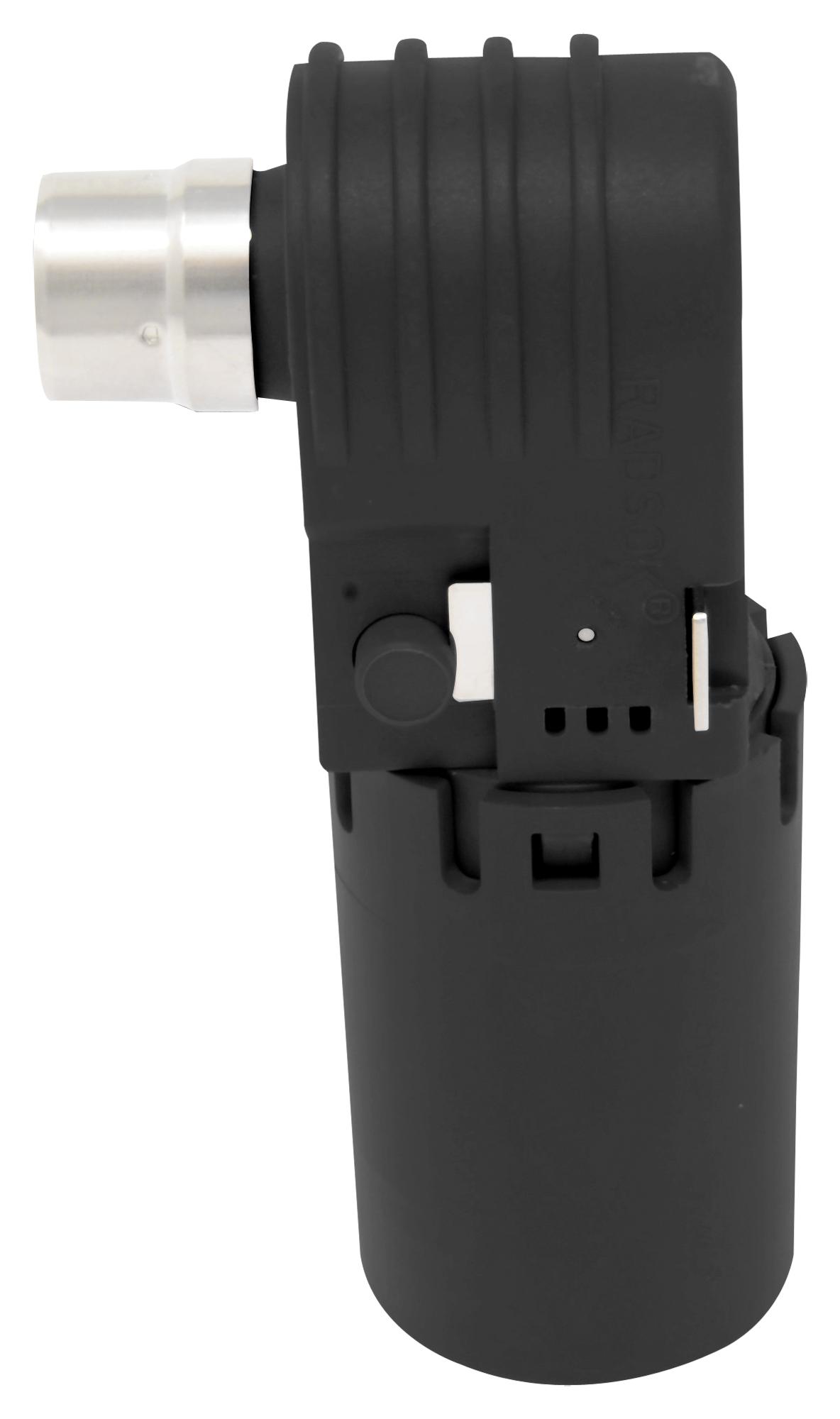

AMPHENOL INDUSTRIAL SLPPB70BSB2EH Electrical Connectors
The SurLok Plus™ compression lugs from Amphenol Industrial are high-performance, environmentally sealed connectors engineered for secure electrical connections in demanding environments. Featuring the latest R4 RADSOK® technology, these field-installable lugs support crimp, screw, and busbar terminations without special tools. They are rated up to 400A and 1000VAC/DC, with contact sizes from 5.7mm to 10.3mm. Suitable for electric vehicles, energy storage, rail transit, automation, and heavy machinery, they offer options like EMI shielding, HVIL, and various keyways, all tested to meet UL94 V-0 standards and operate between -40°C to 125°C.
AMPHENOL INDUSTRIAL SLPPB70BSB2EH Electrical Connectors Specifications:
- Flammability: UL 94 V-0
- Current Rating: Up to 400A
- Operating Voltage: 1000V AC/DC
- Operating Temp: -40°C to 125°C
- Contact Size: 5.7mm (120A), 8.0mm (200A), 10.3mm (350A)
- Connection Types: Crimp, screw, busbar
- Shell Types: Right angle, straight plug, straight receptacle
- IP Rating: IP 67
- Durability: Supports repeated mating with keyways (60°, 90°, 120°, 150°, 180°, 270°)
- Materials: High tensile strength metal with environmental sealing
- Compliance: UL 94 V-0 flammability standard
- Temperature Range: -40°C to 125°C
- Application Fields: Electric vehicles, energy storage, rail transit, automation, heavy equipment
Buy the Amphenol Series SurLok Plus Electrical Connectors: SLPPB70BSB2EH
Experience reliable, high-capacity electrical connections with the SurLok Plus™ connectors from Amphenol Industrial. Designed for demanding industrial applications, these connectors support up to 400A and 1000VAC/DC, with multiple termination options including crimp, screw, and busbar. Features like environmental sealing, keyway prevent incorrect mating, and compliance with UL94 V-0 standards ensure safety and durability. Ideal for electric vehicles, energy storage, rail transit, automation, and heavy machinery, they operate across a wide temperature range of -40°C to 125°C, offering advanced safety and performance features for long-lasting service life.
Get Amphenol SurLok Plus SLPPB70BSB2EH today—built for high current, secure connections in energy storage and automation projects.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL SLPPB70BSB2EH?
You can click on the BUY or RFQ button to purchase SLPPB70BSB2EH from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part SLPPB70BSB2EH?
You can download the SLPPB70BSB2EH datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of SLPPB70BSB2EH?
AMPHENOL INDUSTRIAL
