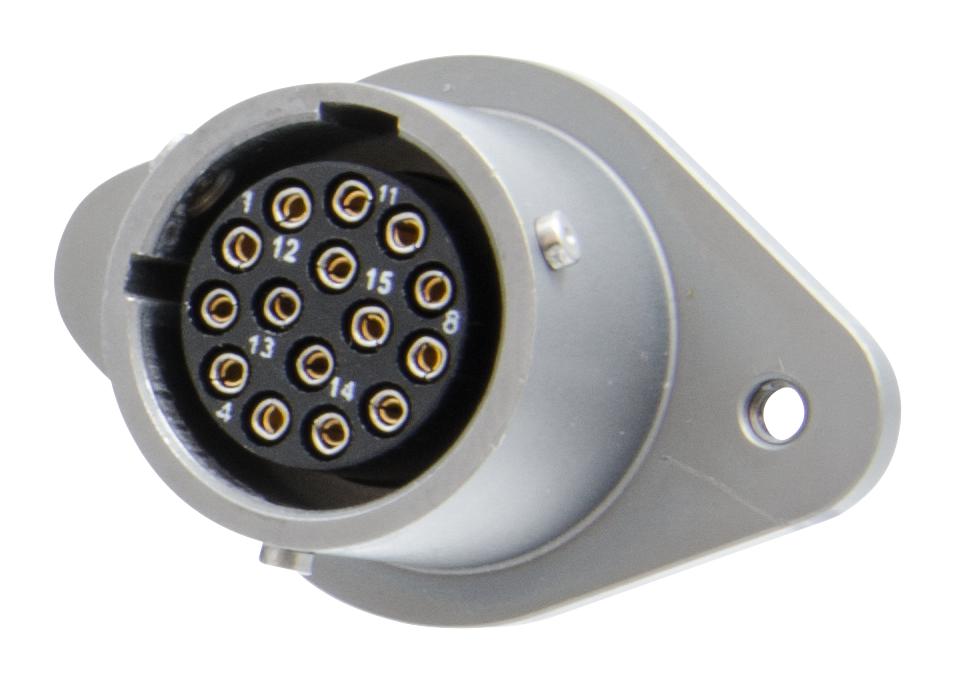

AMPHENOL INDUSTRIAL MB03TA0807SN574 Micro-B Connector
Amphenol's Micro-B Series Connectors and Contacts are designed for modern electronic equipment requiring a compact, lightweight, and high-density connector solution. These rugged connectors feature an aluminum shell with a robust triple bayonet coupling mechanism (1/4 turn) for secure mating and high durability. They offer excellent shell-to-shell electrical shielding against EMI, ensuring high reliability in demanding applications. The connectors include stamped and formed contacts, an internal EMI grounding spring for optimal conductivity, and various mounting options such as in-line or two-hole flange mounts. They are suitable for a wide range of industrial and electronic applications, including automotive, factory automation, instrumentation, robotics, security, telecommunications, and test and measurement systems.
AMPHENOL INDUSTRIAL MB03TA0807SN574 Micro-B Connector Specifications:
- Shell Material: Aluminum
- Retaining Ring: Stainless steel
- Insert Material: Plastic (PA66)
- Contact Plating: Tin/Gold Plated
- Operating Temperature Range: -40°C to 125°C
- Ingress Protection: IP67 with cable gland, IP54 in mated condition without gland
- Test Current: 3A for #22D contact
- Recommended Operating Voltage: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 1000 MΩ at 500V
- Contact Resistance: ≤22mΩ
- Mating Cycles: 500
- Vibration Resistance: According to IEC 364-28D
- Salt Spray Resistance: 500 hours with Gray ZnNi plating
- Wire Size: 22AWG, 0.14-0.30 mm²
- Connectors: In-line, flange mount options, bayonet coupling
- Standards: RoHS compliant, UL certification in process
Buy the Buy Amphenol Micro-B Connector Part Number MB03TA0807SN574 Online
Purchase the Amphenol Micro-B Connector online and enjoy fast delivery of a high-quality, compact, and reliable connection solution. Perfect for industrial, automotive, automation, and electronics projects, this connector offers robust aluminum construction, a secure 1/4 turn bayonet coupling, and excellent EMI shielding. Its high durability and 500 mating cycle capability make it suitable for challenging environments. Whether for testing, instrumentation, or automation systems, buying online guarantees you access to the latest models, technical support, and competitive pricing, ensuring your project stays on track with dependable connectivity.
Order your Amphenol Series Micro-B MB03TA0807SN574 rugged connector today and ensure reliable, high-performance connections in demanding environments.
