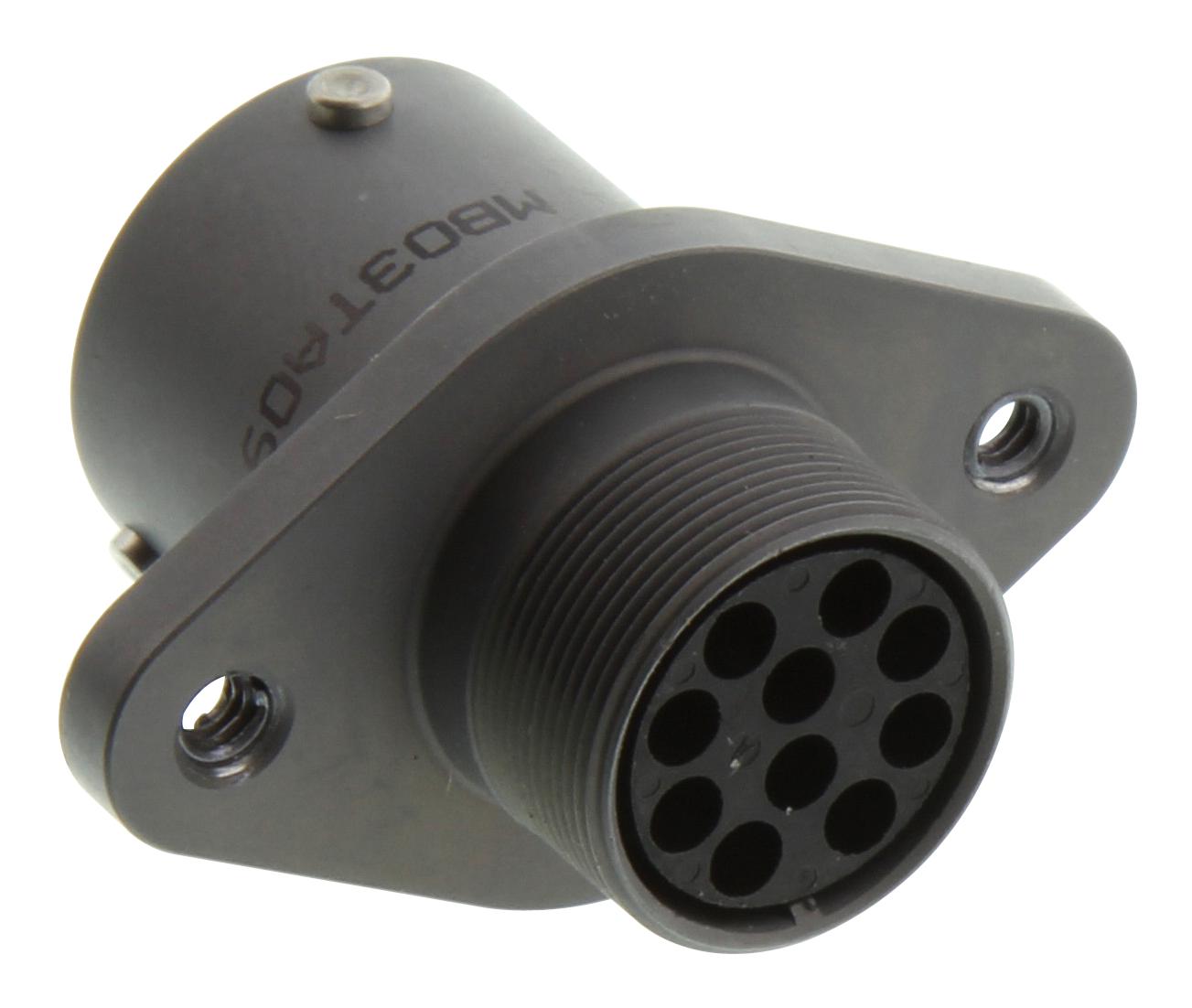

AMPHENOL INDUSTRIAL MB03TA0910PN072 Micro-B Connector
Amphenol's Micro-B Series Connectors and Contacts are designed for modern electrical equipment requiring a compact, lightweight, high-density interface with excellent EMI shielding and reliable performance. Constructed with an aluminum shell and featuring a robust triple bayonet coupling mechanism for easy mating, these connectors support high mating cycles and provide exceptional shell-to-shell electrical bonding for EMI protection. The product incorporates stamped and formed contacts and an internal EMI grounding spring to ensure superior conductivity. Multiple mounting options, including in-line and flange configurations, make these connectors suitable for various industrial applications such as automotive systems, factory automation, instrumentation, robotics, security, telecommunications, and test and measurement equipment.
AMPHENOL INDUSTRIAL MB03TA0910PN072 Micro-B Connector Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic (PA66)
- Contact Plating: Tin/Gold Plated
- Mating Cycles: 500 Cycles
- Operating Temperature Range: -40°C to 125°C
- Ingress Protection: IP67 (with cable gland and backshell)
- Contact Size: 22D
- Current Rating: 3A
- Test Voltage: AC 500V RMS
- Recommended Operating Voltage: AC 250V RMS
- Temperature Range: -40°C to 125°C
- Vibration: In accordance with IEC-364-28D
- Salt Spray Resistance: 500H with Gray ZnNi Plating
- Shell Options: 01H/01T/03H/03A, O61/06H
- Mounting Options: In-line, flange mount
- Number of Contacts: 7, 10, or 15 depending on insert arrangement
- Keying: 5 Key/keyway
- Sealing: IP67 in mated condition with backshell
Buy the Amphenol MB03TA0910PN072 – Reliable Industrial Connectors for Harsh Environments
Secure your high-performance industrial connections with the compact and durable Micro-B Connector series from Amphenol. Designed for tough environments, these connectors feature a lightweight aluminum shell, a robust triple bayonet coupling for quick mating, and excellent EMI shielding. Suitable for automation, automotive, and instrumentation applications, they offer up to 500 mating cycles, IP67 protection when assembled with the cable gland and backshell, and high reliability in demanding conditions. Order online now to ensure reliable, high-density electrical connections for your industrial projects.
Order your Amphenol Series MB03TA0910PN072 industrial connector today and give your projects the dependable quality they deserve with high-density, rugged design.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB03TA0910PN072?
You can click on the BUY or RFQ button to purchase MB03TA0910PN072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB03TA0910PN072?
You can download the MB03TA0910PN072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB03TA0910PN072?
AMPHENOL INDUSTRIAL
