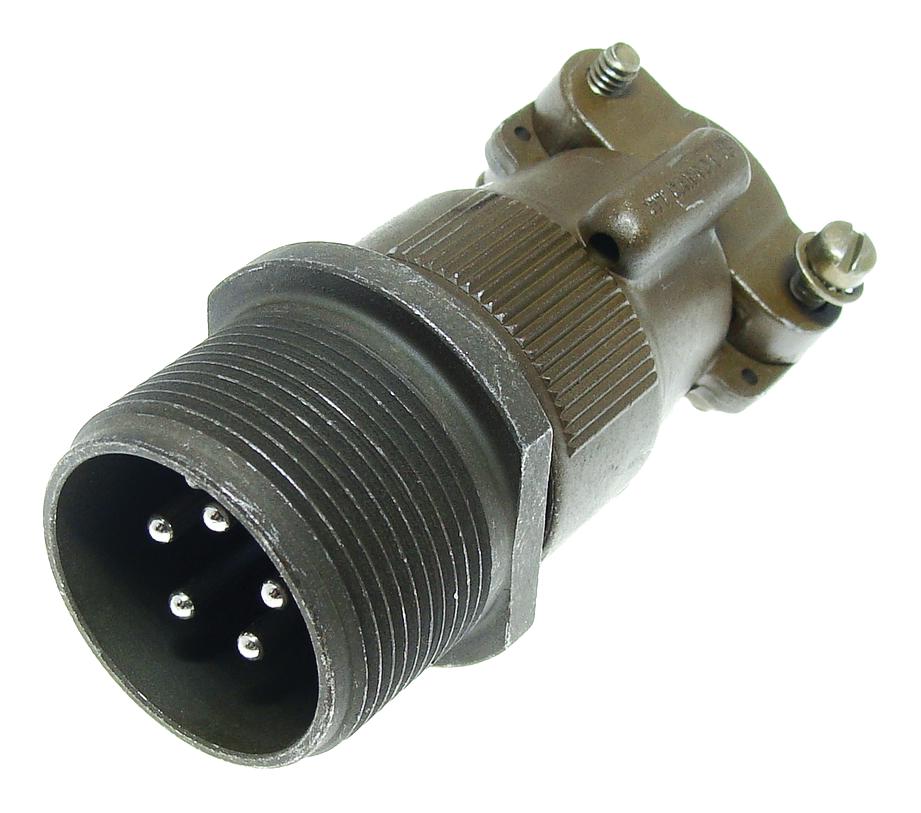

AMPHENOL INDUSTRIAL MS3101F14S2P Cylindrical Connector
The product is a cylindrical connector designed for robust electrical connections in harsh environments. It features a durable aluminum shell with a silver-plated copper alloy contact system, providing high corrosion resistance and excellent current capacity. The connector supports multiple insert arrangements with pin or socket contacts, including thermocouple options. It has threaded coupling with single key polarization, strain relief options, and is suitable for military and industrial applications requiring reliability under vibration, moisture, and pressure variations. Also available with special finishes and configurations for custom needs.
AMPHENOL INDUSTRIAL MS3101F14S2P Cylindrical Connector Specifications:
- Shell Material: Aluminum alloy with electrically conductive cadmium plated finish
- Contacts: Silver plated copper alloy, available in solder and crimp versions, sizes 16, 12, 8, 4
- Operating Voltage: To 3000 VAC RMS at sea level
- Thread Sizes: From 0.5000-28UNEF to 2.5000-16UN
- Insert Arrangements: Multiple configurations from 1 to 104 circuits, including thermocouple and coaxial options
- Threaded Coupling: Yes, with single key/keyway shell polarization
- Environmental Resistance: Class E/F options available, suitable for moisture, vibration, pressure extremes
- Options: Strain relief, special finishes, hermetic configurations, PCB contacts
- Operating Temperature: -55°C to +105°C
- Certifications: Meets MIL-DTL-5015 standards, UL Recognized
- Dimensions: Standard shells sizes range from 8 to 40, specific dimensions vary by shell and insert pattern
Buy the Amphenol Series MS3101F14S2P: Cylindrical Connector
Purchase the Amphenol cylindrical connector MS3101F14S2P online today for reliable, high-performance electrical connections in harsh environments. Designed with durable aluminum shells, silver-plated contacts, and versatile insert options, this connector ensures excellent conductivity, corrosion resistance, and environmental sealing. It features threaded coupling with single key polarization for secure mating and easy installation. Suitable for military, aerospace, and industrial applications, the MS3101F14S2P offers a comprehensive solution for demanding electrical systems needing durability, flexibility, and safety. Order now to ensure dependable connections in your critical projects!
Get Amphenol cylindrical connector MS3101F14S2P today—built for robust performance in demanding industrial and military environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MS3101F14S2P?
You can click on the BUY or RFQ button to purchase MS3101F14S2P from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MS3101F14S2P?
You can download the MS3101F14S2P datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MS3101F14S2P?
AMPHENOL INDUSTRIAL
