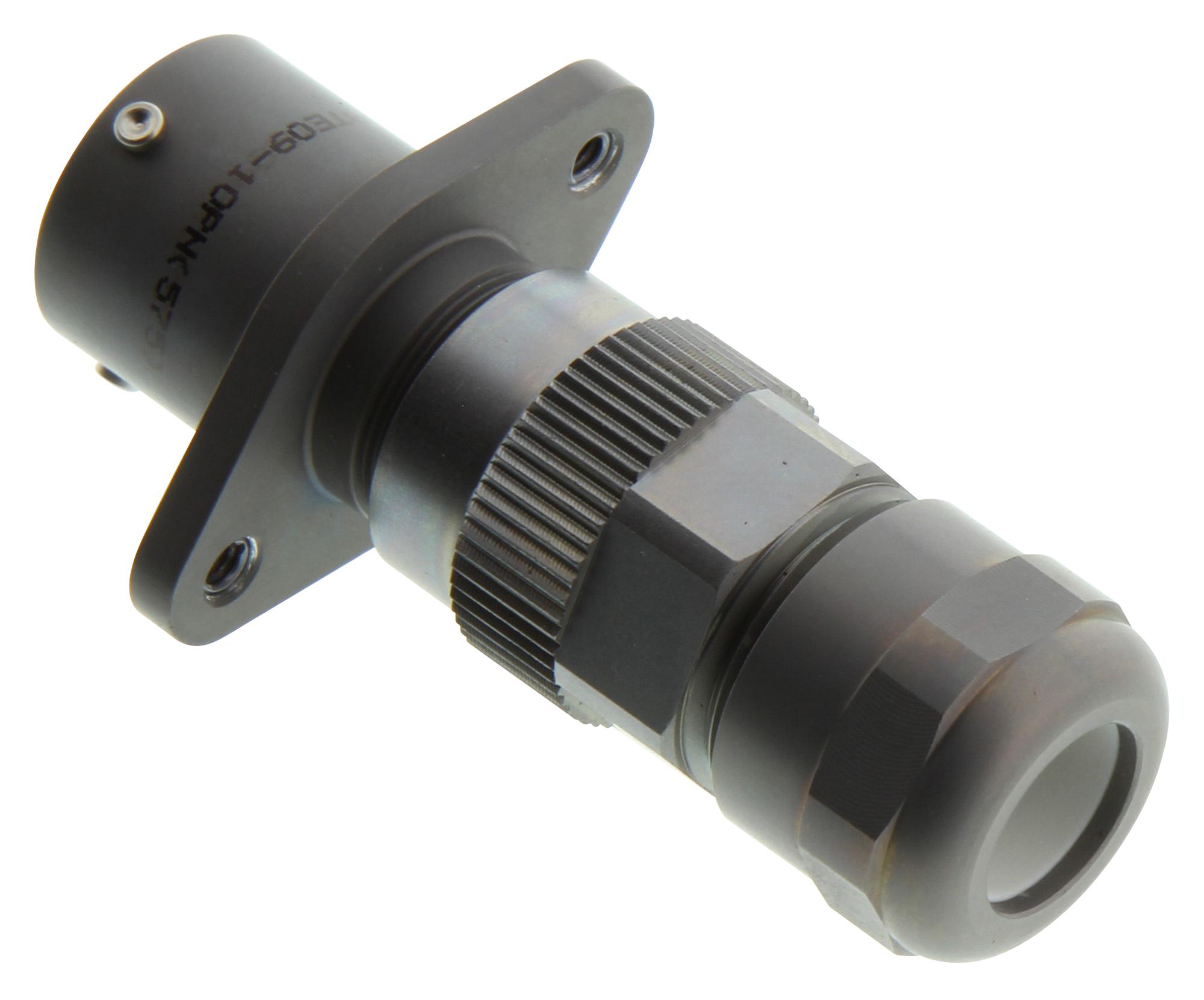

AMPHENOL INDUSTRIAL MB03TE0910PN575 Micro-B Connector
Amphenol's Micro-B Series Connectors and Contacts are designed for industrial and electronic applications requiring a compact, lightweight, and high-density connector solution. They feature an aluminum shell with a robust triple bayonet coupling (quarter-turn mating), stamped and formed contacts, and an internal EMI grounding spring that ensures excellent shell-to-shell conductivity for EMI shielding. The connectors support high mating cycles and various mounting options, including inline and two-hole flange mounts, making them suitable for automotive systems, factory automation, industrial equipment, instrumentation, robotics, security systems, telecommunications, and test and measurement applications.
AMPHENOL INDUSTRIAL MB03TE0910PN575 Micro-B Connector Specifications:
- Shell Material: Aluminum
- EMI-Ring: Copper Alloy
- Retaining Ring: Stainless steel
- Wave Ring: Stainless steel
- Insert Material: Plastic (PA66)
- Contact Material: Copper Alloy
- Contact Plating: Tin/Gold Plated
- Temperature Range: -40°C to 125°C
- Ingress Protection: IP54 with heat shrink; IP67 with cable gland backshell
- Test Current: 3A for #22D contact
- Operating Voltage: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 1000MΩ at 500V
- Contact Resistance: Max 22mΩ
- Mating Cycles: 500
- Vibration: IEC-364-28D
- Salt Spray Resistance: 500H with Gray ZnNi plating
Buy the Amphenol Series Micro-B Connector: MB03TE0910PN575
Order the Amphenol Micro-B Connector MB03TE0910PN575 now and experience a compact, lightweight, high-density solution perfect for industrial automation, telecommunication, robotics, and security systems. Designed with an aluminum shell and quarter-turn bayonet coupling, it offers exceptional durability, multiple mounting options, and high mating cycle life. With IP67 protection and gold-plated contacts, this connector ensures reliable performance in harsh environments. Buy online for fast delivery and seamless integration into your industrial and electronic projects.
Get Amphenol Micro-B connector MB03TE0910PN575 today—designed for high reliability, quick coupling, and rugged industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB03TE0910PN575?
You can click on the BUY or RFQ button to purchase MB03TE0910PN575 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB03TE0910PN575?
You can download the MB03TE0910PN575 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB03TE0910PN575?
AMPHENOL INDUSTRIAL
